Recirculation Actuator Connector End View

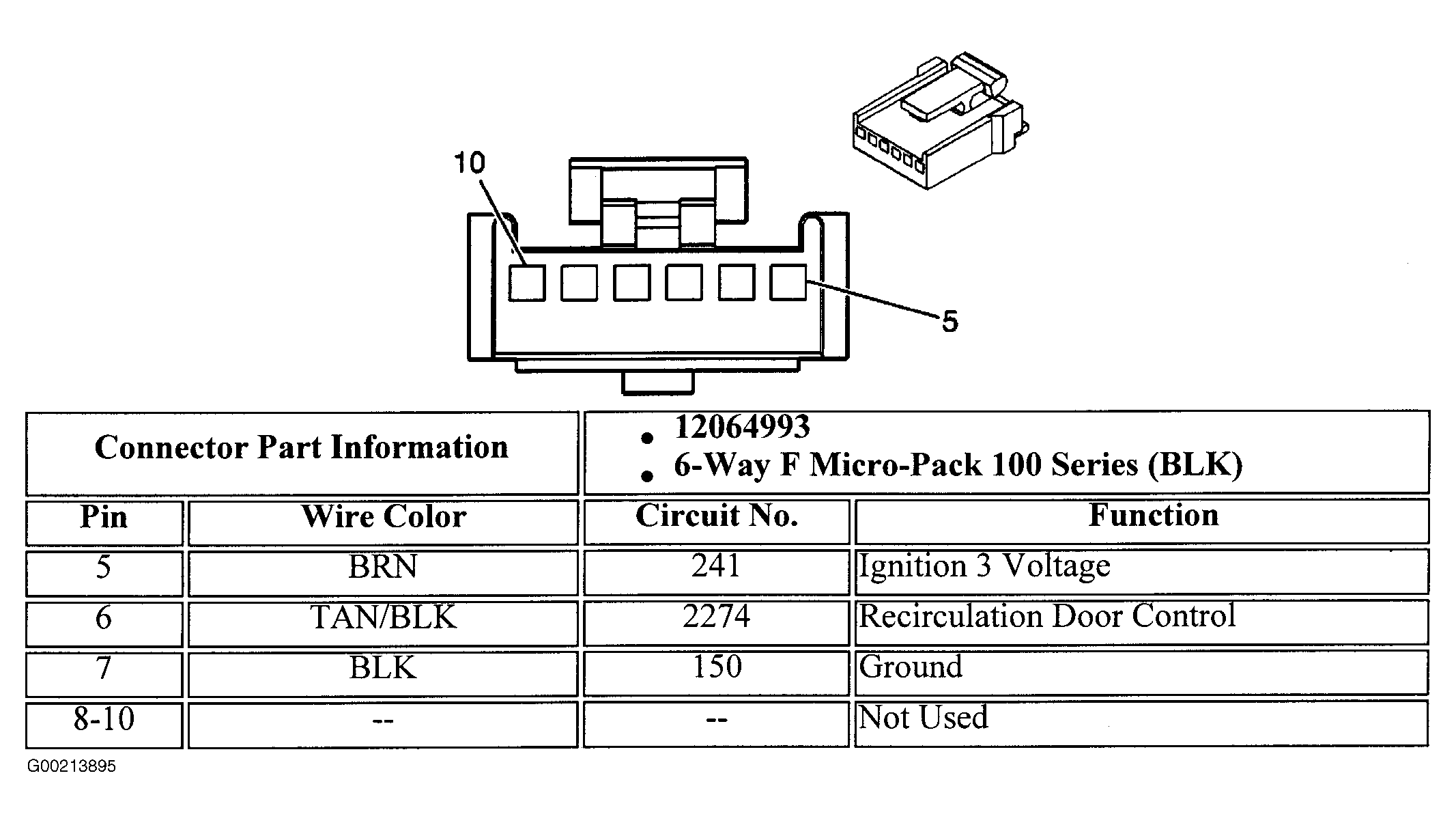

Fig 1: Recirculation Actuator Connector End View
G00213895Courtesy of GENERAL MOTORS CORP.


Fig 1: Recirculation Actuator Connector End View
G00213895Courtesy of GENERAL MOTORS CORP.
