Brake Fluid Level Switch Connector End View

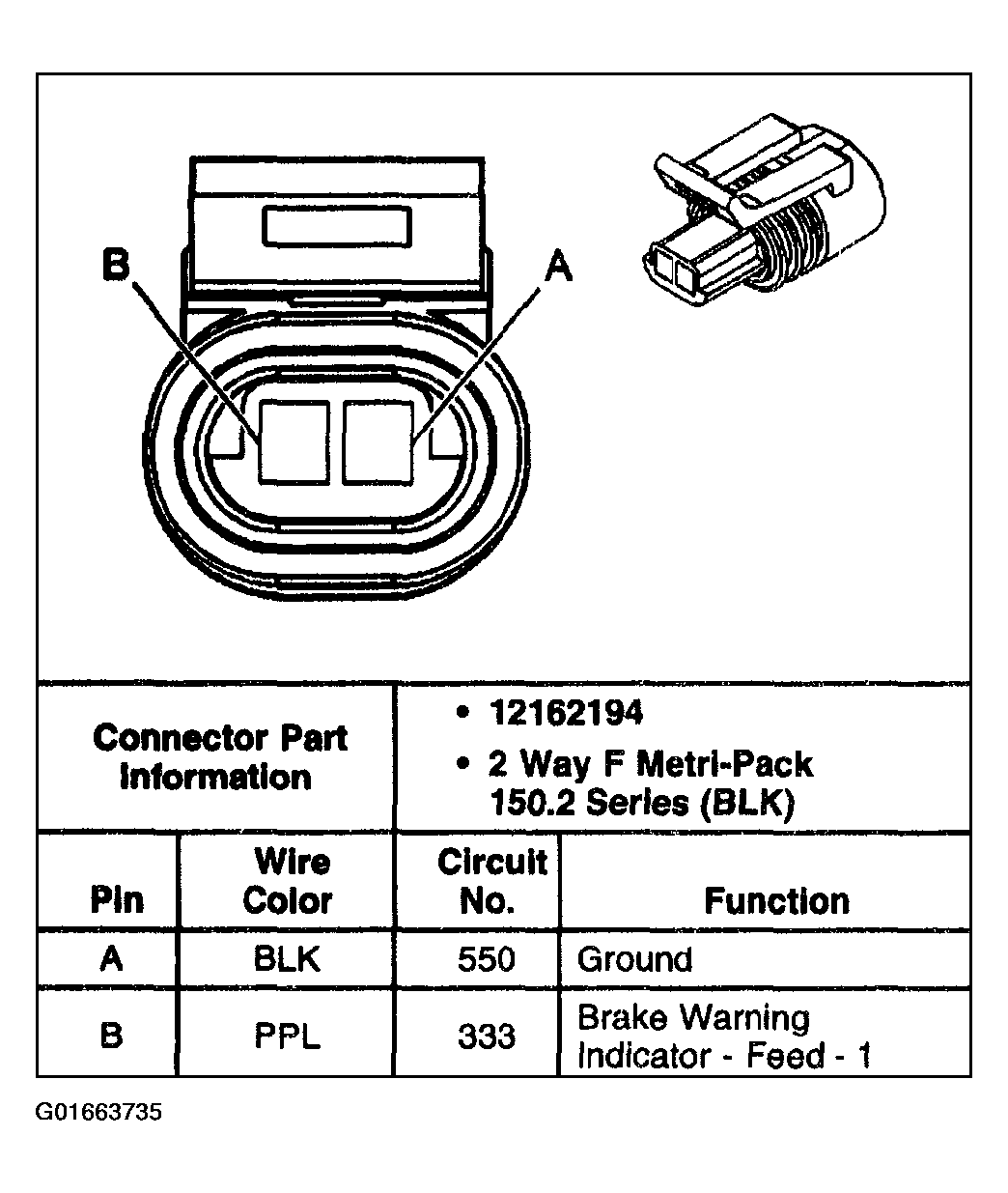

Fig 1: Brake Fluid Level Switch

G01663735

Courtesy of GENERAL MOTORS CORP.
