Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

To install the bulb, gently push until seated into the bulb socket.
To install the bulb socket to the marker lamp, turn the socket clockwise.

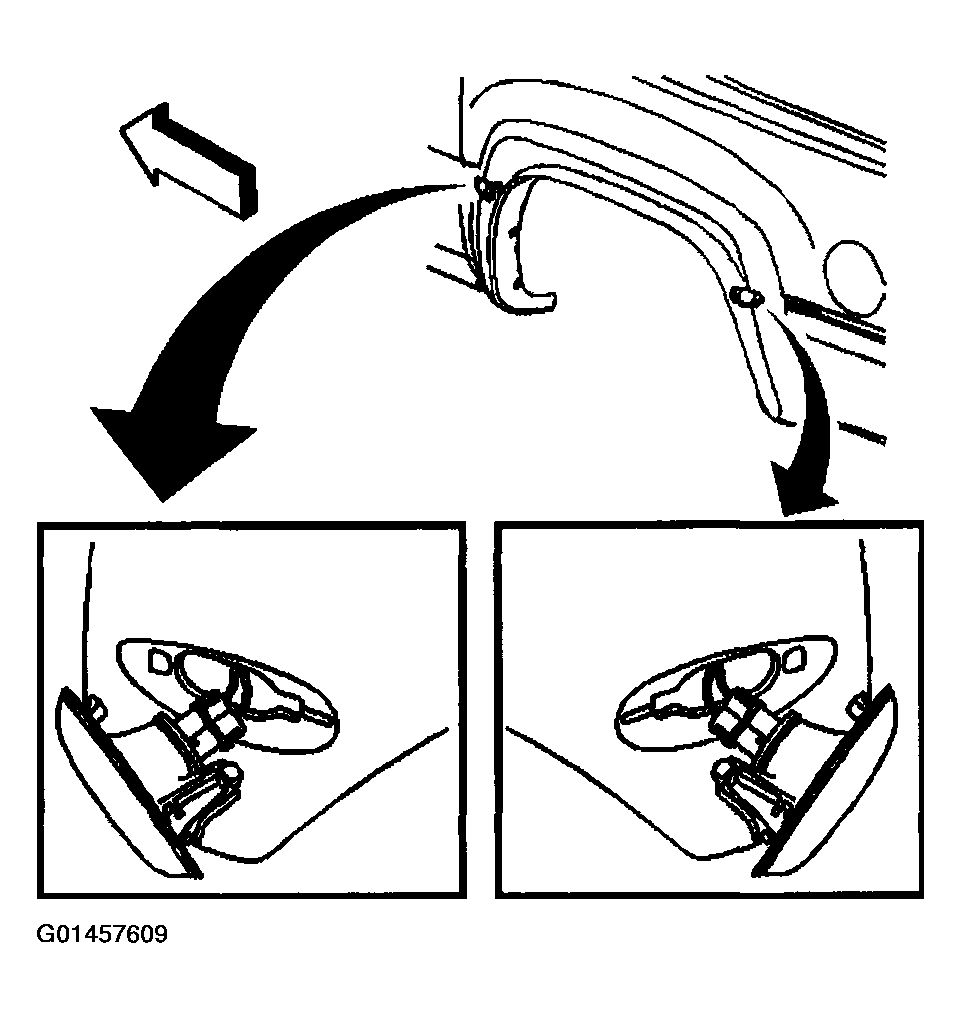

Fig 1: Installing Procedure Marker Lamp - Front Side (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

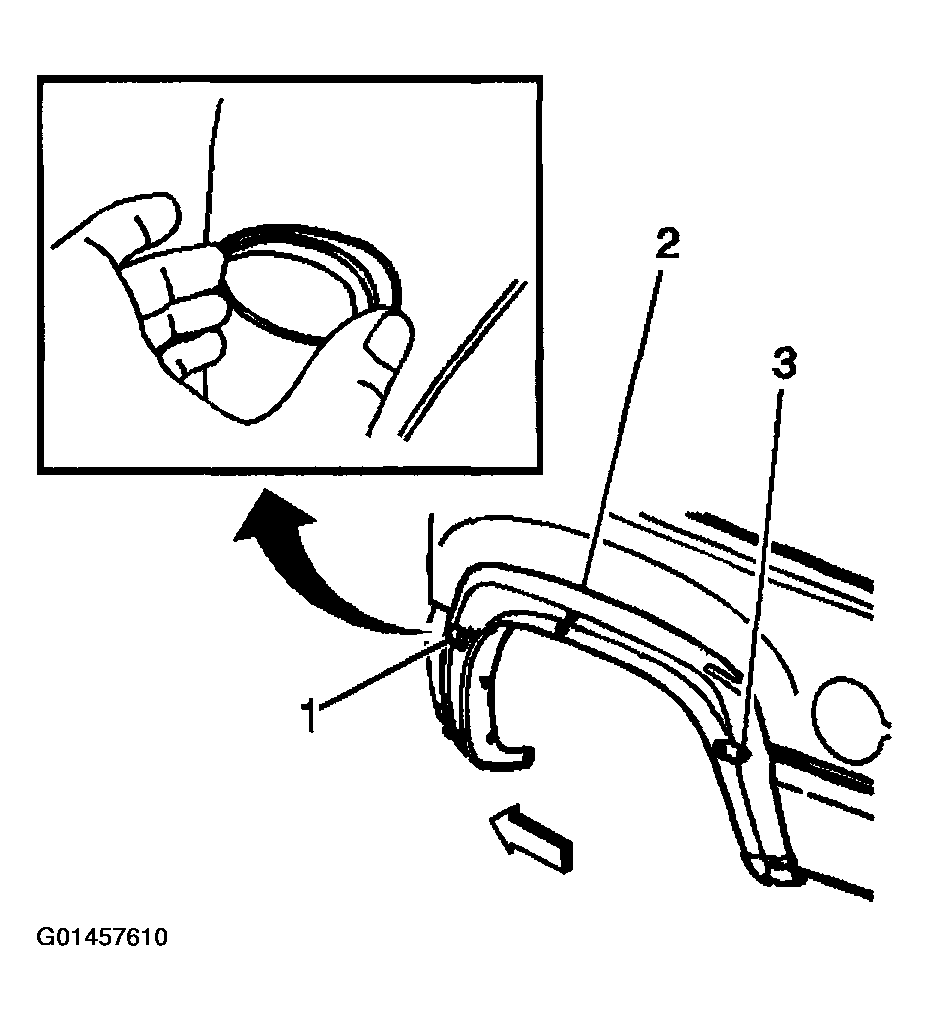

Insert the marker lamp (1,3) tab and then press to secure locking tab to flare.

Fig 2: Installing Procedure Marker Lamp - Front Side (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
