Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fog lamp switch into accessary switch housing.

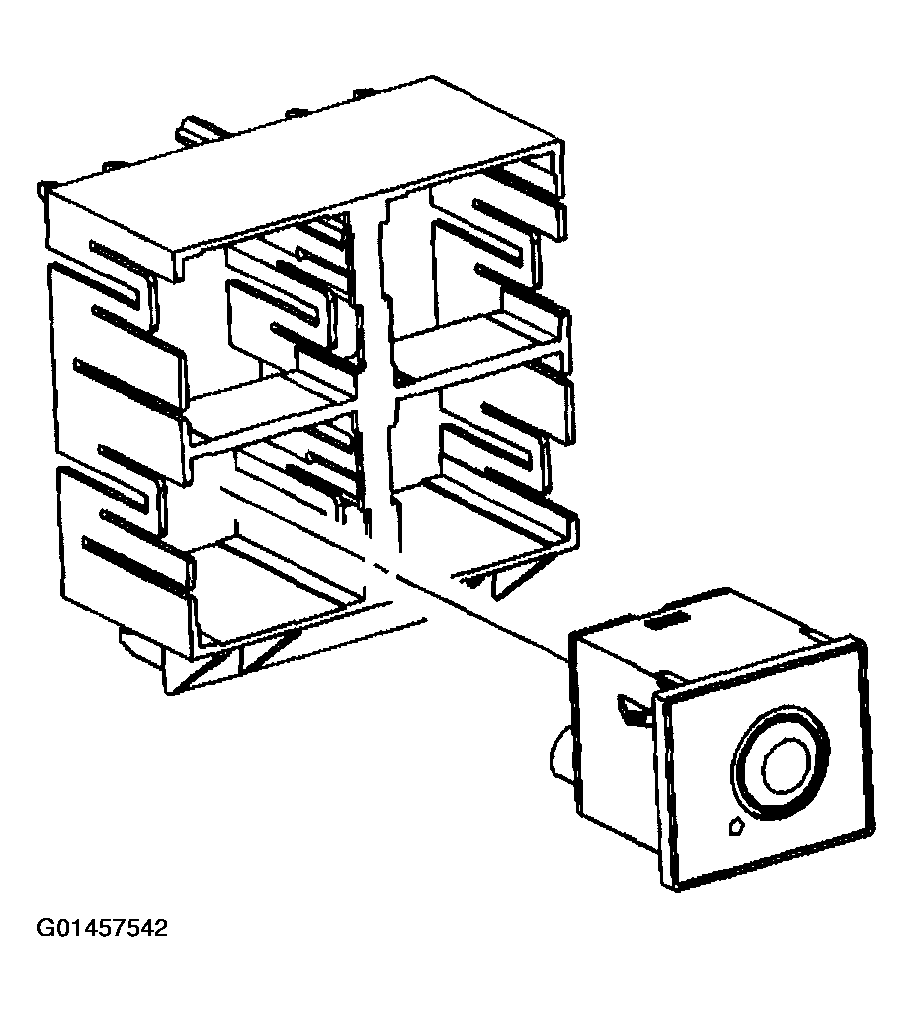

    2. Fig 1: Installing Fog Lamp Switch Into Accessary Switch Housing
    G01457542Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors.
  3. Install the accessary switch housing.
  4. Install the instrument panel bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in INSTRUMENT PANEL, GAGES, AND CONSOLE .
