Windshield Wiper Motor Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the windshield wiper motor connector.
Connect battery positive voltage to windshield wiper motor terminal A or B, and ground to terminal D, then verify that the windshield wipers operate as indicated.
- If the windshield wipers do not operate as indicated in the table, replace the windshield wiper motor.

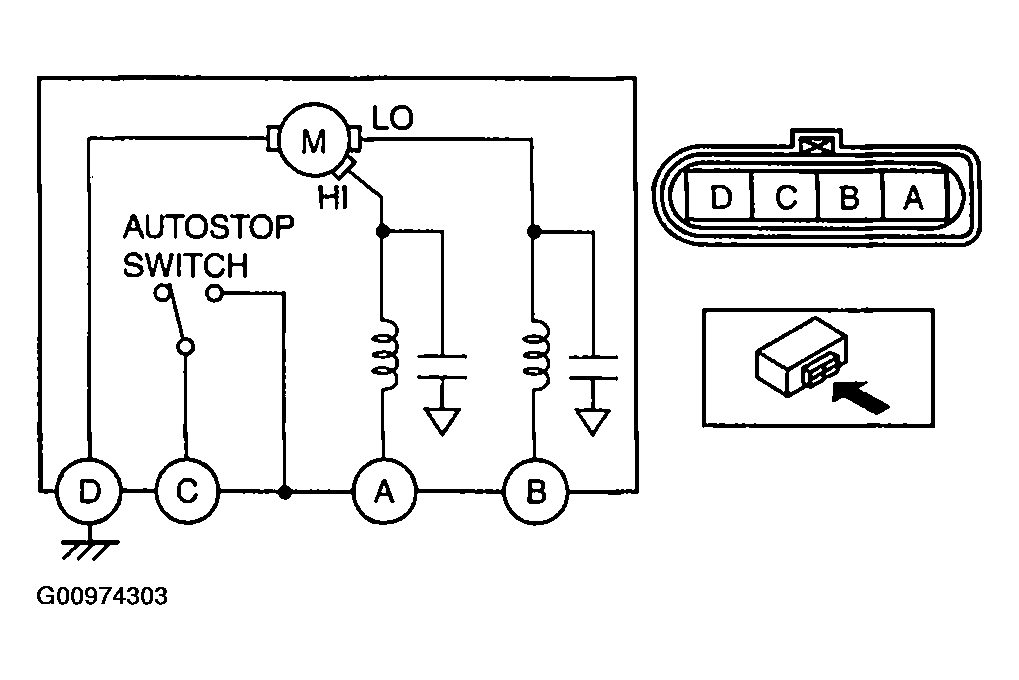

  Fig 1: Windshield Wiper Motor Circuit & Connector Terminal Identification
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Windshield Wiper Motor Terminals A & B Operational Conditions
  Courtesy of MAZDA MOTORS CORP.
