Trunk End Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fasteners.

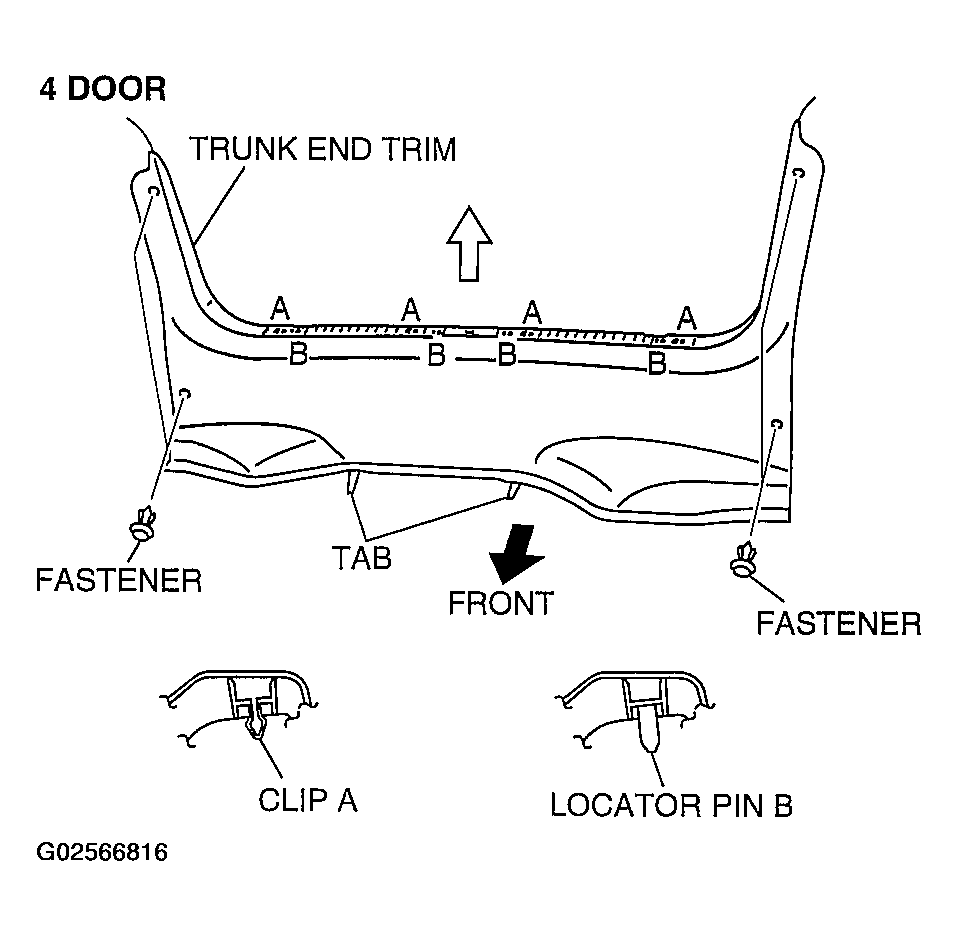

Fig 1: Locating Trunk End Trim Fasteners
Courtesy of MAZDA MOTORS CORP.
Pull the trunk end trim upward, then detach clips A, locator pins B and tabs.
Remove the trunk end trim.
Install in the reverse order of removal.

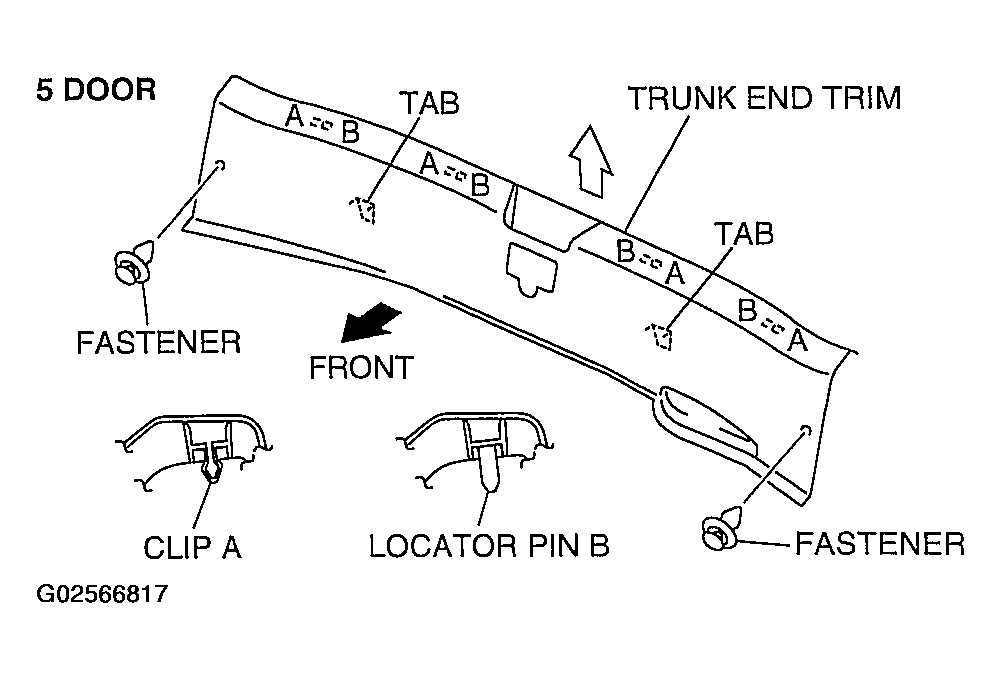

Fig 2: Locating Trunk End Trim Clips
Courtesy of MAZDA MOTORS CORP.
