Liftgate Upper Trim Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

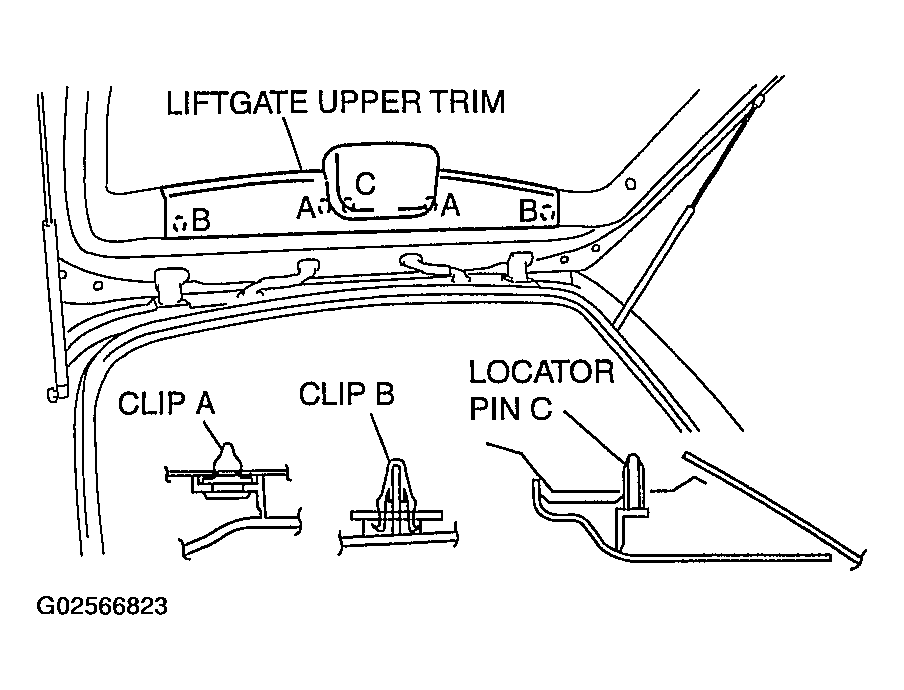

- Pull the liftgate upper trim outward, then detach the clips A, B and the locator pin C from the liftgate.
- Remove the liftgate upper trim.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
