Liftgate Adjustment

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Measure the gap and height difference between the liftgate and the body.
Loosen the liftgate hinge installation nuts and adjust the liftgate.
- If necessary, loosen the liftgate lock striker installation bolts and adjust the liftgate. (See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION .)
Standard clearance
- a: 5.0-7.0 mm {0.20-0.27 in}
- b: -2.0-0 mm {-0.07-0.in}
- c: 3.5-6.5 mm {0.14-0.25 in}
- d: -1.7-0.7 mm {-0.067-0.027 in}
- e: 4.0-8.0 mm {0.16-0.31 in}

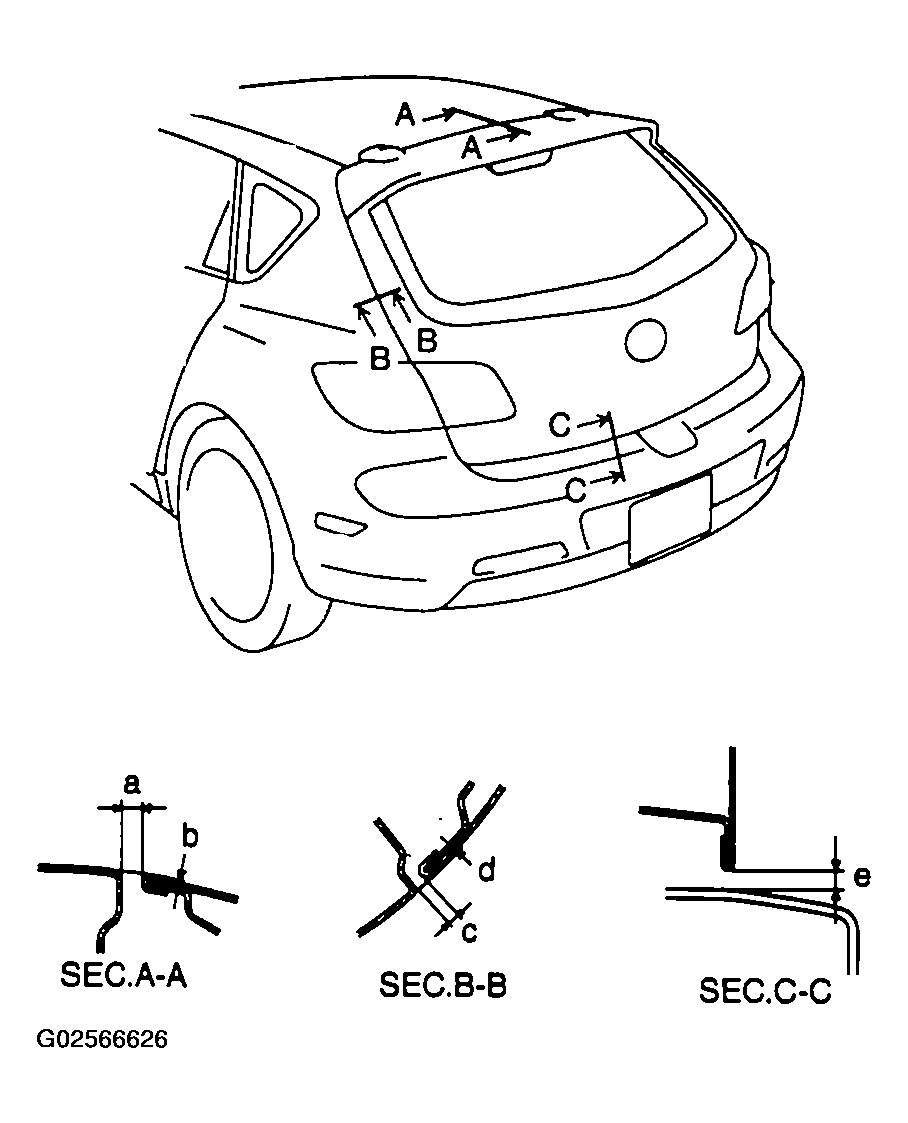

  Fig 1: Measuring Gap And Height Difference Between Liftgate And Body
  Courtesy of MAZDA MOTORS CORP.
Tighten the nuts or bolts.
