Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood latch (2) to the vehicle.
  2. Connect the hood latch cable to the hood latch (2).
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the hood latch bolts (3) to the to the support (1).

    Align the latch (2) with the reference mark.

    Tighten

    Tighten the bolts to 10 N.m (97 lb in).

  4. Close the hood.
  5. Adjust the hood if necessary. Refer to Hood Adjustment .

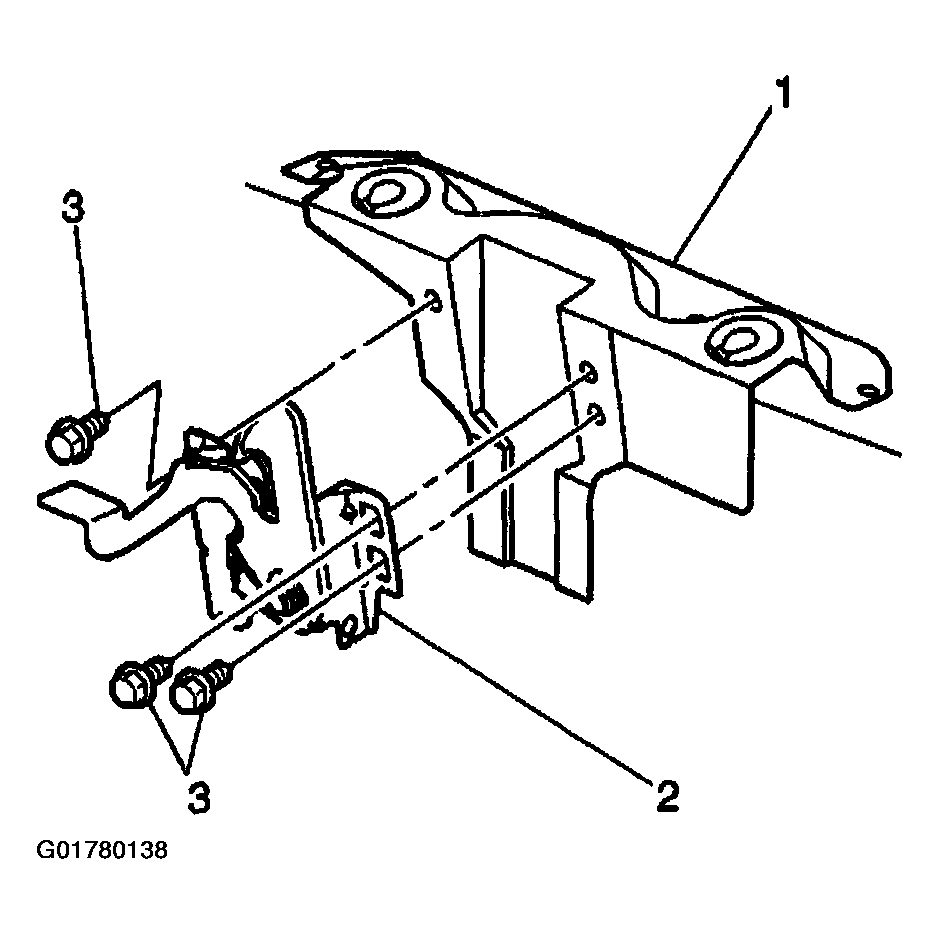

    Fig 1: Installing Hood Latch
    G01780138Courtesy of GENERAL MOTORS CORP.
