Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood hold-open rod bushing to the radiator support. Press in until fully seated.
  2. Push the hood hold-open rod (2) into the bushing.
  3. Install the retainer clip (1) to the radiator support. Press in until fully seated.
  4. Position the hood hold-open rod (2) in the retainer clip (1).
  5. Remove the hood support from the hood.
  6. Close the hood.

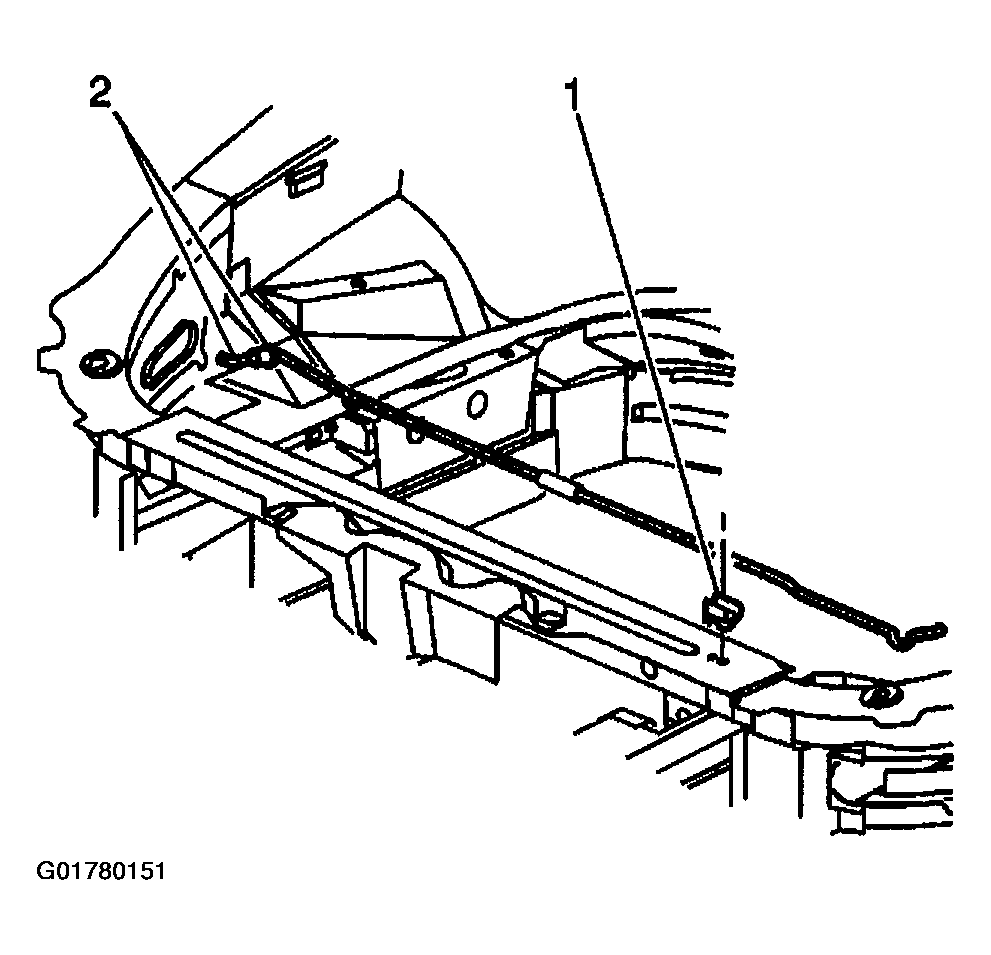

    Fig 1: Installing Hood Hold-Open Rod
    G01780151Courtesy of GENERAL MOTORS CORP.
