Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the battery tray to the battery support.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolts attaching the tray.

    Tighten

    Tighten the battery tray bolts to 31 N.m (23 lb ft).

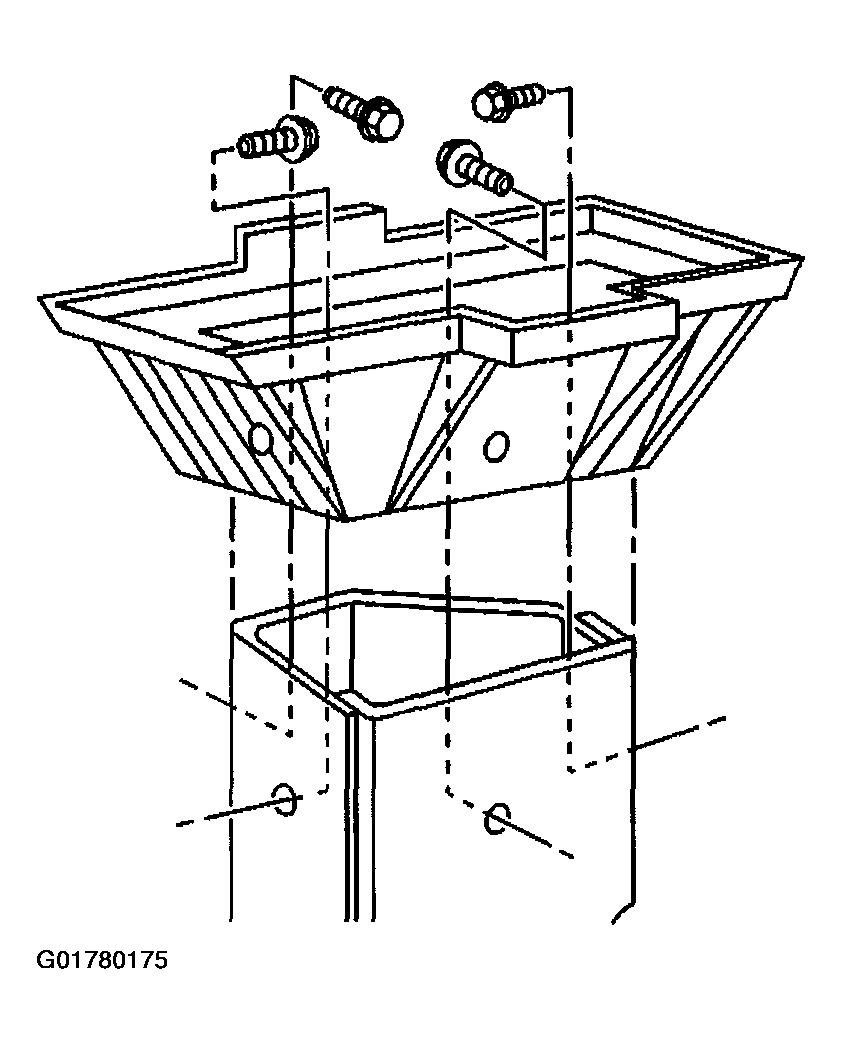

    3. Fig 1: Installing Battery Tray
    G01780175Courtesy of GENERAL MOTORS CORP.
  3. Install the battery. Refer to BATTERY REPLACEMENT .
