Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE .
  1. Position the wiper motor cover to the wiper motor.
  2. Install the wiper motor cover screws

    Tighten

    Tighten the 3 screws to 2 N.m (18 lb in).

  3. Connect the wiper motor electrical connector.
  4. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .

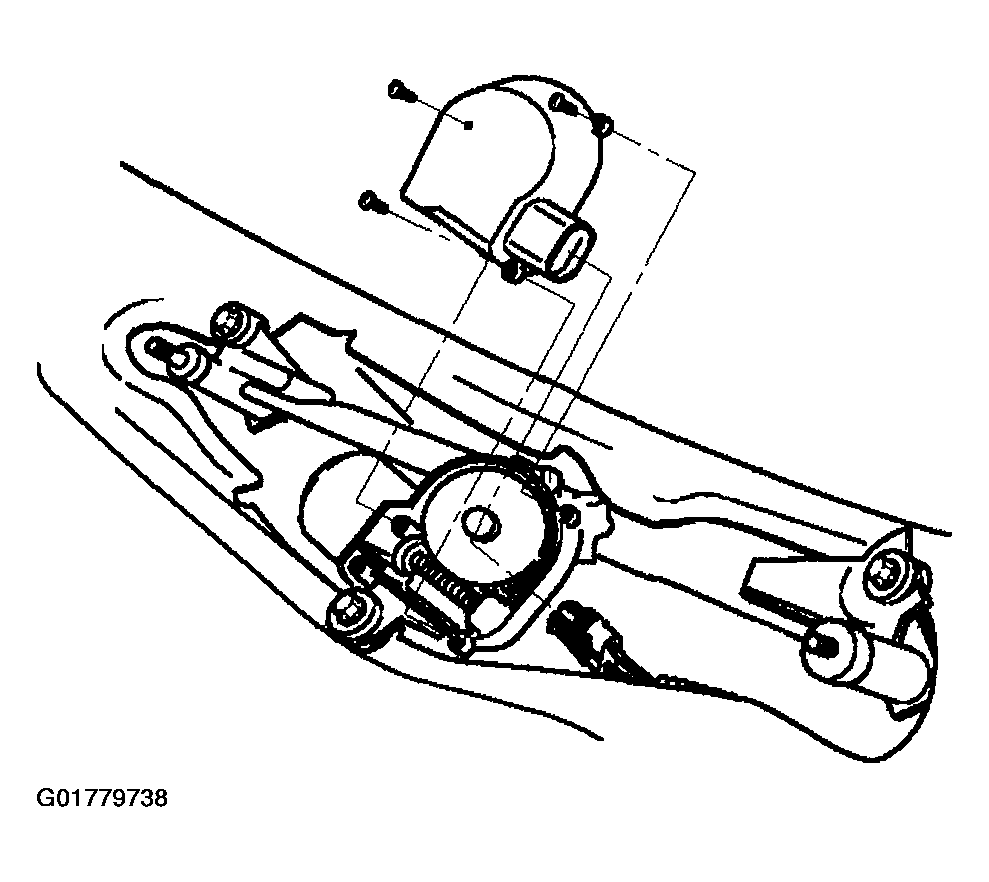

    Fig 1: Installing Wiper Motor Cover
    G01779738Courtesy of GENERAL MOTORS CORP.
