Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fan shroud to the radiator.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the condenser to radiator bolts.

    Tighten

    Tighten the bolts to 5 N.m (44 lb in).

  3. Install the radiator, fan, and condenser as an assembly to the vehicle.
  4. Install the lower radiator mounting panel.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  5. Install the condenser outlet to the evaporator line bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

  6. Install the lower radiator hose to the radiator.

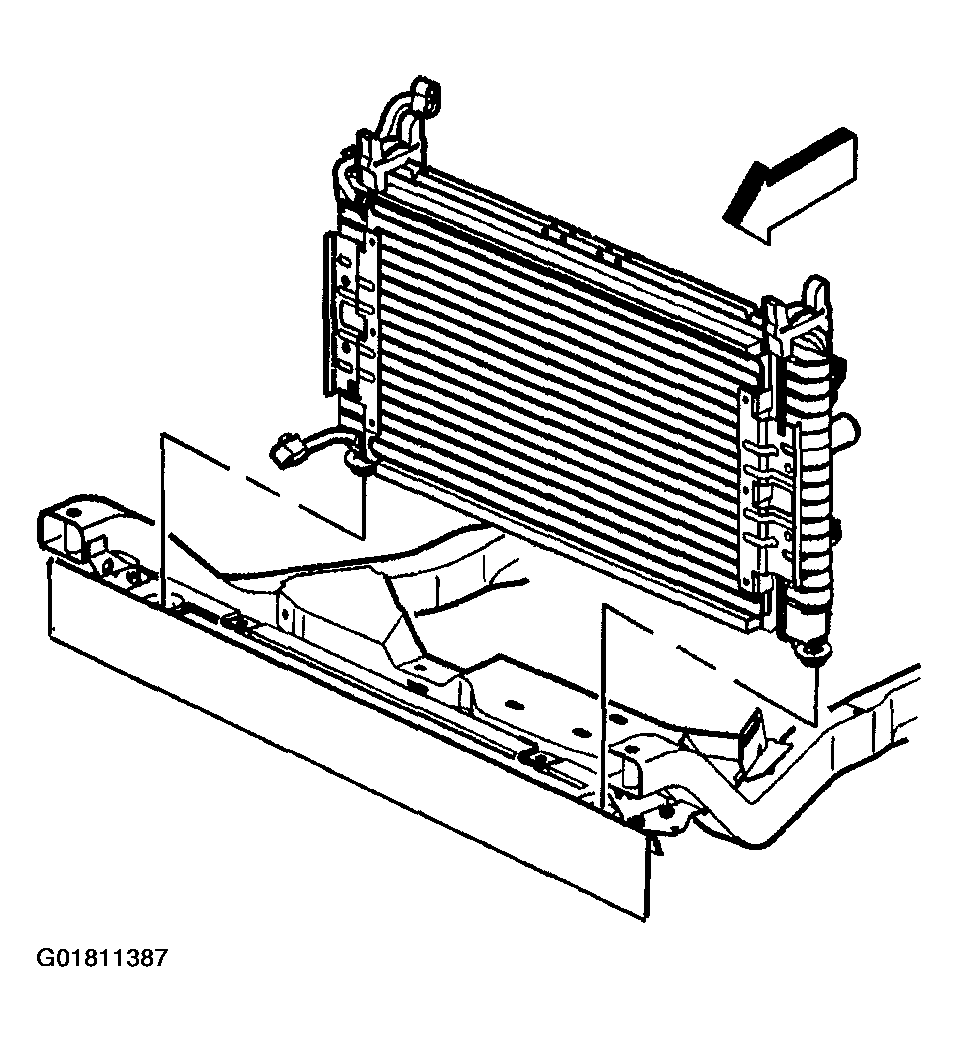

    Fig 1: Installing Radiator
    G01811387Courtesy of GENERAL MOTORS CORP.
  7. Install the lower closeout panel.
  8. Lower the vehicle.
  9. Install the cooling fan electrical connection.
  10. Install the lower transaxle oil cooler line.

    Tighten

    Tighten the fitting to 30 N.m (22 lb ft).

  11. Install the condenser inlet fitting to the discharge hose.

    Tighten

    Tighten the fitting to 25 N.m (18 lb ft).

  12. Install the coolant surge tank hose.
  13. Install the upper transaxle oil cooler line fitting.

    Tighten

    Tighten the fitting to 30 N.m (22 lb ft).

  14. Install the upper radiator hose.
  15. Refill the cooling system. Refer to Draining and Filling Cooling System  .
  16. Recharge the A/C system. Refer to RECOVERY/EVACUATION & RECHARGING .
  17. Install the battery tray.
  18. Install the battery. Refer to BATTERY REPLACEMENT .
