Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Return the Drain Cock to the radiator body.
  2. Use a 1/4 inch square drive or a 3/16 inch hex drive in order to close the radiator drain valve.
  3. Refill the cooling system. Refer to Draining and Filling Cooling System  .
  4. Lower the vehicle.

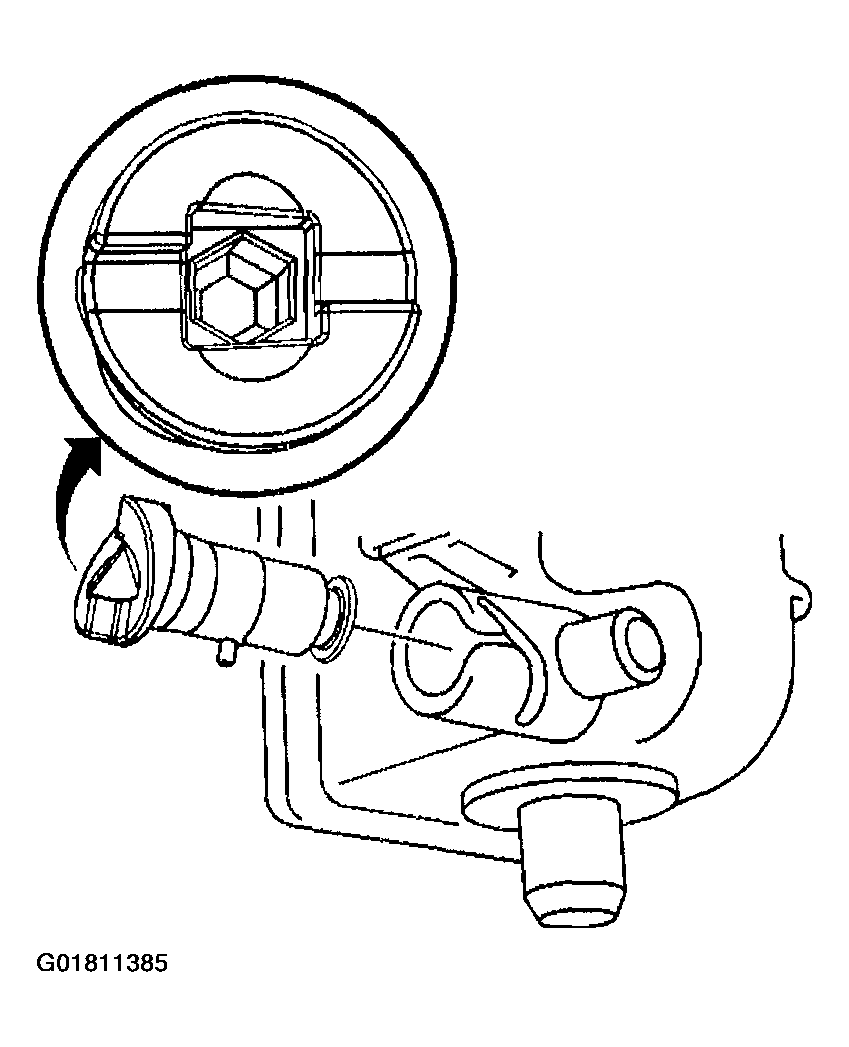

    Fig 1: Installing Drain Cock
    G01811385Courtesy of GENERAL MOTORS CORP.
