Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the rear compartment lamp (2).
  2. Connect the electrical connector (3) to the rear compartment lamp (2).
  3. Press the rear compartment lamp (2) into the rear shelf panel (1) in order to engage the tabs.
  4. Close the rear compartment.

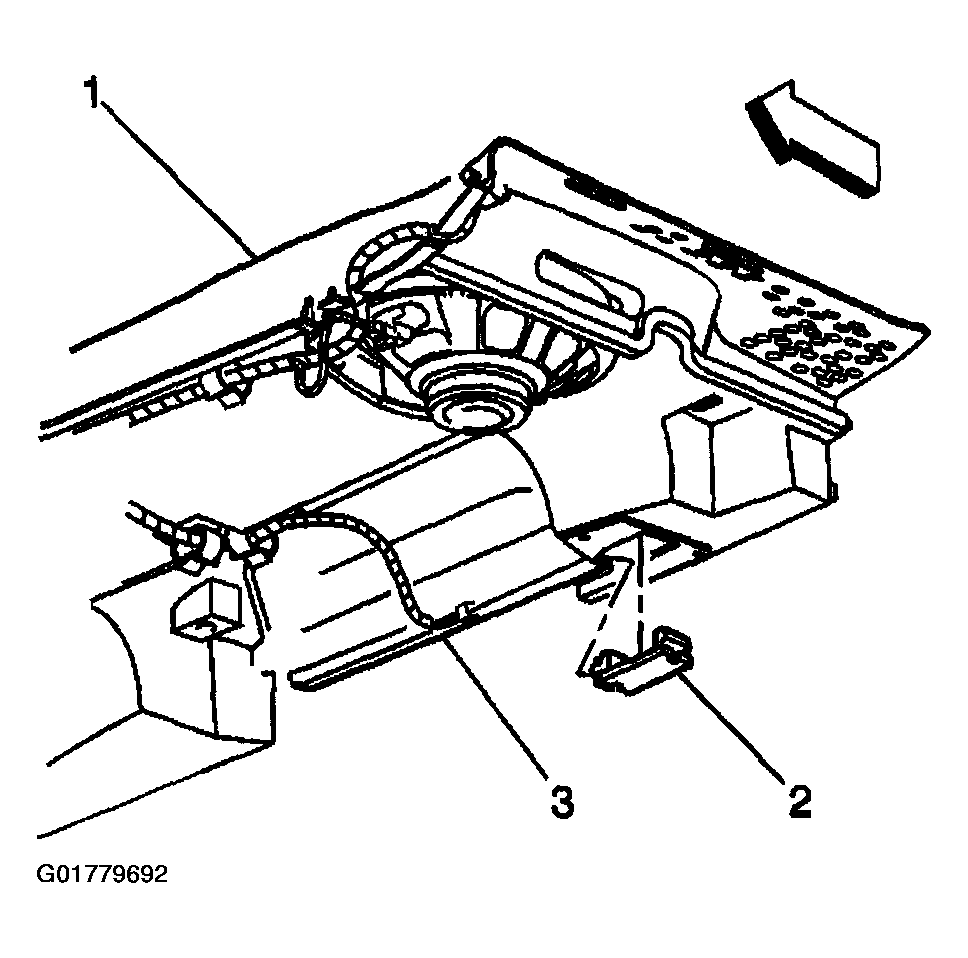

    Fig 1: Installing Rear Compartment Lamp
    G01779692Courtesy of GENERAL MOTORS CORP.
