Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
  2. Remove the lamp socket from the IP cluster by rotating the socket counterclockwise.
  3. Remove the bulb from the lamp socket.

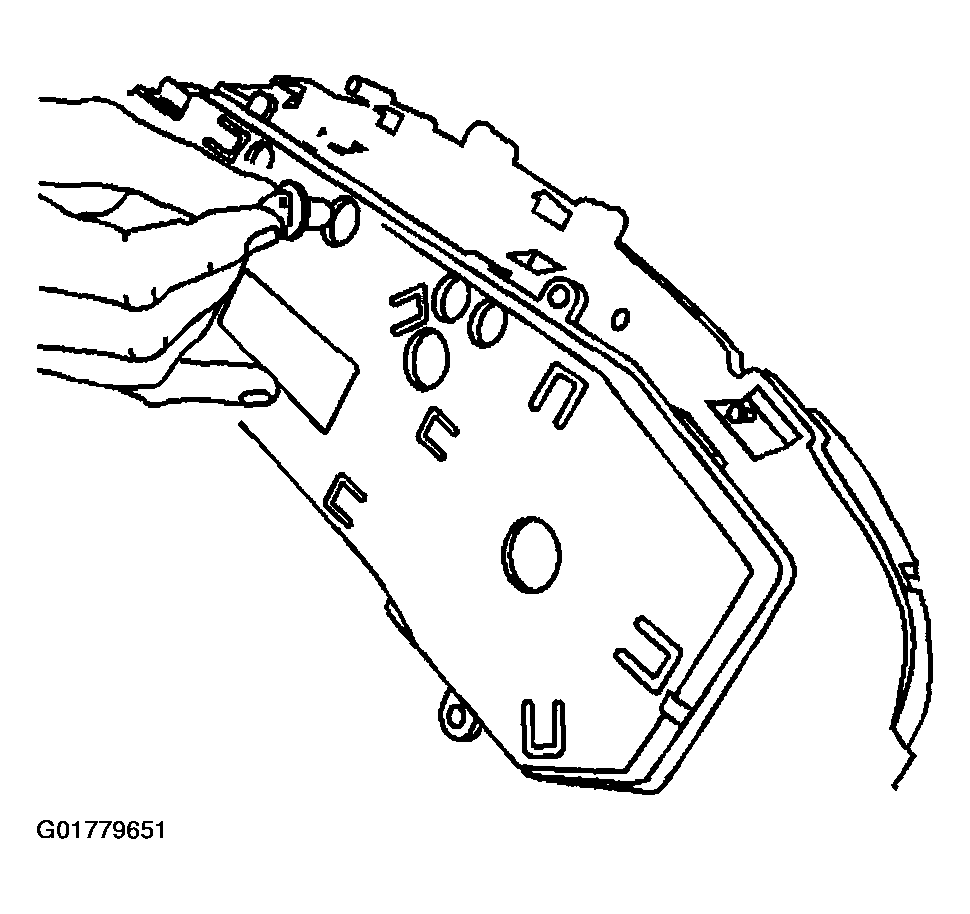

    Fig 1: Removing IP Lamp
    G01779651Courtesy of GENERAL MOTORS CORP.
