Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fog lamp/dimmer switch (2) to the trim panel, ensure that the retaining tabs (1) are seated.
  2. Install the trim panel to the IP. Refer to TRIM PANEL REPLACEMENT -- IP CLUSTER .

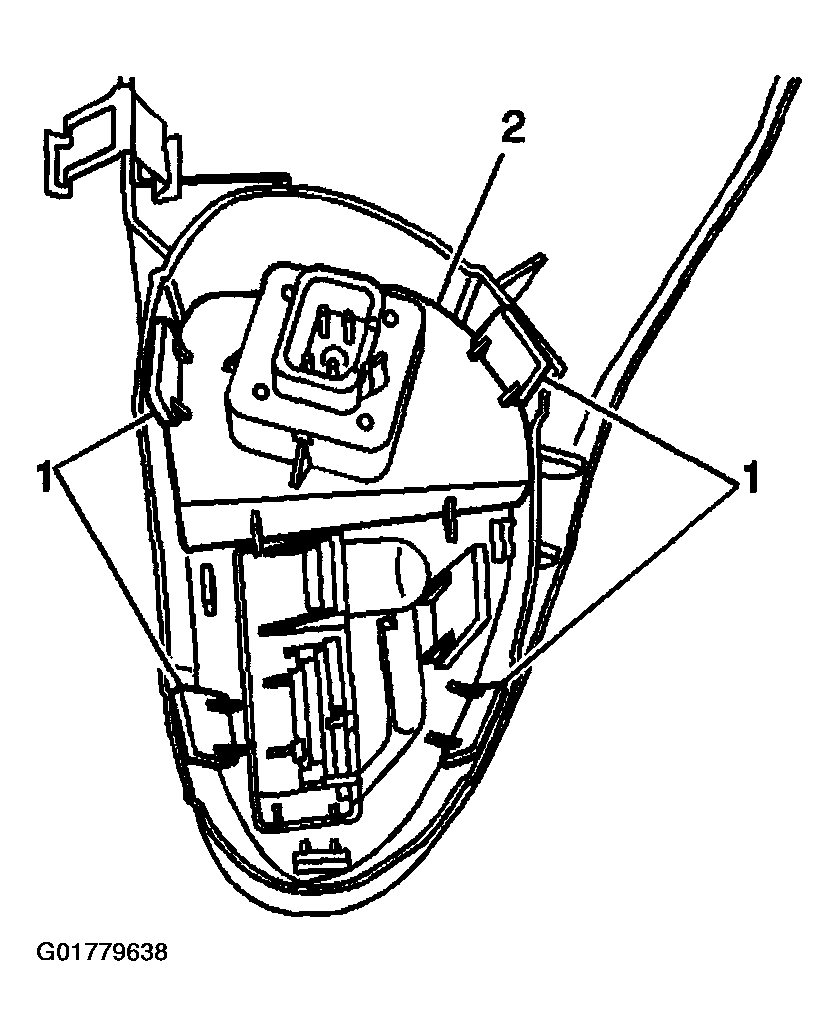

    Fig 1: Installing Front Fog Lamp Switch
    G01779638Courtesy of GENERAL MOTORS CORP.
