Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector (1) to the dome lamp (2).
  2. Position the dome lamp retaining fasteners (3) over the fastener holes.

    Press the dome lamp (2) into place.

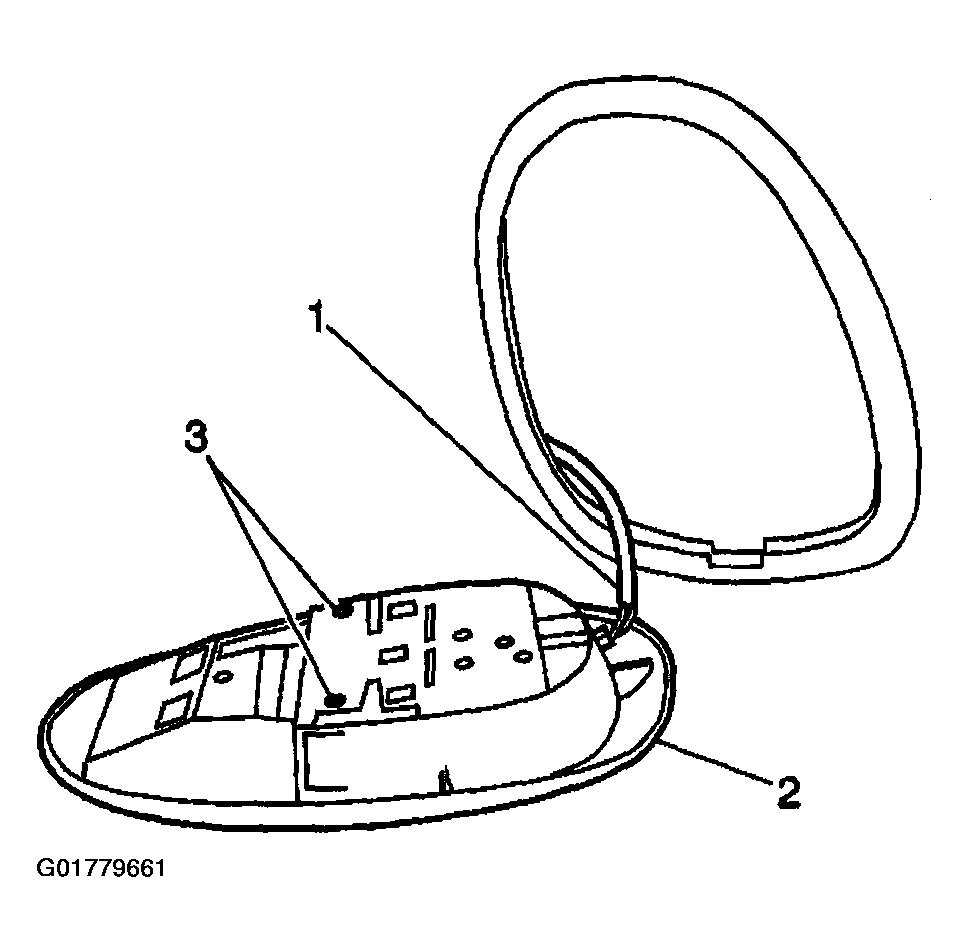

    Fig 1: Connecting Dome Lamp Electrical Connector
    G01779661Courtesy of GENERAL MOTORS CORP.
  3. Install the dome lamp lens (1) to the dome lamp (2).

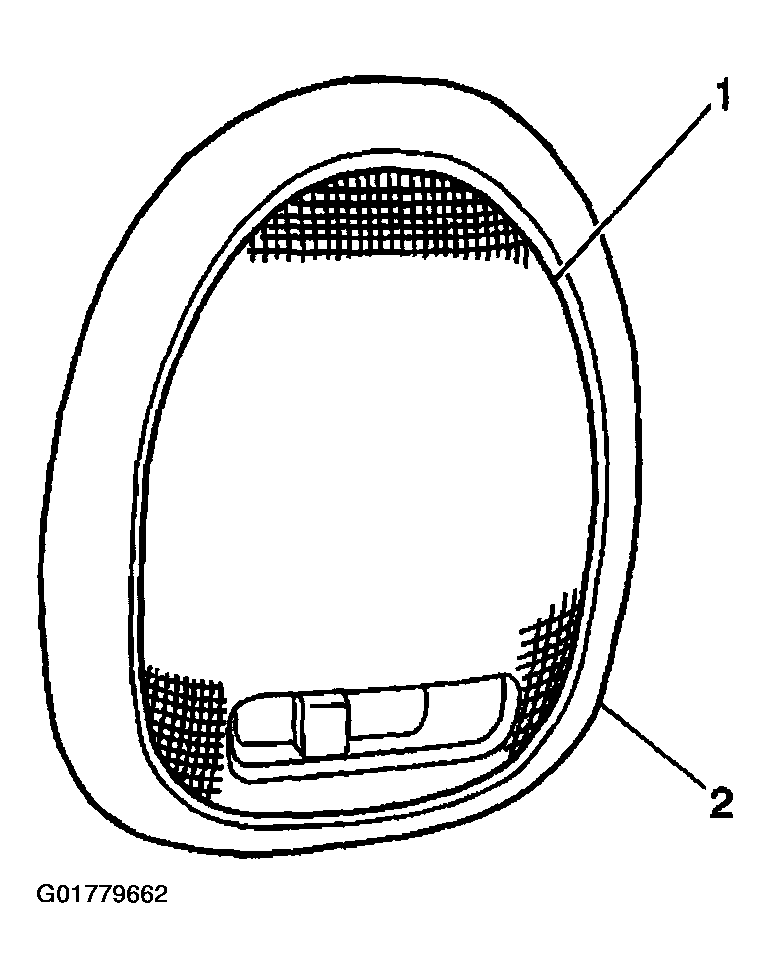

    Fig 2: Installing Dome Lamp Lens
    G01779662Courtesy of GENERAL MOTORS CORP.
