Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat back frame on the seat.
  2. Install the recliner arm attachment bolts (2). Tighten the bolts to 53 N.m (39 lb ft).
  3. Install the inboard pivot bolt (1). Tighten the bolt to 35 N.m (26 lb ft).
  4. Install the seat belt retractor. Refer to SEAT BELT RETRACTOR REPLACEMENT - LEFT FRONT or SEAT BELT RETRACTOR REPLACEMENT - RIGHT FRONT .
  5. Install the lumbar assembly (or power lumbar/bolster assembly if equipped). Refer to Lumbar Replacement - Front Seat (Manual)  or Lumbar Replacement - Front Seat (Power Lumbar/Bolster)  .
  6. Install the seat back trim cover and pad. Refer to Seat Back Cover & Pad Replacement - Front .

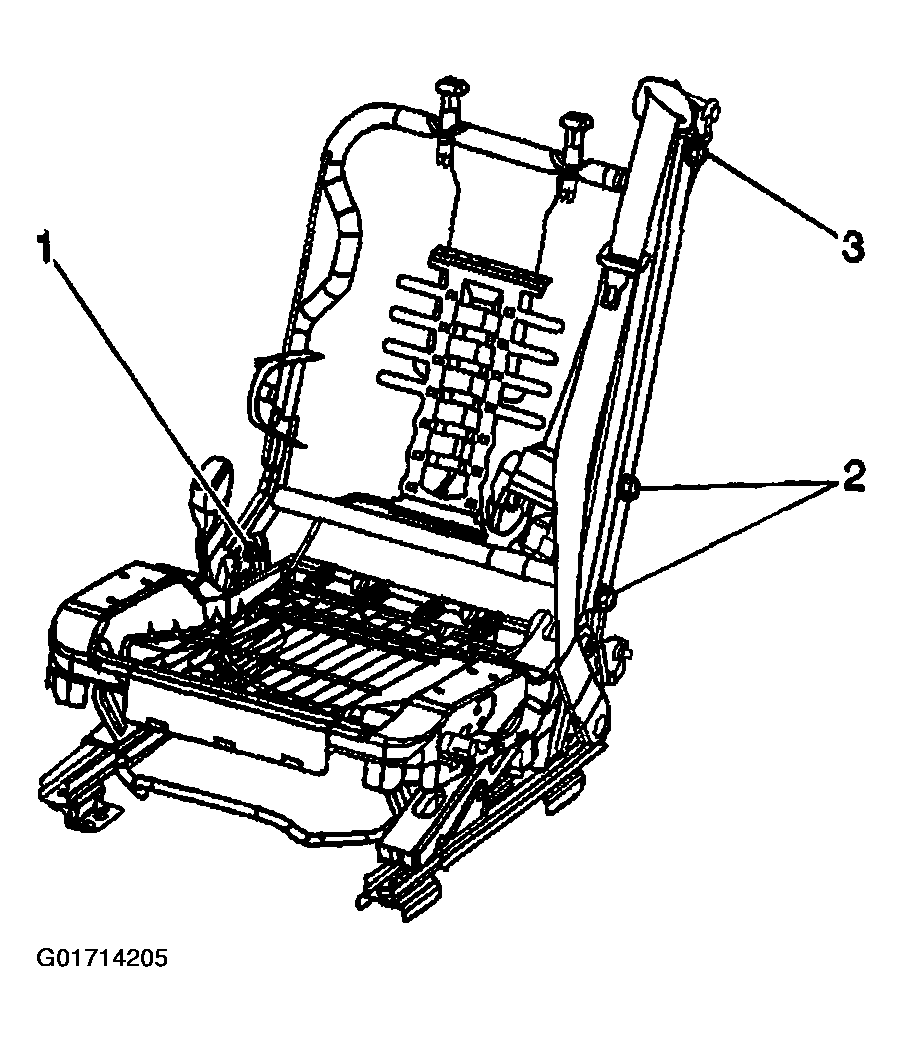

    Fig 1: Seat Back Assembly
    G01714205Courtesy of GENERAL MOTORS CORP.
  7. Connect the lumbar cable (6) underneath the seat cushion (disconnect the wire harness if equipped with power lumbar).
  8. Install the seat trim panel. Refer to Trim Panel Replacement - Front Seat .
  9. Install the head restraint and guides. Refer to Head Restraint Replacement .
  10. Install the seat into the vehicle. Refer to Seat Replacement - Front Bucket .
