Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power seat switch bezel containing the lumbar switch (1) from the seat. Refer to Seat Switch Bezel Replacement .
  2. Remove the lumbar switch screws from the power seat switch bezel.
  3. Remove the lumbar switch.

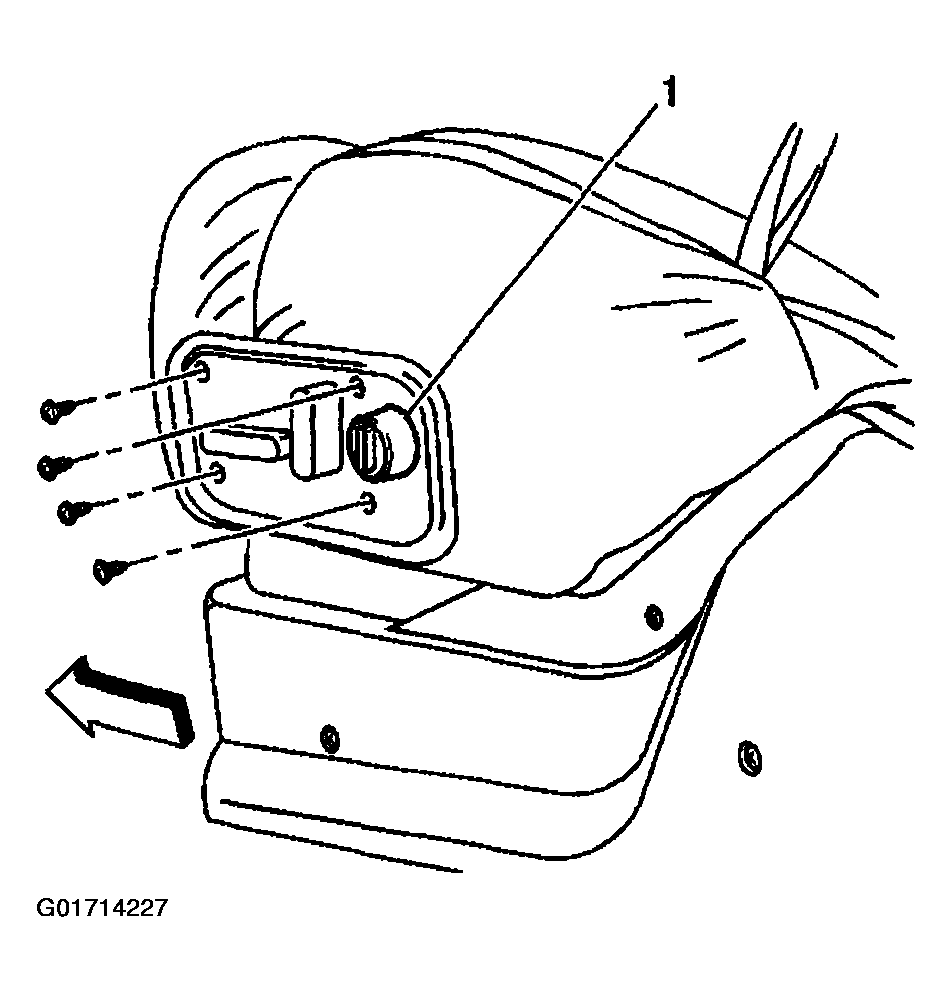

    Fig 1: Lumbar Switch Replacement
    G01714227Courtesy of GENERAL MOTORS CORP.
