Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT -- FRONT
  2. Disconnect the washer hose from the washer pump.
  3. Disconnect the electrical connector from the washer pump.
  4. Disconnect the electrical connector from the washer solvent level sensor.

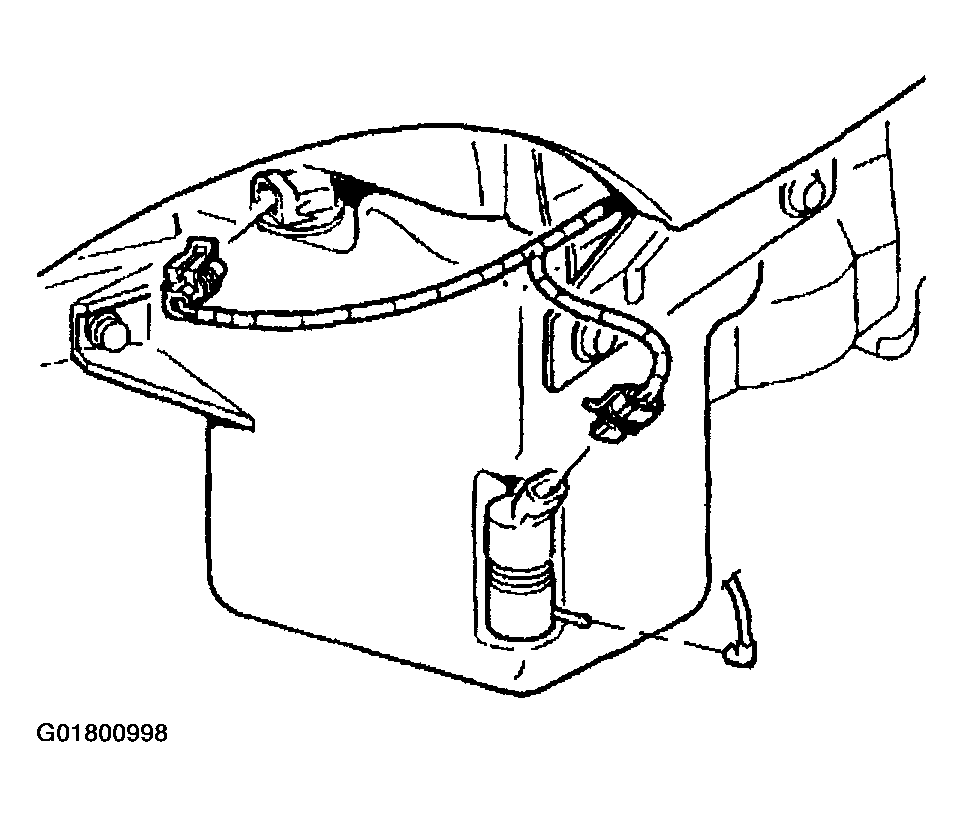

    Fig 1: Disconnecting Electrical Connectors
    G01800998Courtesy of GENERAL MOTORS CORP.
  5. Remove the 3 nuts from the washer solvent container.
  6. Remove the washer solvent container from the vehicle.

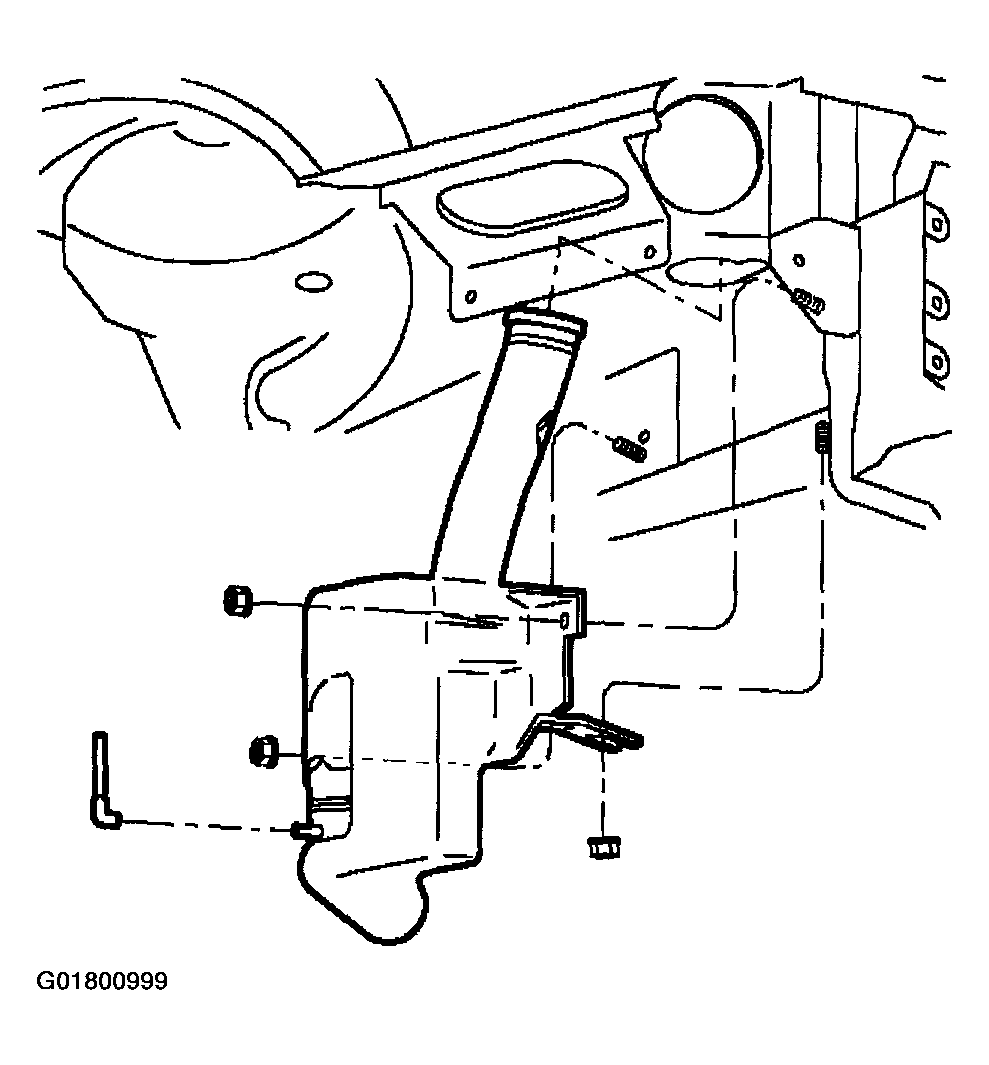

    Fig 2: Removing Washer Solvent Container
    G01800999Courtesy of GENERAL MOTORS CORP.
  7. Remove the washer pump from the washer solvent container.
    Fig 3: Removing Washer Pump
    G01801000Courtesy of GENERAL MOTORS CORP.
