Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the energy absorber to front bumper fascia.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the screws (1) to secure the energy absorber to the fascia using a square drive bit.

    Tighten

    Tighten the screws to 4 N.m (35 in lbs).

  3. Install the front bumper fascia. Refer to FASCIA REPLACEMENT - Front Bumper . .

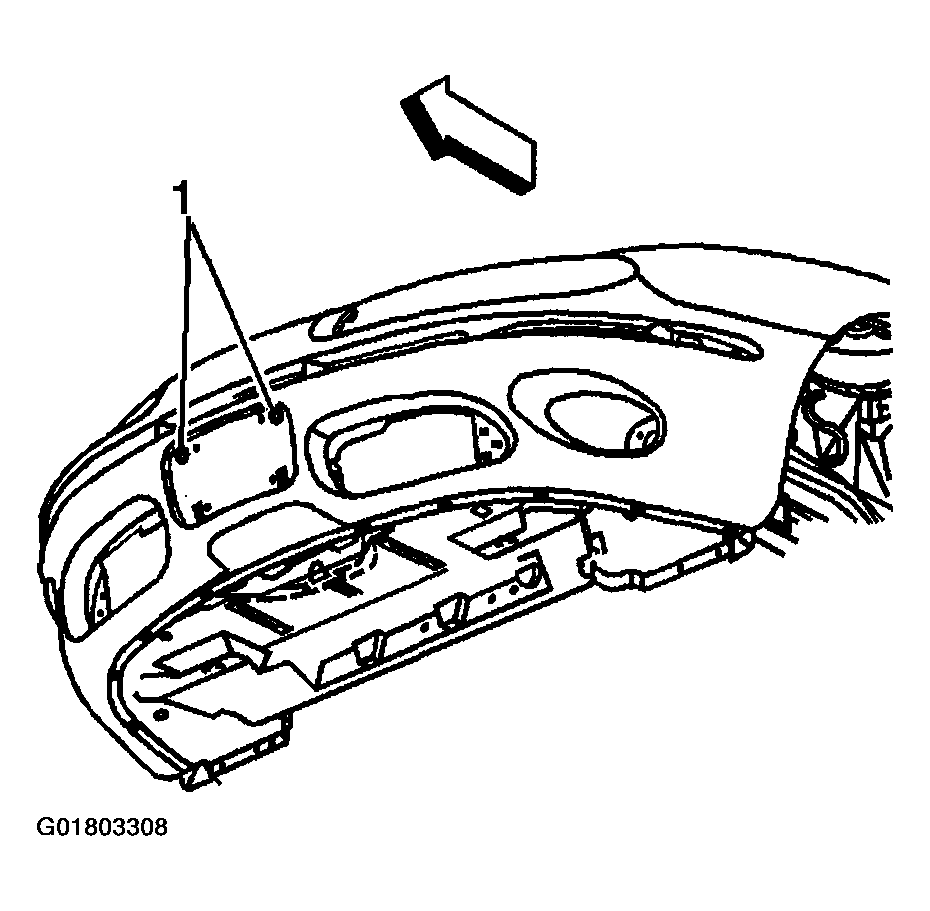

    Fig 1: Installing Front Energy Absorber
    G01803308Courtesy of GENERAL MOTORS CORP.
