Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console trim plate (2). Refer to TRIM PLATE REPLACEMENT -- CONSOLE in Instrument Panel, Gages and Console.
  2. Disconnect the traction control switch electrical connector.
  3. Remove the traction control switch (5).

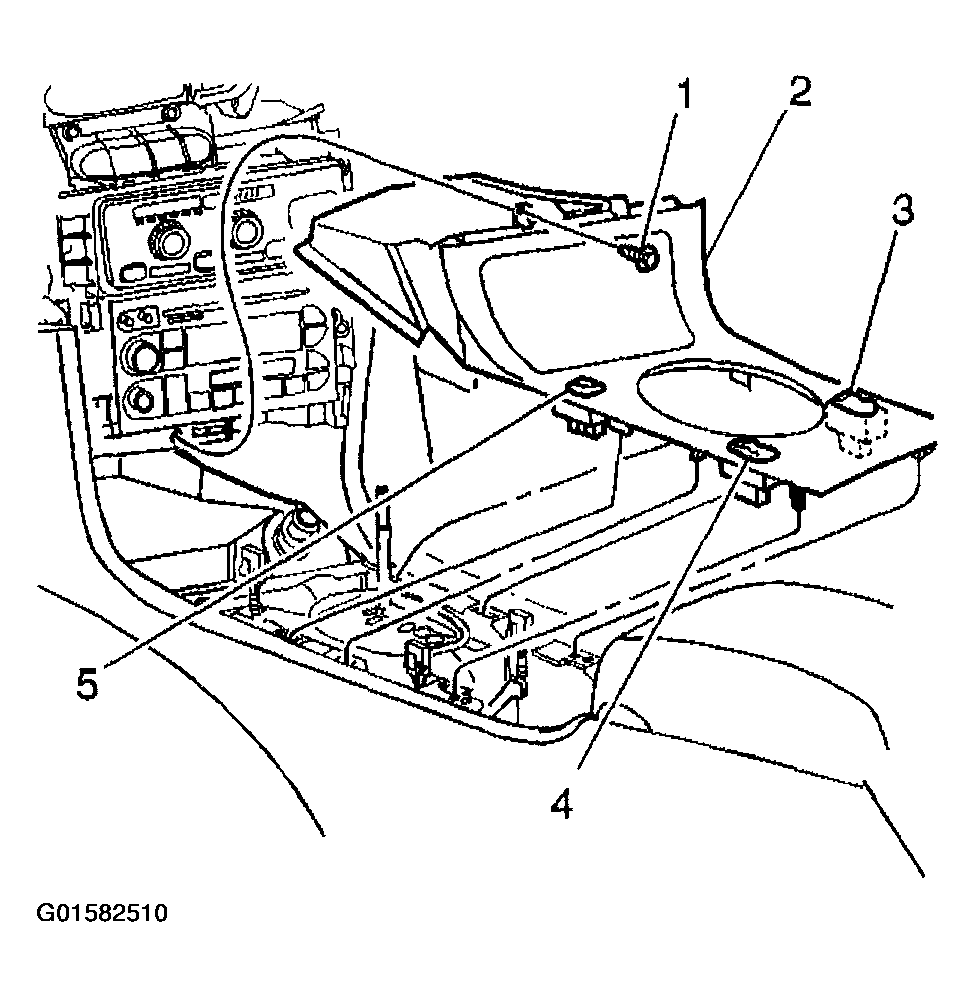

    Fig 1: Removing Center Console Trim Plate & Components
    G01582510Courtesy of GENERAL MOTORS CORP.
