Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fixed antenna mast. Refer to Fixed Antenna Mast Replacement .

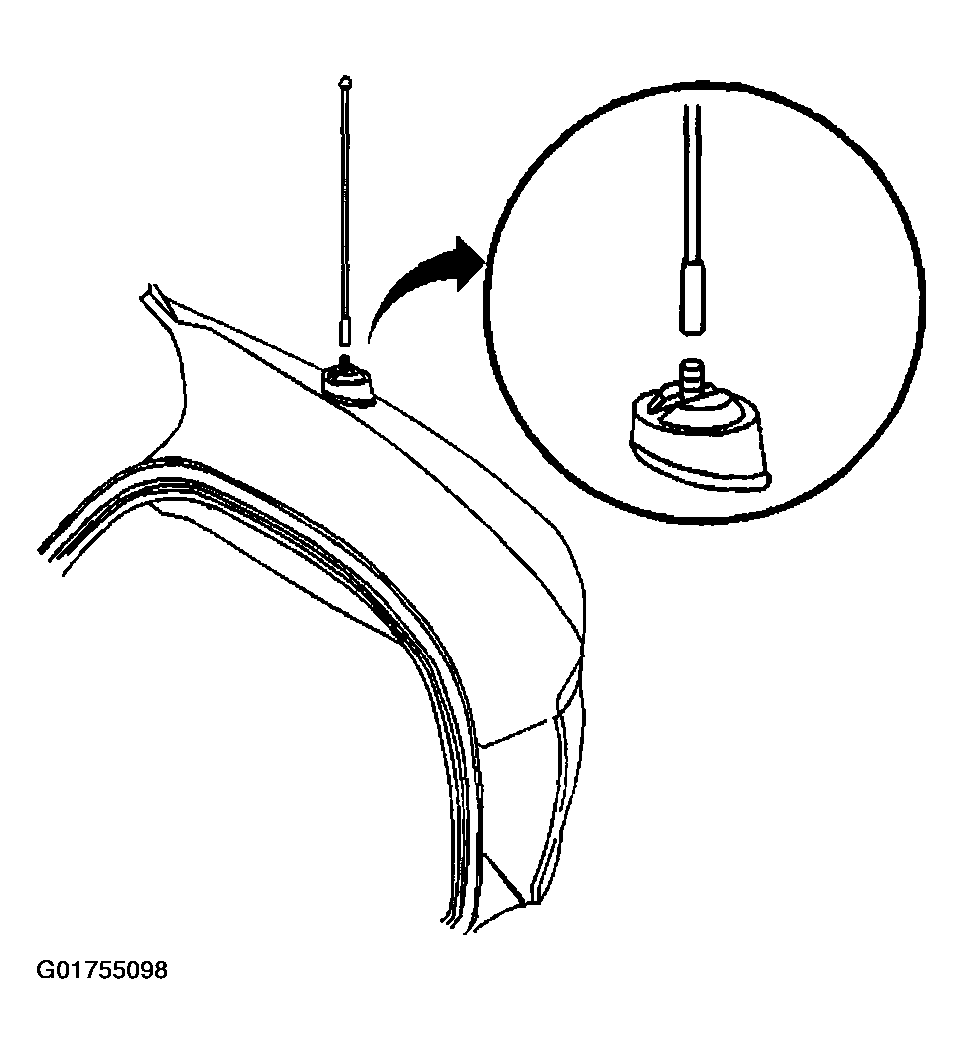

    2. Fig 1: Identifying Antenna Mast
    G01755098Courtesy of GENERAL MOTORS CORP.
  2. Open the rear compartment.
  3. Reposition the right side rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .
  4. Remove the fixed antenna bezel retaining nut using J 38536-A.

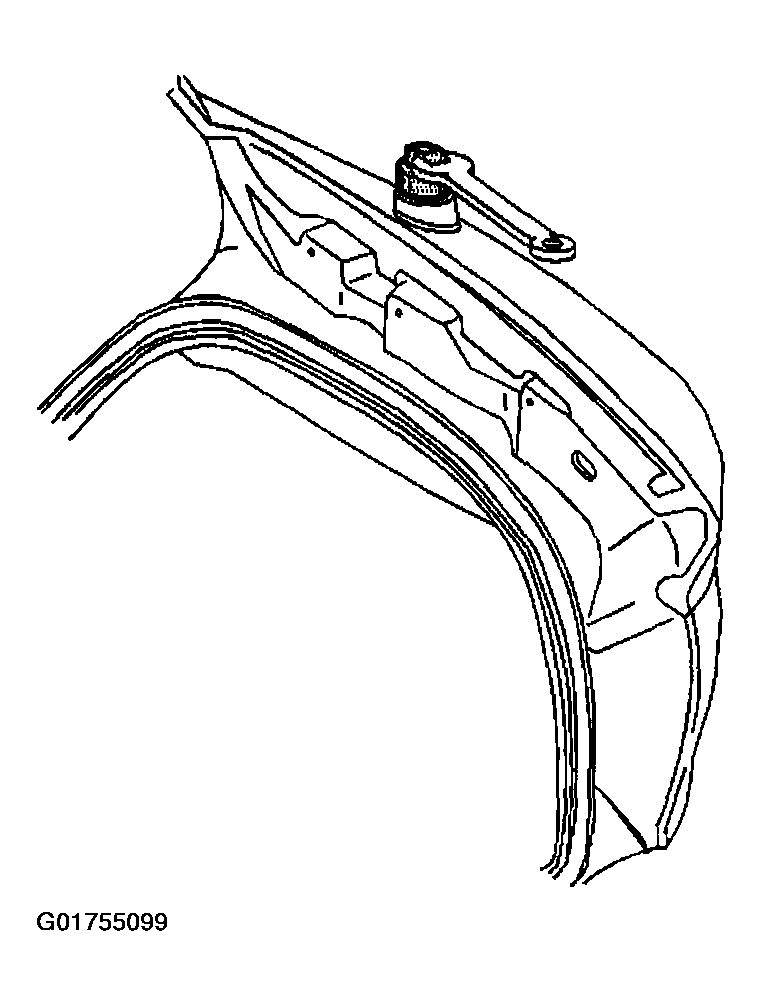

    Fig 2: Removing Antenna Bezel Nut
    G01755099Courtesy of GENERAL MOTORS CORP.
  5. Remove the fixed antenna bezel.
  6. Remove the fixed antenna from the quarter panel.

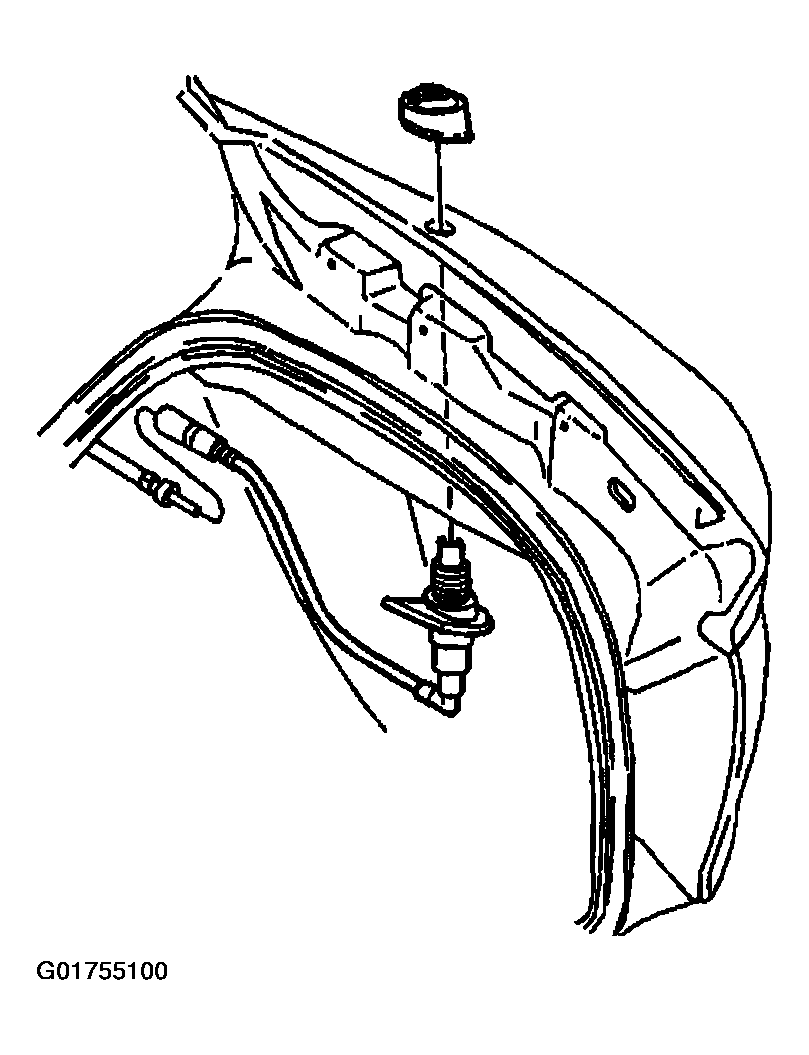

    7. Fig 3: Identifying Fixed Antenna
    G01755100Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the fixed antenna extension cable from the fixed antenna.
