Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster panel. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .
  2. Remove the screws (2) that secure the radio to the support bracket (1).
  3. Remove the radio from the support bracket enough to access the connectors at rear of the radio.
  4. Disconnect the electrical/audio and antenna cable connectors from the radio.
  5. Remove the radio.

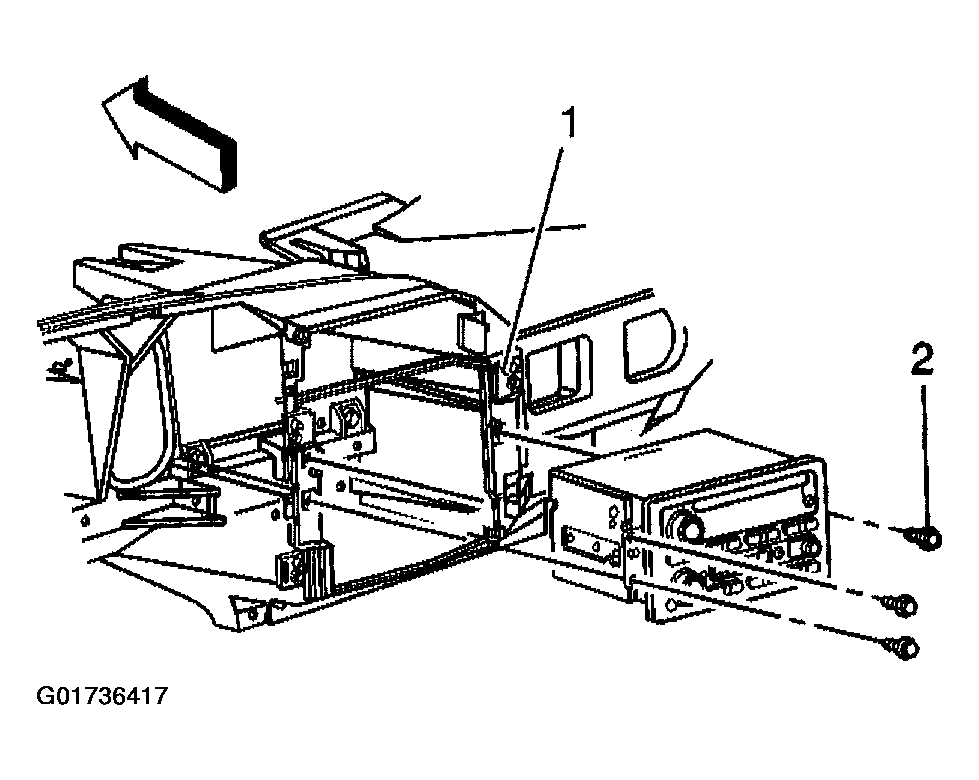

    Fig 1: Removing Screws & Radio
    G01736417Courtesy of GENERAL MOTORS CORP.
  6. Remove the radio mounting bracket. Perform the following steps:
    1. Detach the clip retaining the HVAC harness to the radio mounting bracket.
    2. Remove the screws (2) retaining the radio mounting bracket (1) to the instrument panel carrier.
    3. Remove the radio mounting bracket from the vehicle.

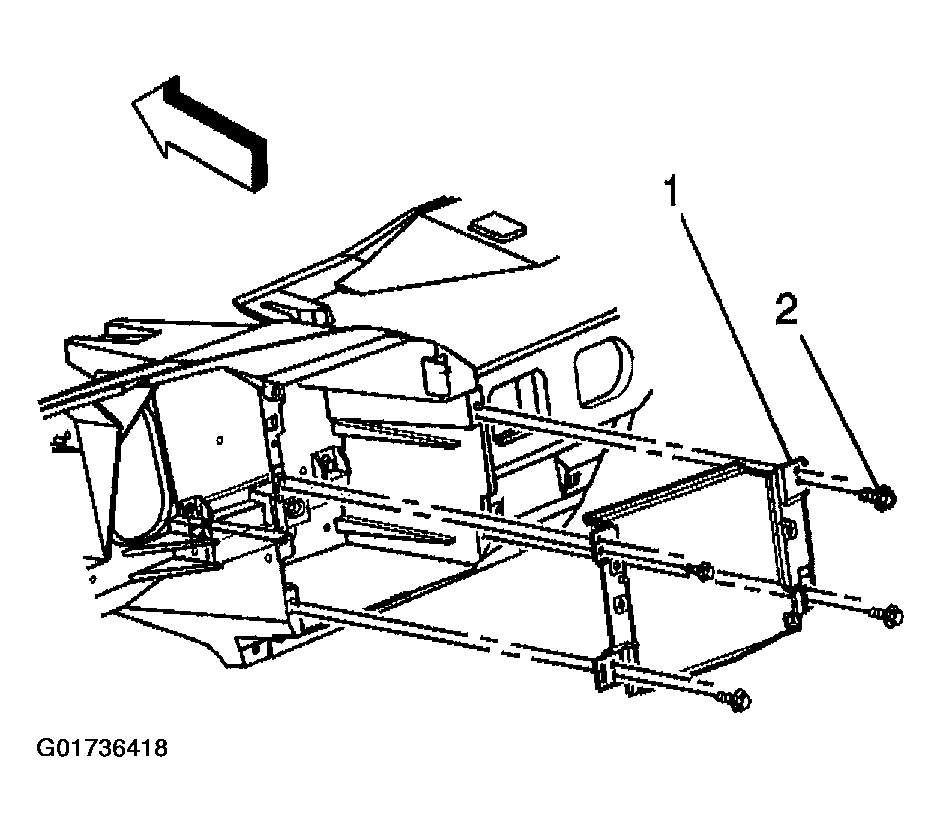

    Fig 2: Removing Radio Mounting Bracket
    G01736418Courtesy of GENERAL MOTORS CORP.
