Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the antenna cable (1) to the vehicle.

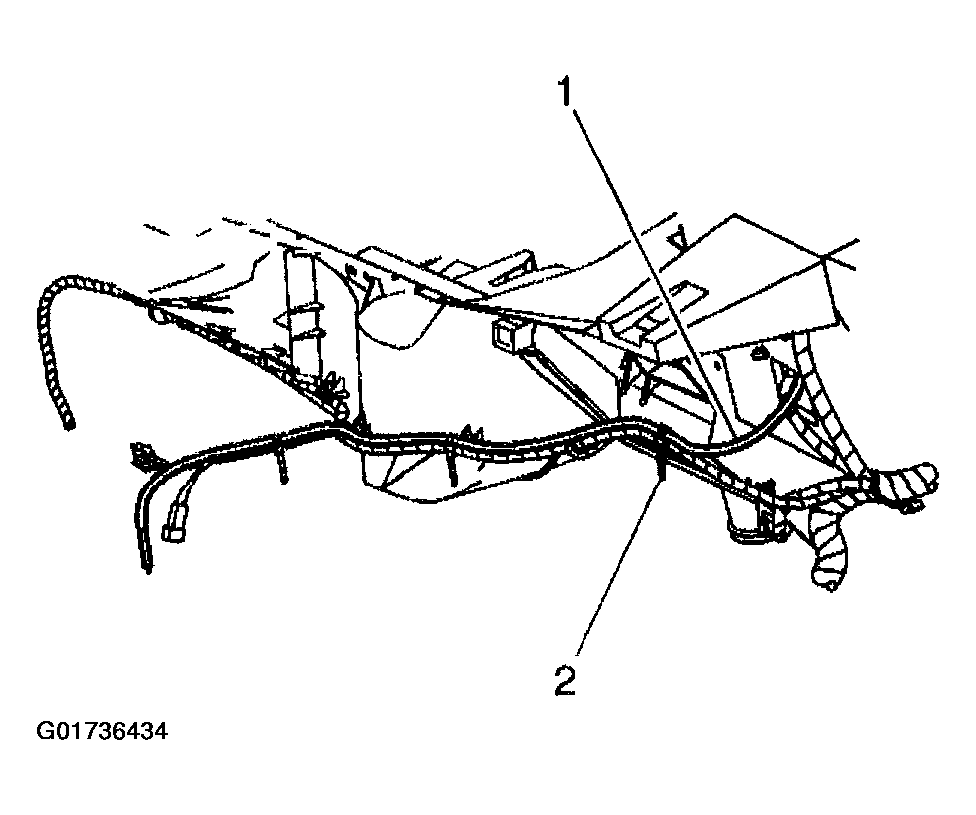

    Fig 1: Installing Antenna Cable To Vehicle
    G01736434Courtesy of GENERAL MOTORS CORP.
  2. Install the cable (1) to the retaining clips on the instrument panel carrier.
  3. Connect the antenna cable connector at the lower right of the instrument panel.
  4. Install the engine cover. Refer to ENGINE COVER REPLACEMENT .
  5. Install the radio mounting bracket and radio. Refer to Radio Replacement .

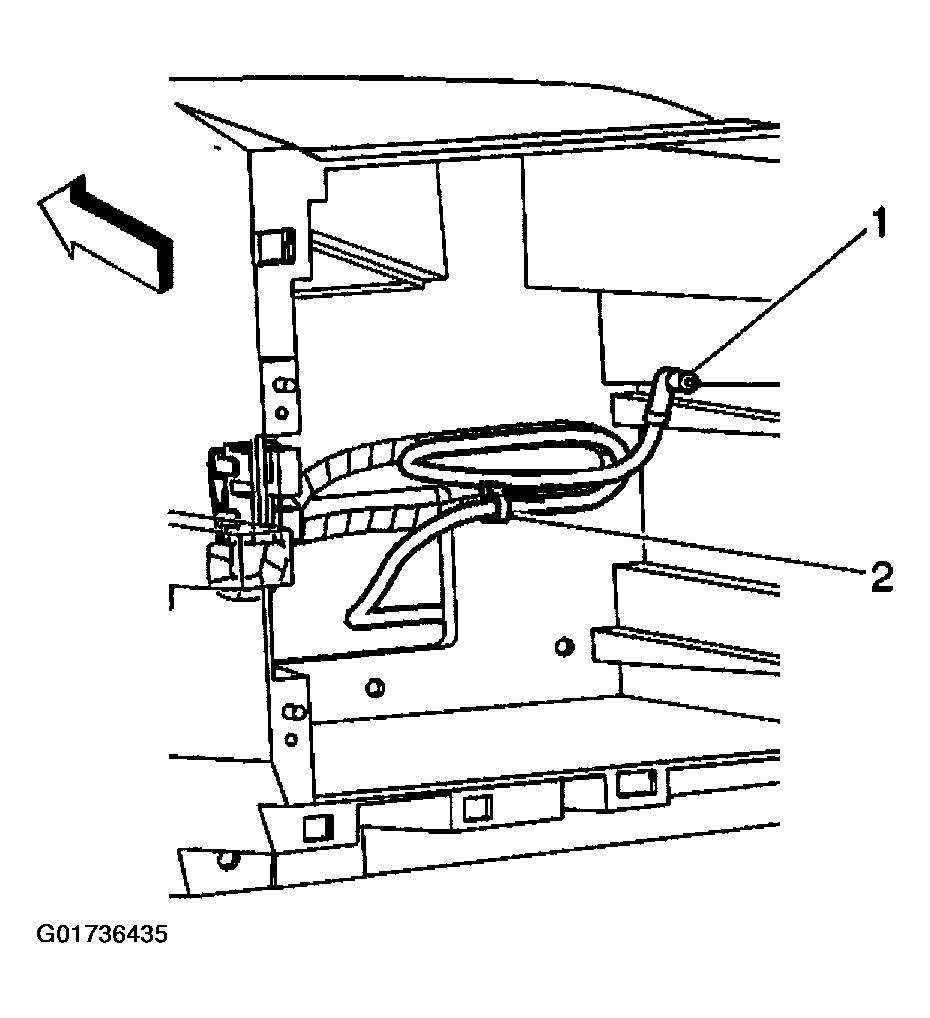

Fig 2: Installing Cable To Retaining Clips
G01736435Courtesy of GENERAL MOTORS CORP.
