Engine Cooling Fan: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Install fan assembly by guiding lower tabs of fan assembly into corresponding radiator hooks.

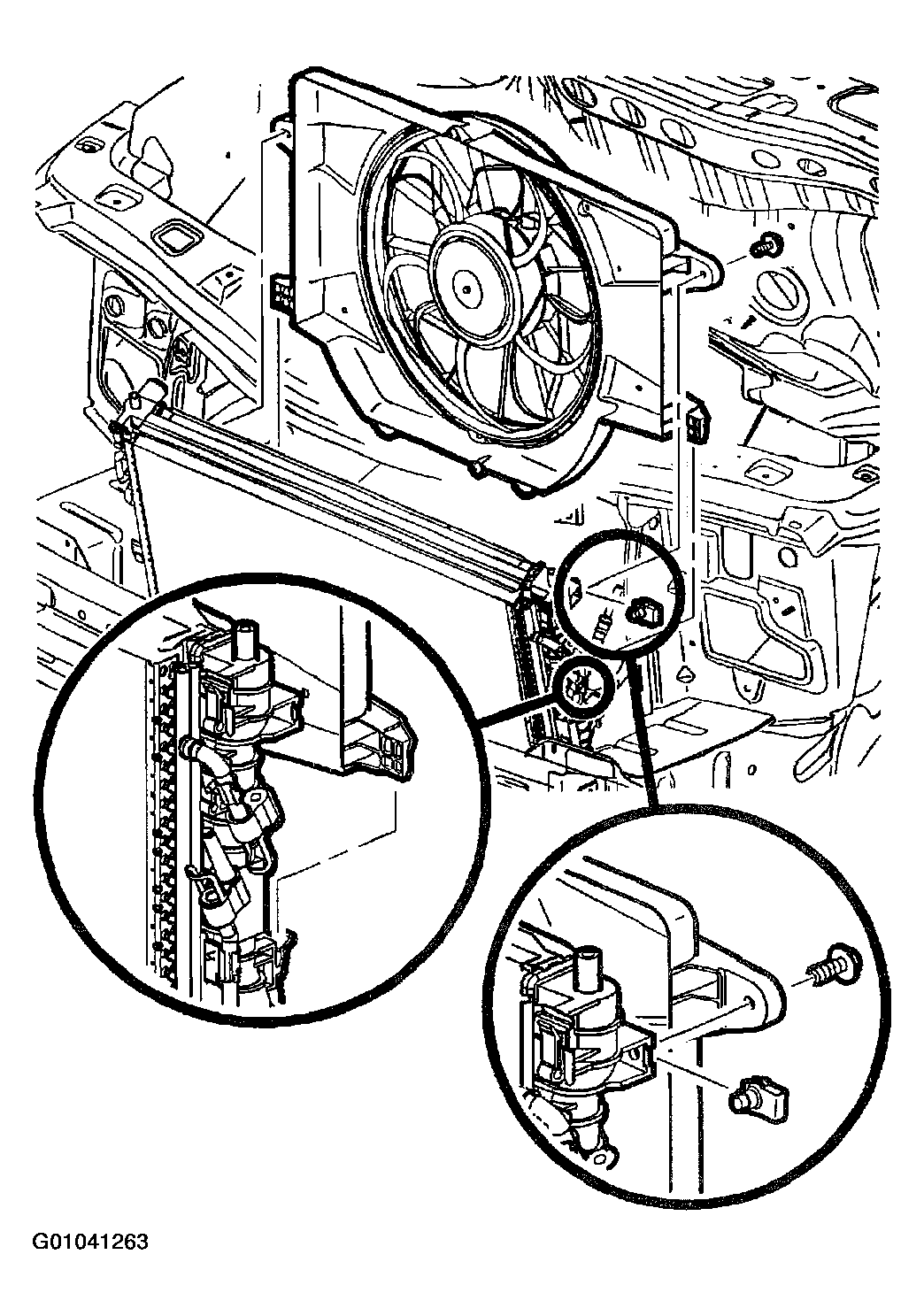

Fig 1: Installing Fan Assembly
Courtesy of GENERAL MOTORS CORP.

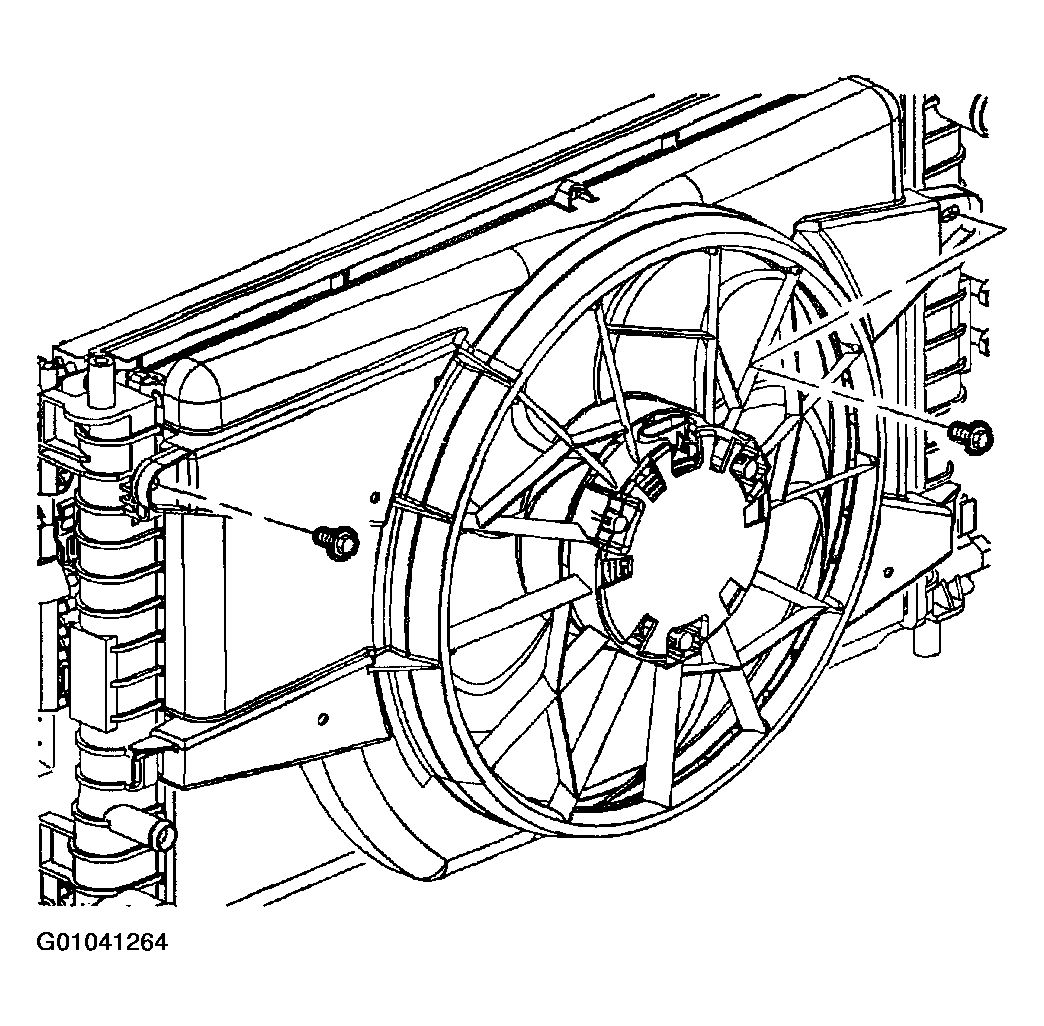

Install fan assembly to radiator bolts.
Install lower radiator pins into cradle brackets.

Fig 2: Installing Lower Radiator Pins Into Cradle Brackets
Courtesy of GENERAL MOTORS CORP.
Install upper CRFM bracket assemblies.

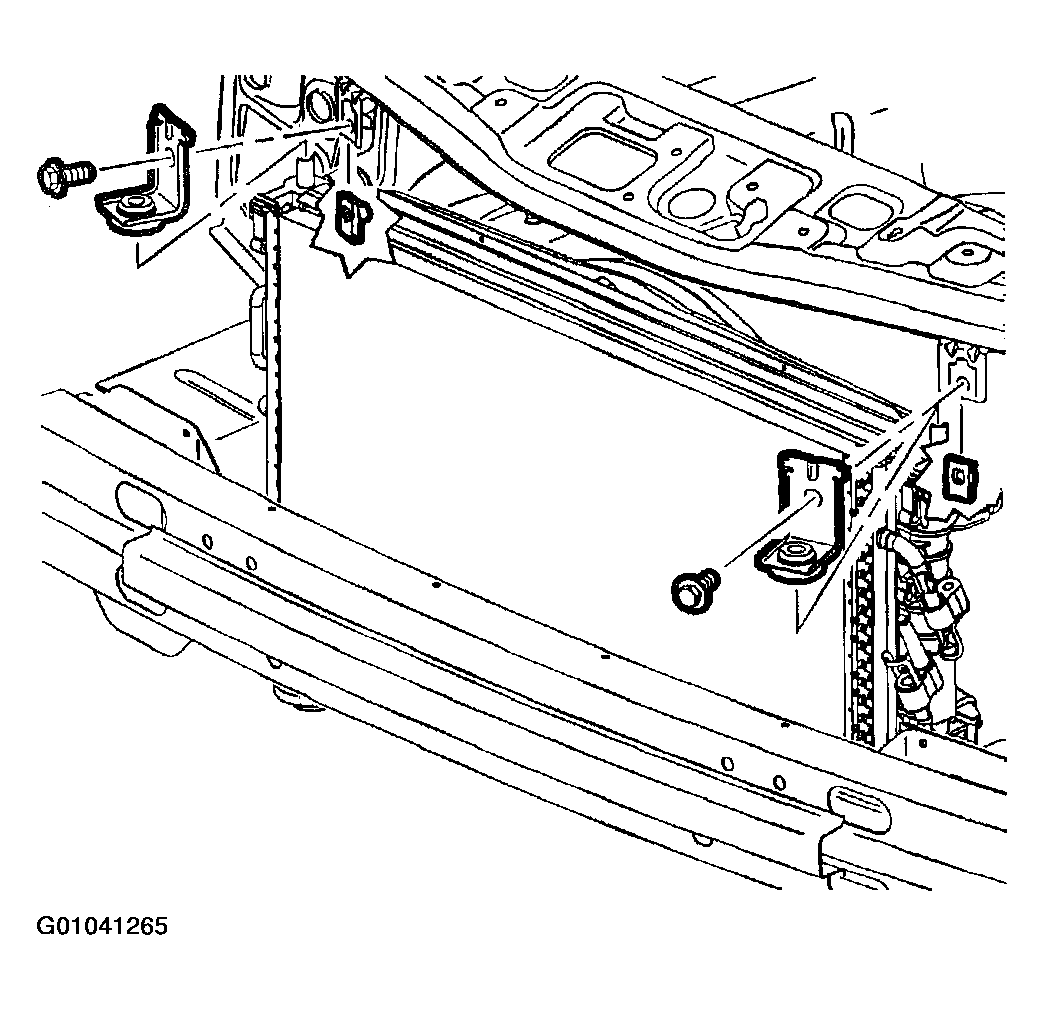

Fig 3: Installing Upper Crfm Bracket Assemblies
Courtesy of GENERAL MOTORS CORP.
Install radiator outlet hose.
Position clamp at 5 o'clock.

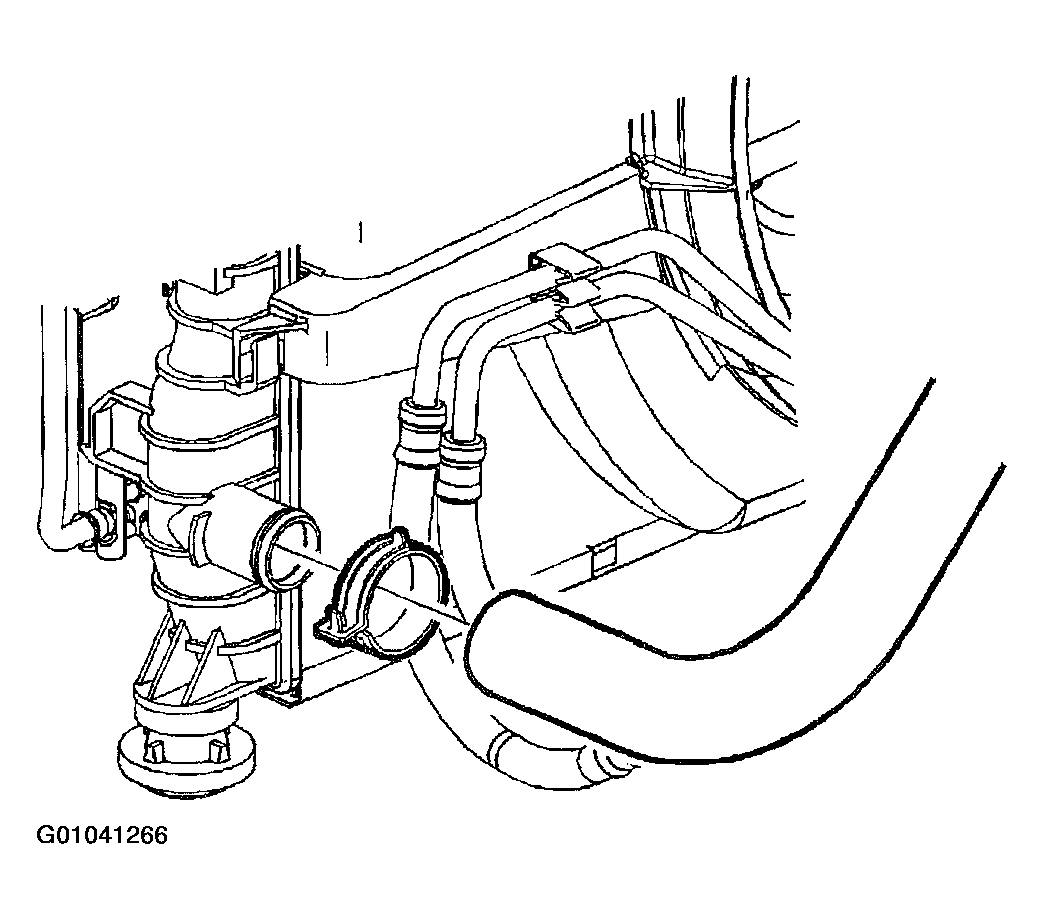

Fig 4: Installing Radiator Outlet Hose
Courtesy of GENERAL MOTORS CORP.
Install radiator inlet hose.
Position clamp at 6 o'clock.

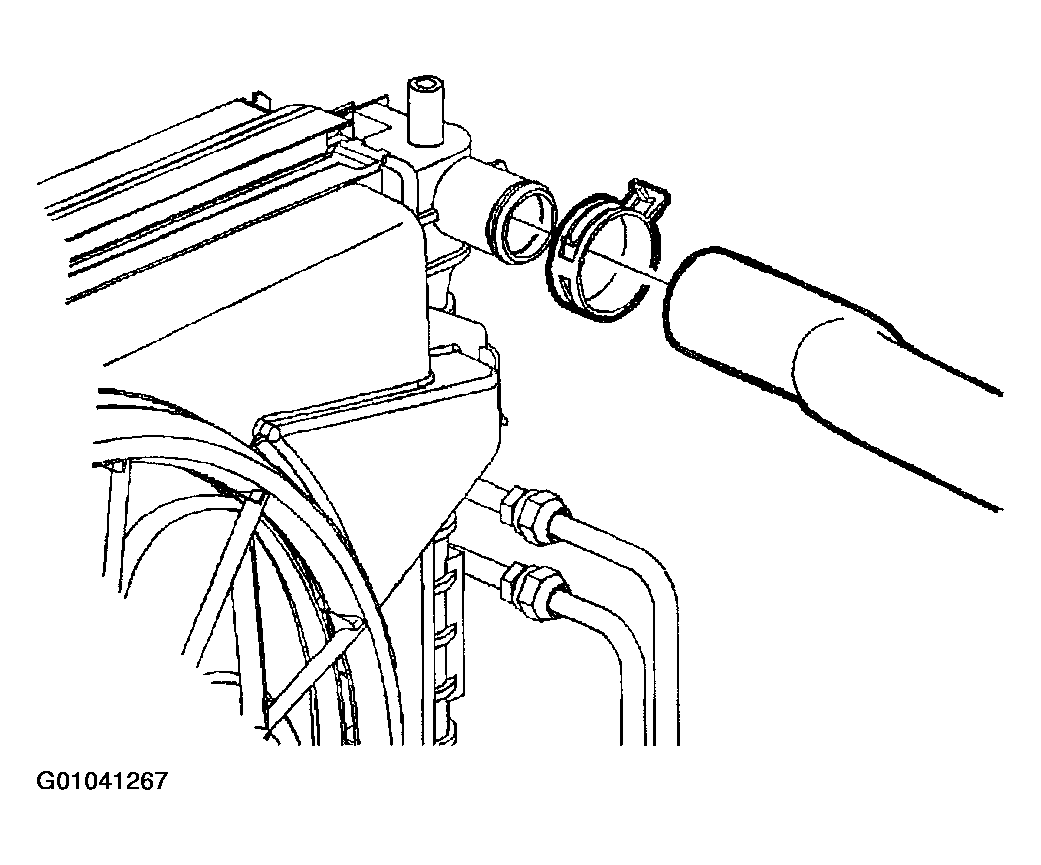

Fig 5: Installing Radiator Inlet Hose
Courtesy of GENERAL MOTORS CORP.
Install condenser splash shield.

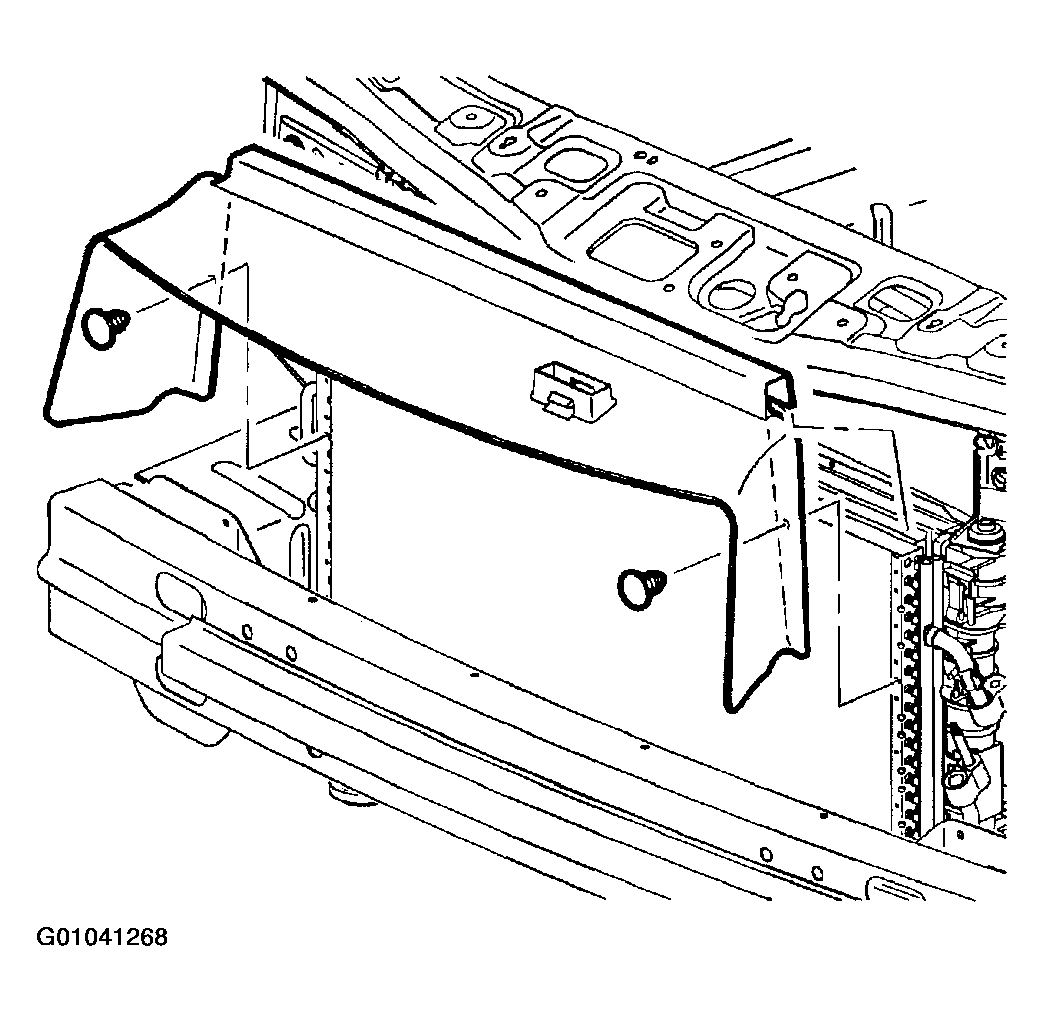

Fig 6: Installing Condenser Splash Shield
Courtesy of GENERAL MOTORS CORP.

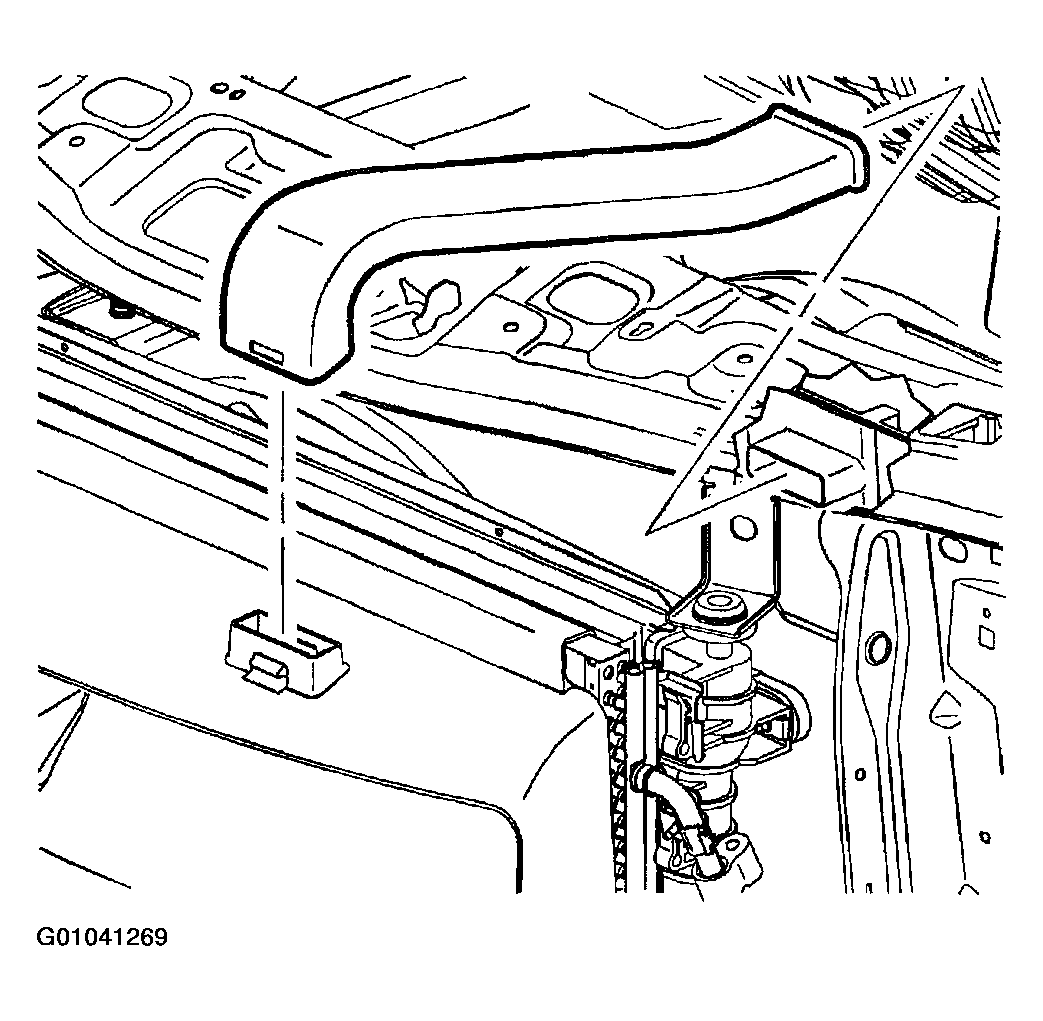

Install battery box inlet air duct.

Fig 7: Install Battery Box Inlet Air Duct
Courtesy of GENERAL MOTORS CORP.

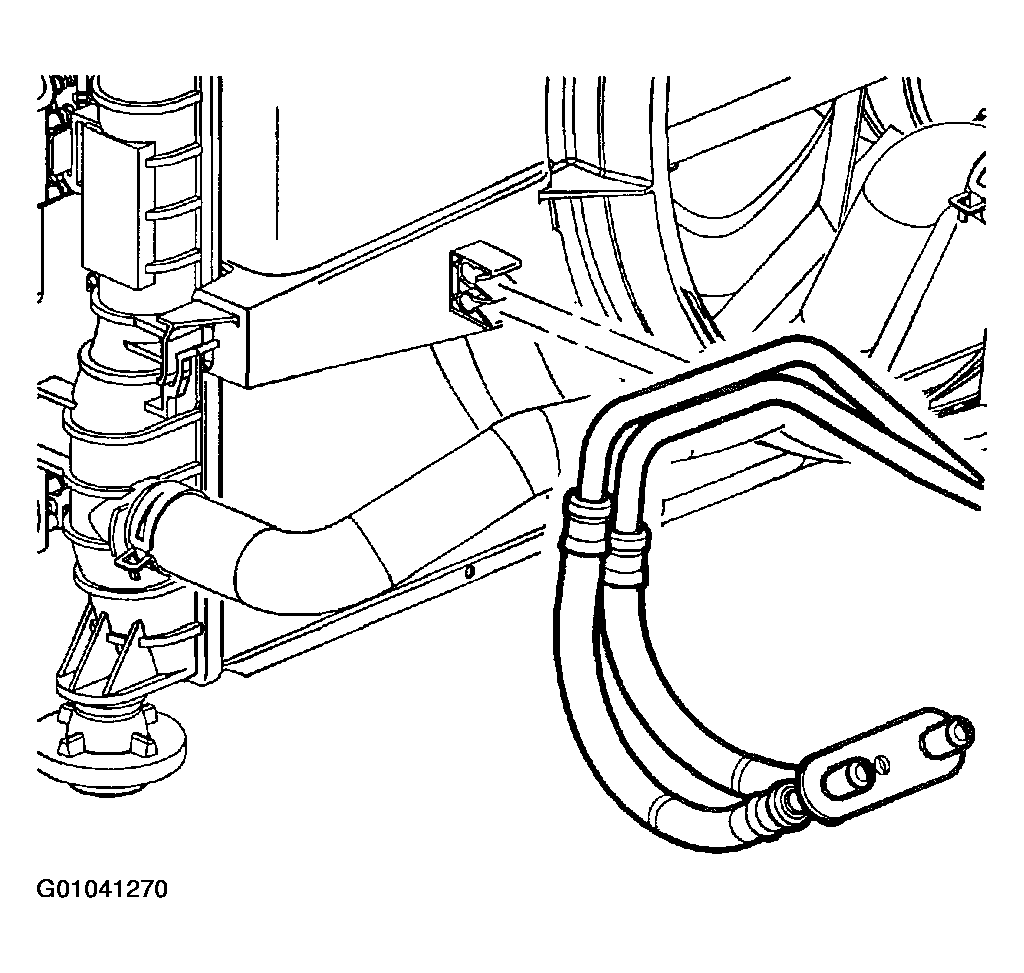

Clip transmission cooler lines to fan assembly.

Fig 8: Clipping Transmission Cooler Lines To Fan Assembly
Courtesy of GENERAL MOTORS CORP.
Clip engine wire harness to fan assembly.

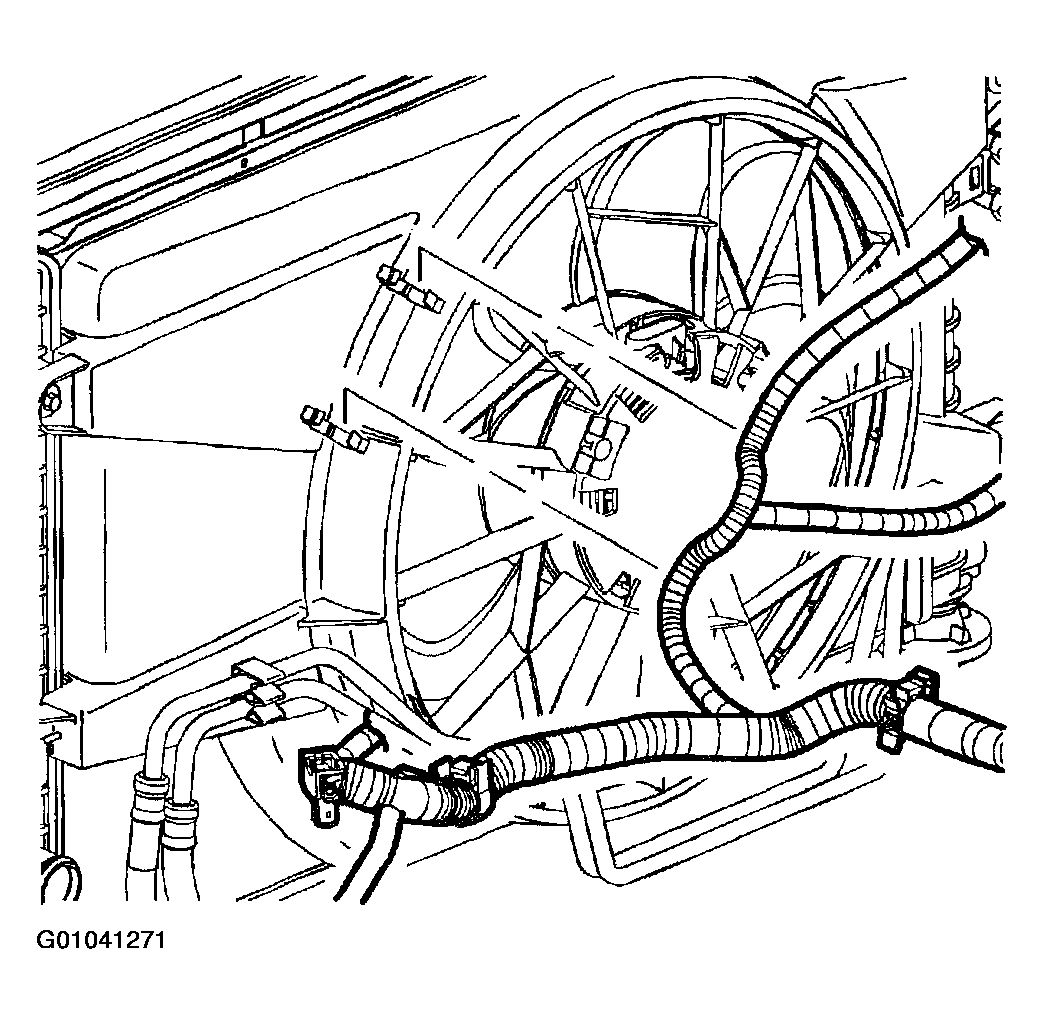

Fig 9: Clipping Engine Wire Harness To Fan Assembly
Courtesy of GENERAL MOTORS CORP.
Connect fan motor to engine harness.
Install front fascia. (Refer to "Front Fascia" installation procedure in the Body Front End section of the Body Service Manual.)
Fill cooling system. (Refer to "Coolant Replacement" procedure in this section.)

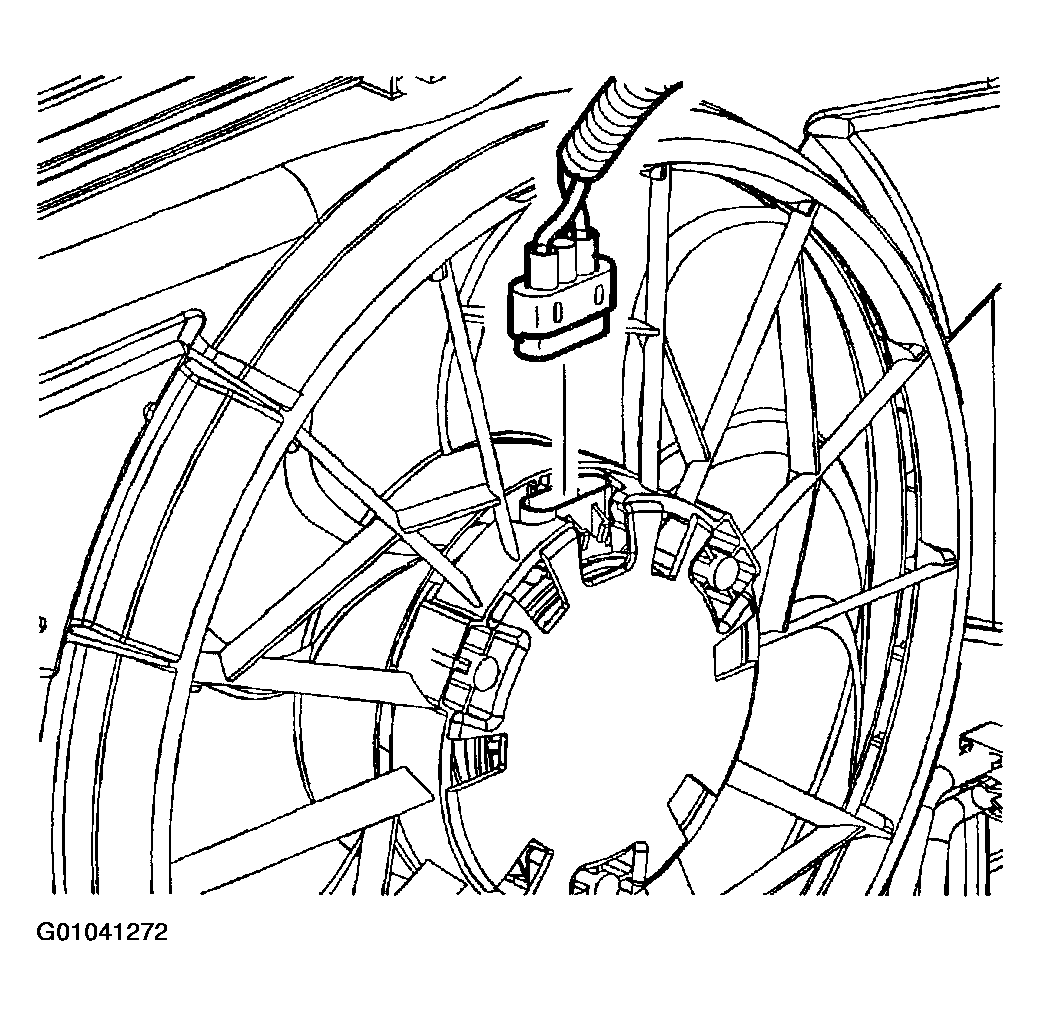

Fig 10: Connecting Fan Motor To Engine Harness
Courtesy of GENERAL MOTORS CORP.
