Bearing Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install the bearing by hooking the upper end of the dust boot to the bearing lip.

Fig 1: Installing Bearing
Courtesy of MAZDA MOTORS CORP.

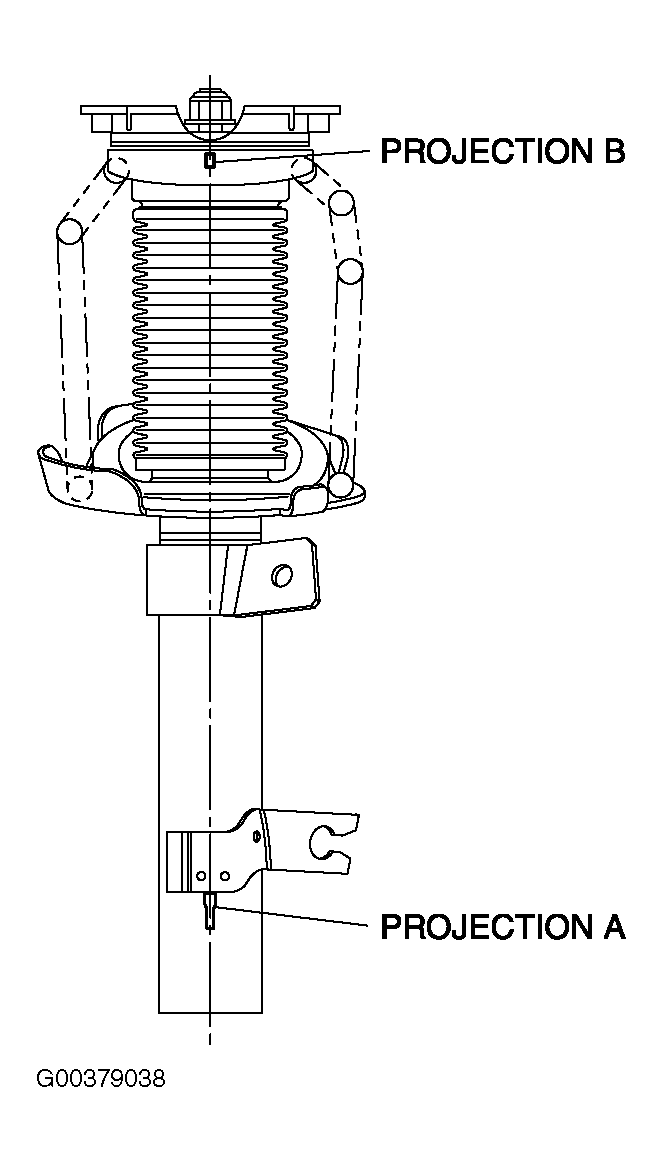

Align the projection A on the lower part of the shock absorber with the bearing projection B.

Fig 2: Aligning Shock Absorber

Courtesy of MAZDA MOTORS CORP.
