Knuckle Replacement: Installation

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

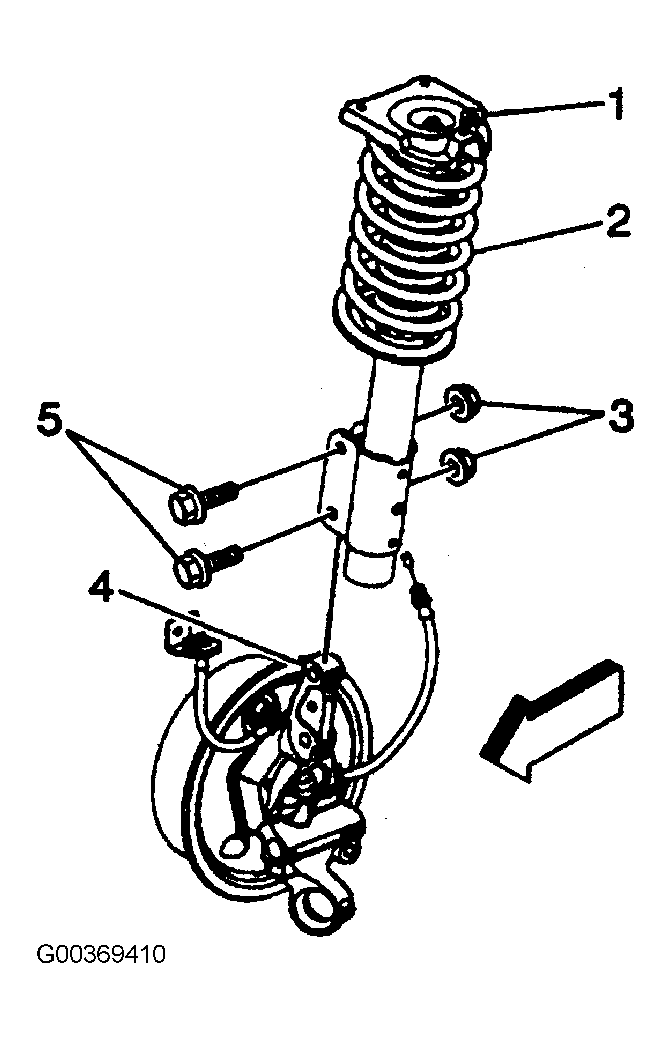

  1. Install the knuckle (4). Install the rear strut to knuckle bolts (5) and nuts (3). Hand tighten the nuts (3). See Figure

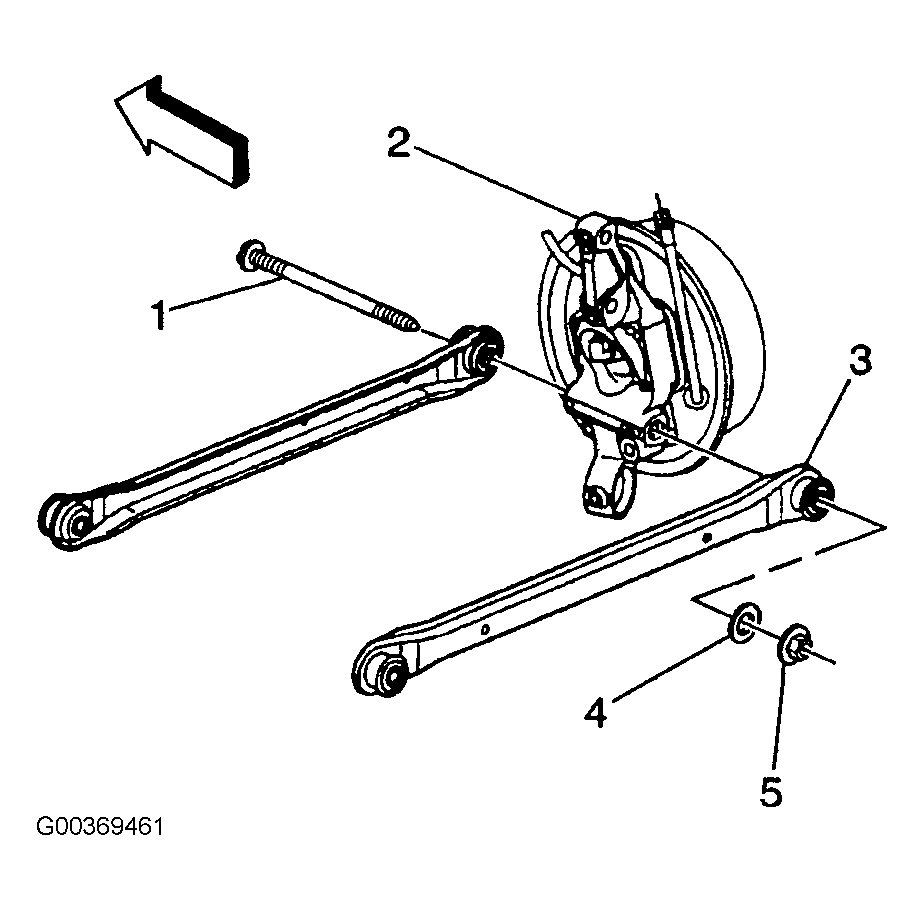

  2. Connect the lateral links to the knuckle and snug nut (5). See Figure. Tighten lateral links to knuckle nut to 120 N.m (89 lb ft).

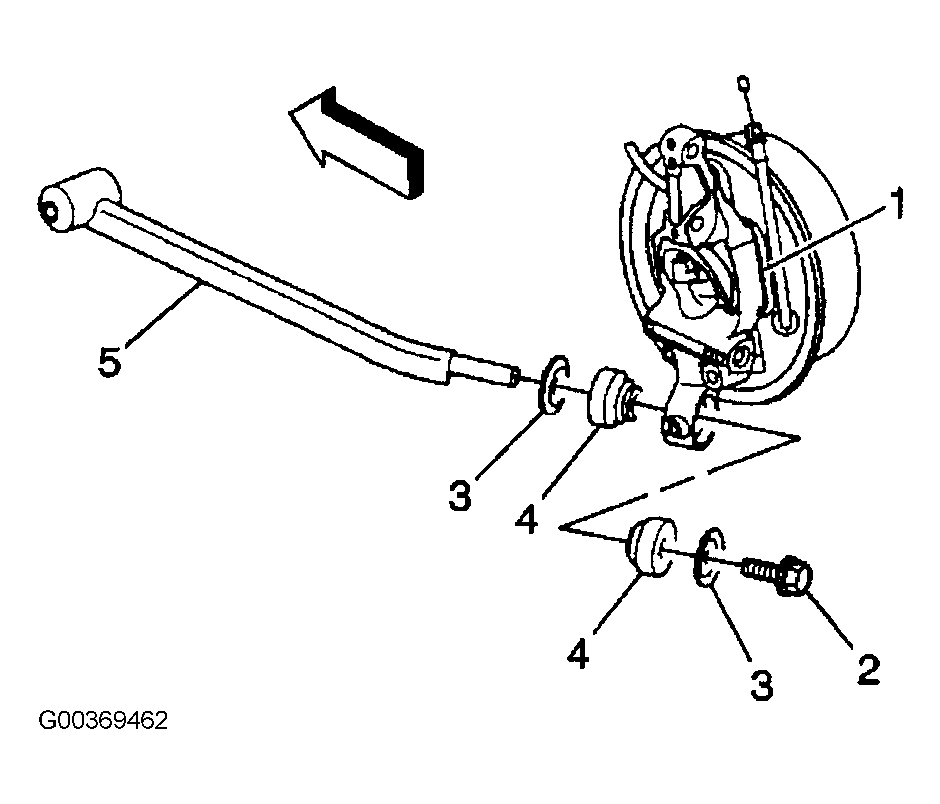

  3. Connect the trailing arm (5) to the knuckle (1). See Figure. Install the trailing arm bolt (2) to the knuckle (1). Tighten the bolt to 69 N.m (51 lb ft).
  4. Install the backing plate. Install the rear wheel hub. Refer to WHEEL BEARING/HUB REPLACEMENT - REAR . Connect the ABS electrical connector. Install the drum. Refer to REAR BRAKE DRUM . Tighten the strut to knuckle nuts to 120 N.m (89 lb ft).
  5. Install the stabilizer shaft link. Refer to STABILIZER SHAFT LINK REPLACEMENT . Install the tire and wheel. Lower the vehicle.
