Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the ashtray.
  2. Position the instrument panel ashtray (2) to the Instrument panel accessory trim plate.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

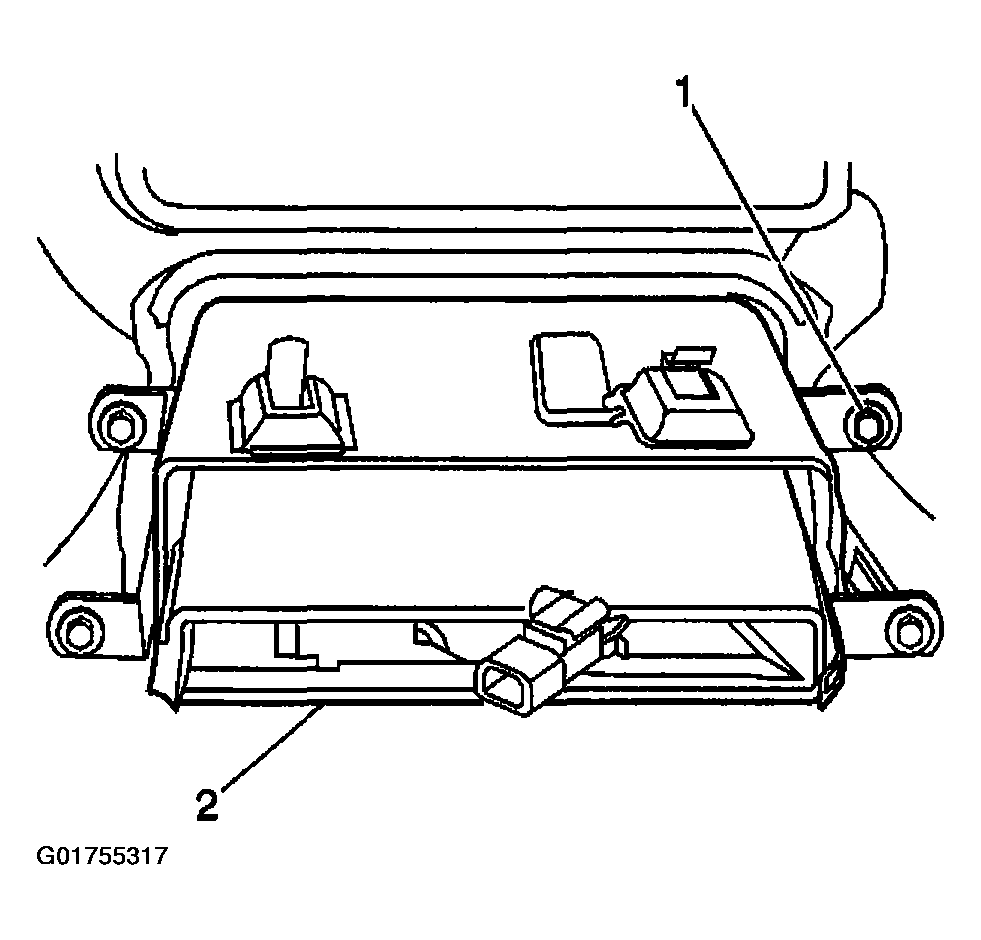

    3. Fig 1: Identifying Ashtray & Screws
    G01755317Courtesy of GENERAL MOTORS CORP.
  3. Install the screws (1) to the instrument panel ashtray bracket. Tighten the instrument panel ashtray bracket screws to 2 N.m (18 lb in).
  4. Install the instrument panel accessory trim plate. Refer to Trim Plate Replacement - I/P Accessory .
