HVAC Control Assembly: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

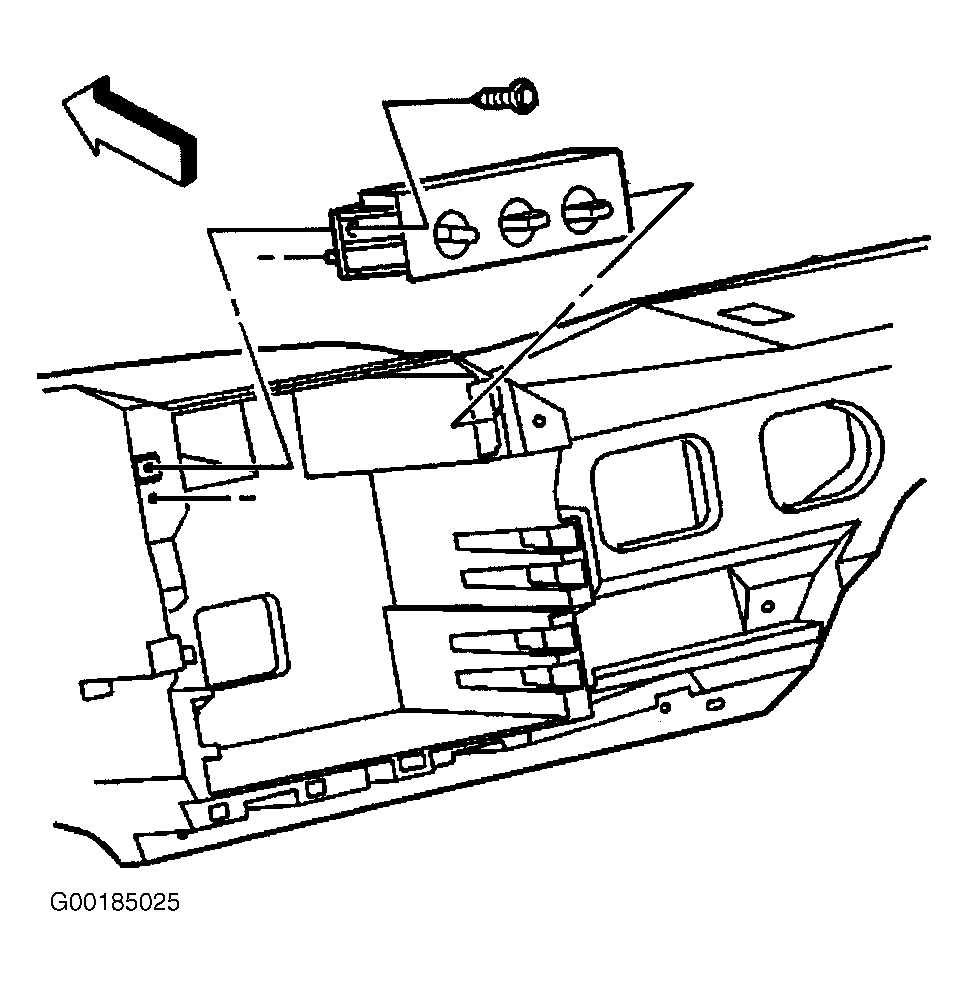

  1. Remove the instrument cluster trim plate. Remove the retaining screw from the left edge of the HVAC control assembly. Pivot the HVAC control assembly from the instrument panel in order to disengage the tab on the right side of the HVAC control assembly. See Figure.

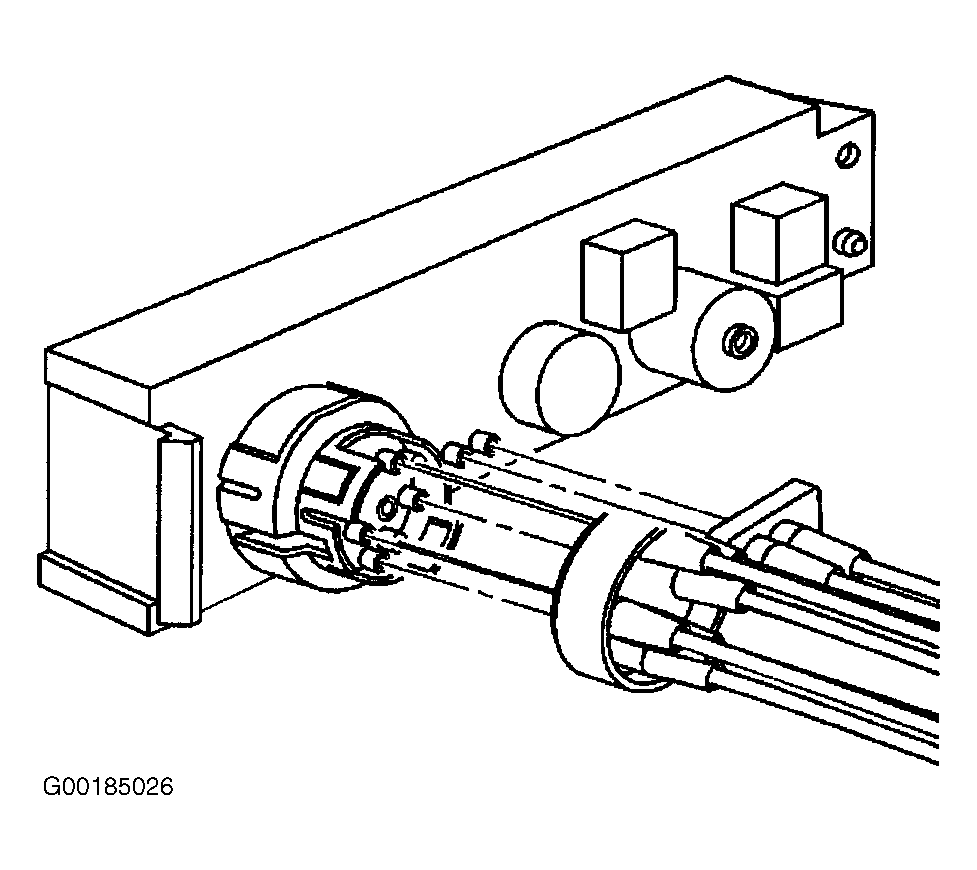

  2. Pull the HVAC control assembly out of the instrument panel far enough to reach the vacuum and the electrical connectors. Disconnect the electrical connectors. See Figure. Disconnect the vacuum connectors.
