Auxiliary HVAC Control Processor: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the HVAC control processor to the HVAC processor case. See Fig 2. Install the HVAC control processor access cover. See Fig 1. Install the HVAC control processor to the roof panel. Install the front headliner.

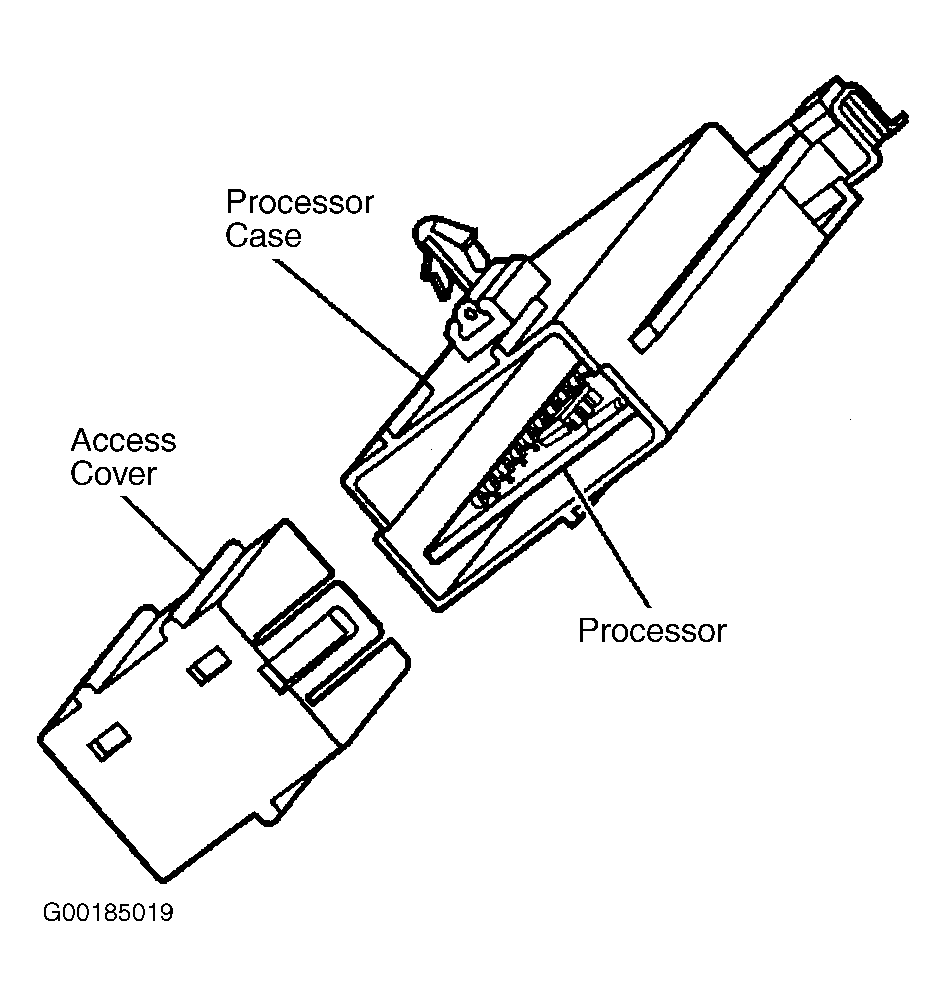

Fig 1: Removing & Installing HVAC Control Processor Access cover

Courtesy of GENERAL MOTORS CORP.

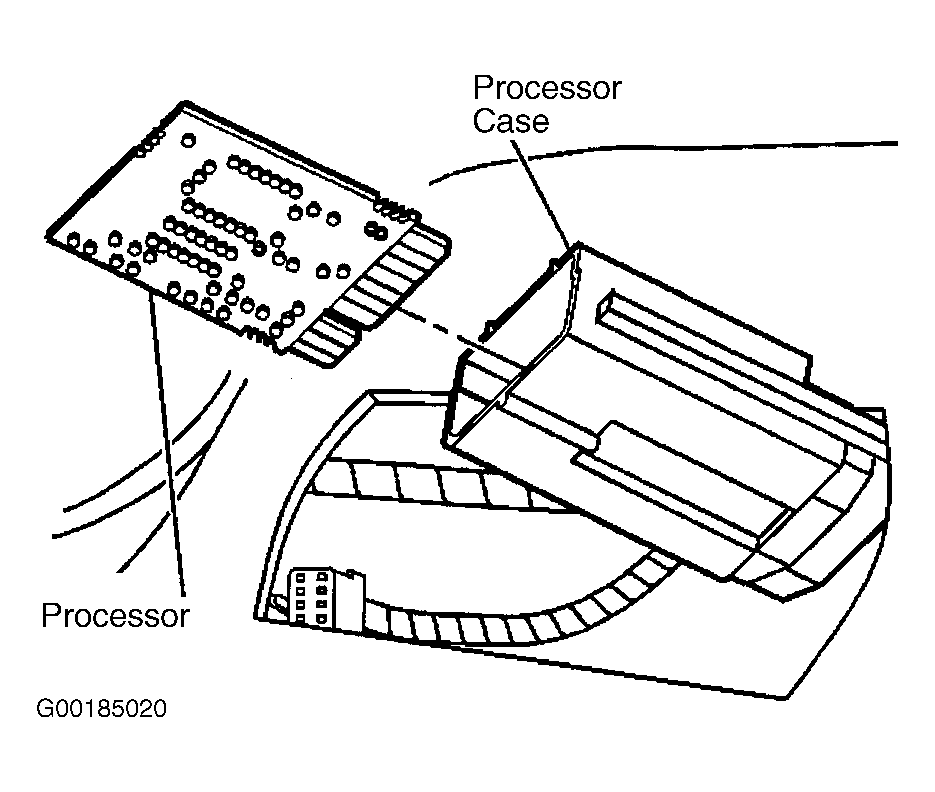

Fig 2: Removing & Installing HVAC Control Processor

Courtesy of GENERAL MOTORS CORP.
