Repair Unit Selection

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

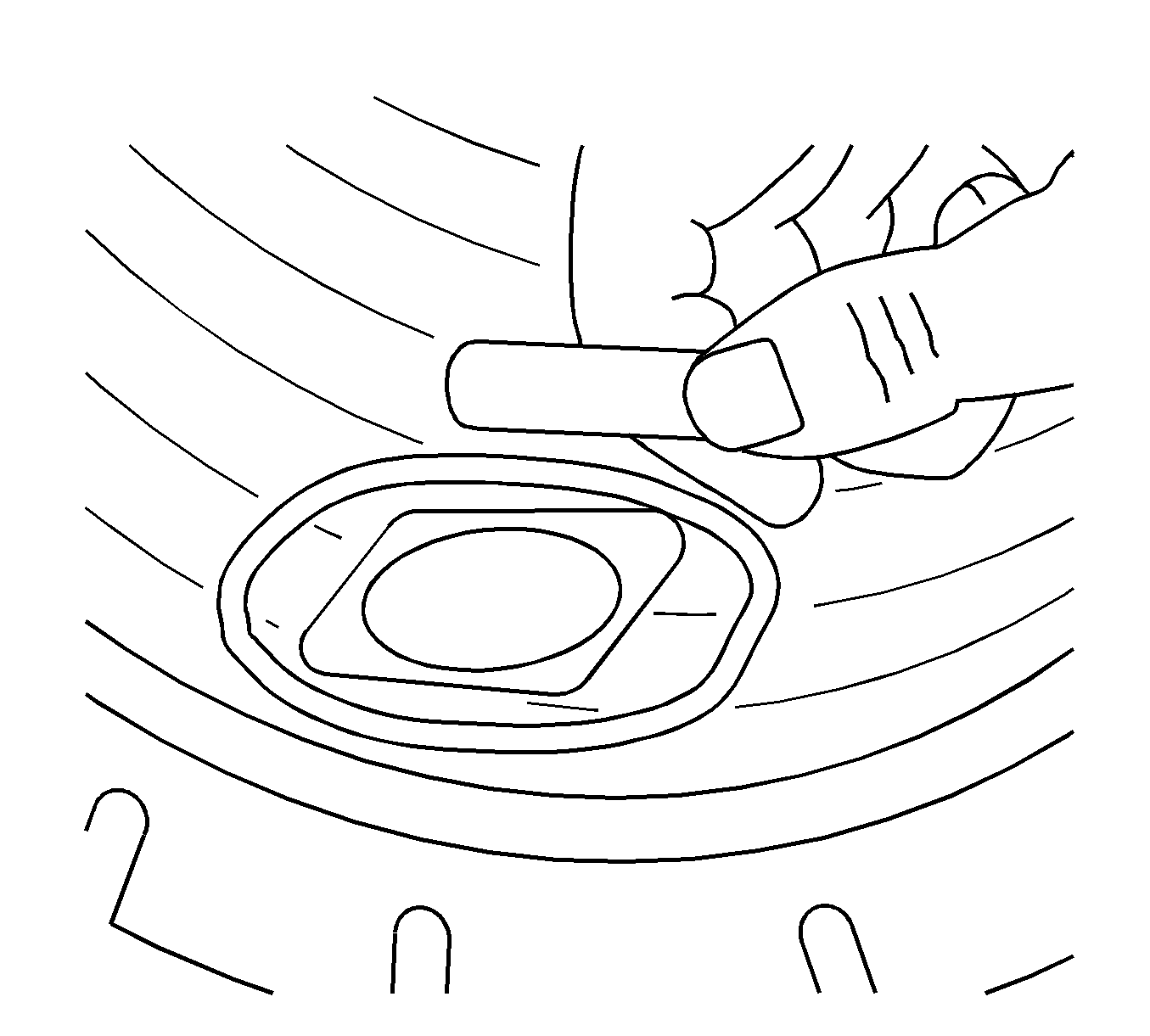

    Fig 1: Outlining Tire Injury Area
    GM1407457Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not install the repair unit in this step.
  1. Center the repair unit over the injury as a reference and outline an area larger than the unit so that buffing will not remove the crayon marks.
  2. Remove the repair unit.
  3. DO NOT overlap previous or multiple repair units.
  4. Consult your repair material supplier for proper repair unit selection.
