Fuse Block - I/P Bottom View

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

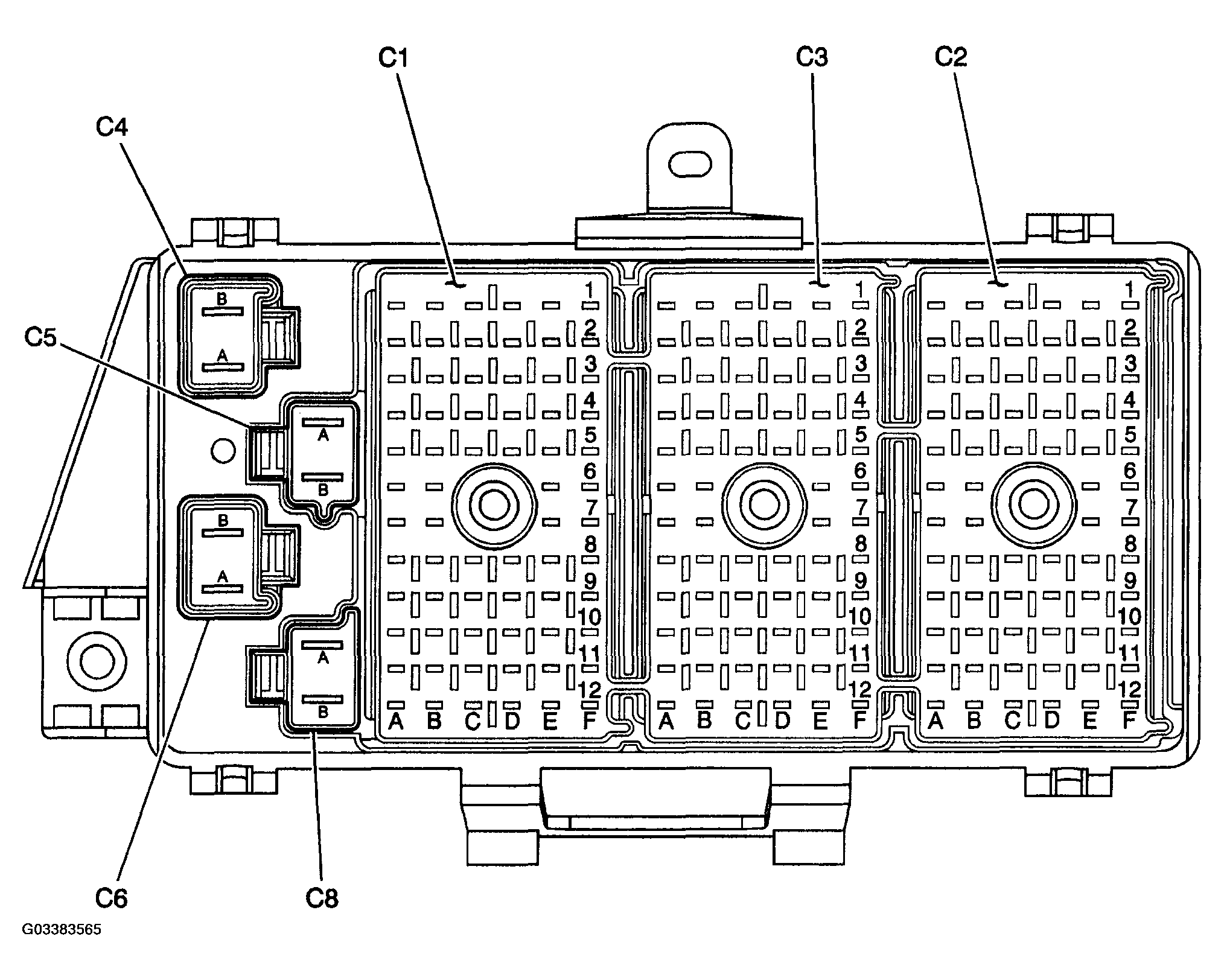

Fig 1: Identifying Fuse Block - I/P Bottom View
G03383565Courtesy of GENERAL MOTORS CORP.
