Removal Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seats. Refer to Seat Replacement - Front Bucket in Seats.
  2. Remove the rear seats. Refer to Seat Replacement - Rear in Seats.
  3. Remove the front carpet retainer. Refer to Carpet Retainer Replacement - Front .
  4. Remove the rear carpet retainer. Refer to Carpet Retainer Replacement - Rear .
  5. Remove the center console trim panels and the center console. Refer to Console Replacement in Instrument Panel, Gages, and Console.

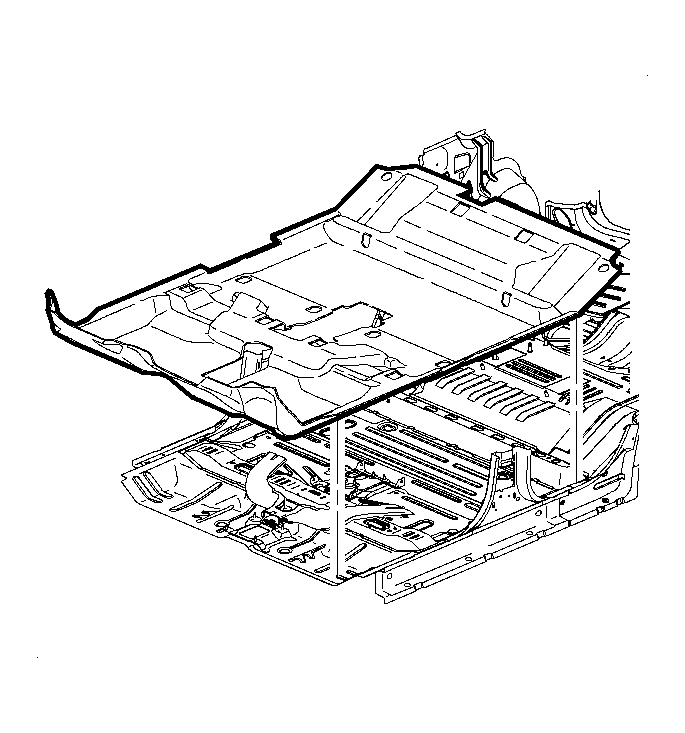

    6. Fig 1: View Of Carpet
    GM930880Courtesy of GENERAL MOTORS CORP.
  6. Remove the floor carpet by pulling the carpet from under the center pillar assemblies and lifting the carpet out of the vehicle.
