Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Mark the upper hood hinge location to the hood using a grease pencil.
  3. Remove the Assist rod from the hood. Refer to ASSIST ROD REPLACEMENT - HOOD
  4. Remove the hood hinge to hood bolts, with an assistant.
  5. Remove the hood from the vehicle, with an assistant.

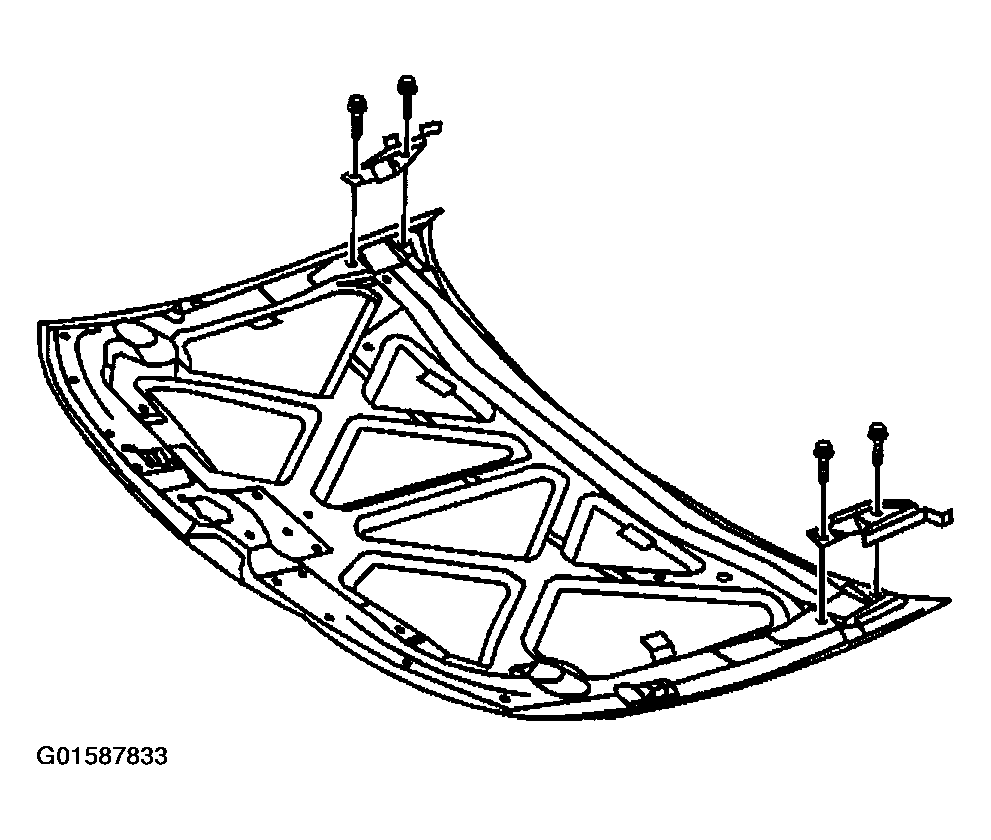

    6. Fig 1: Removing Hood Hinge From Hood
    G01587833Courtesy of GENERAL MOTORS CORP.
