Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the hood latch from the hood latch support bracket. Refer to HOOD LATCH REPLACEMENT  .
  3. Remove the front bumper fascia bracket from the hood latch support. Refer to FASCIA BRACKET REPLACEMENT - FRONT BUMPER in Bumpers.
  4. Remove the bolts from the hood latch support bracket at the upper tie bar.

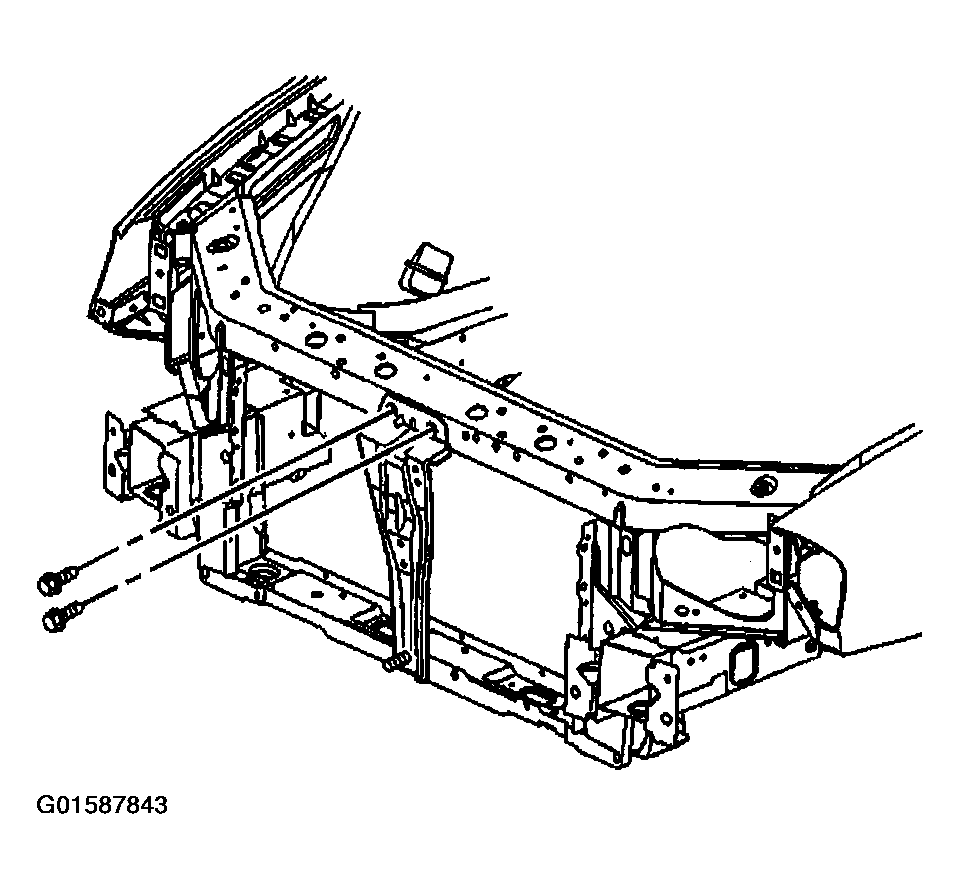

    5. Fig 1: Removing Bolts From Hood Latch Support Bracket At Upper Tie Bar
    G01587843Courtesy of GENERAL MOTORS CORP.
  5. Remove the nut from the hood latch support bracket at the lower tie bar.
  6. Remove the hood latch support bracket from the vehicle.

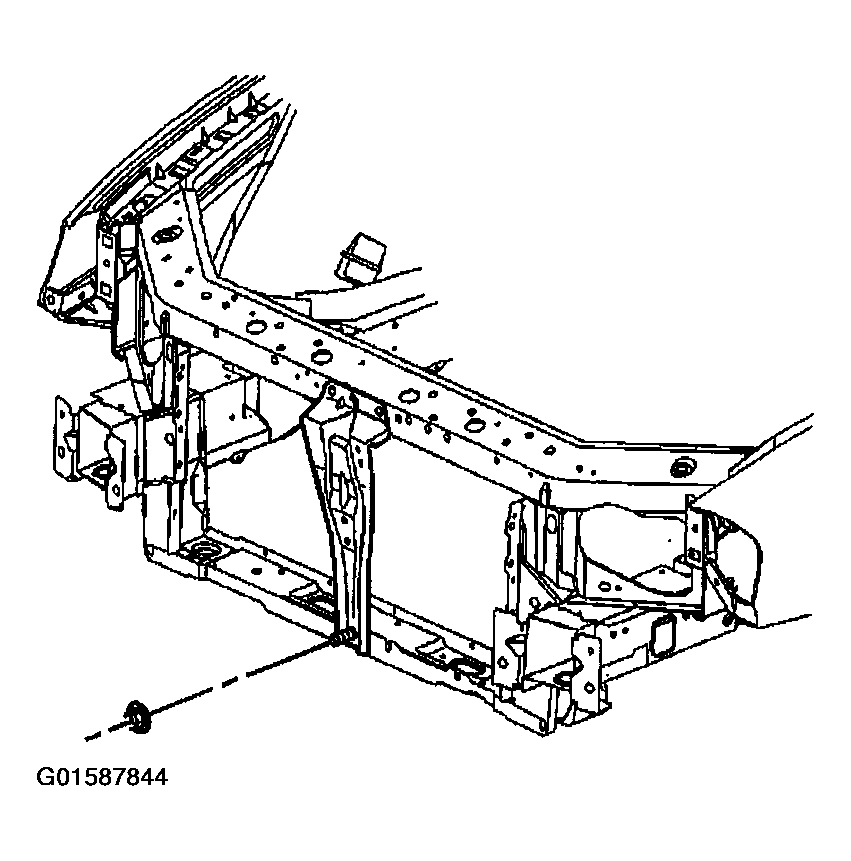

    7. Fig 2: Removing Nut From Hood Latch Support Bracket At Lower Tie Bar
    G01587844Courtesy of GENERAL MOTORS CORP.
