Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the hood latch release cable to the hood latch.

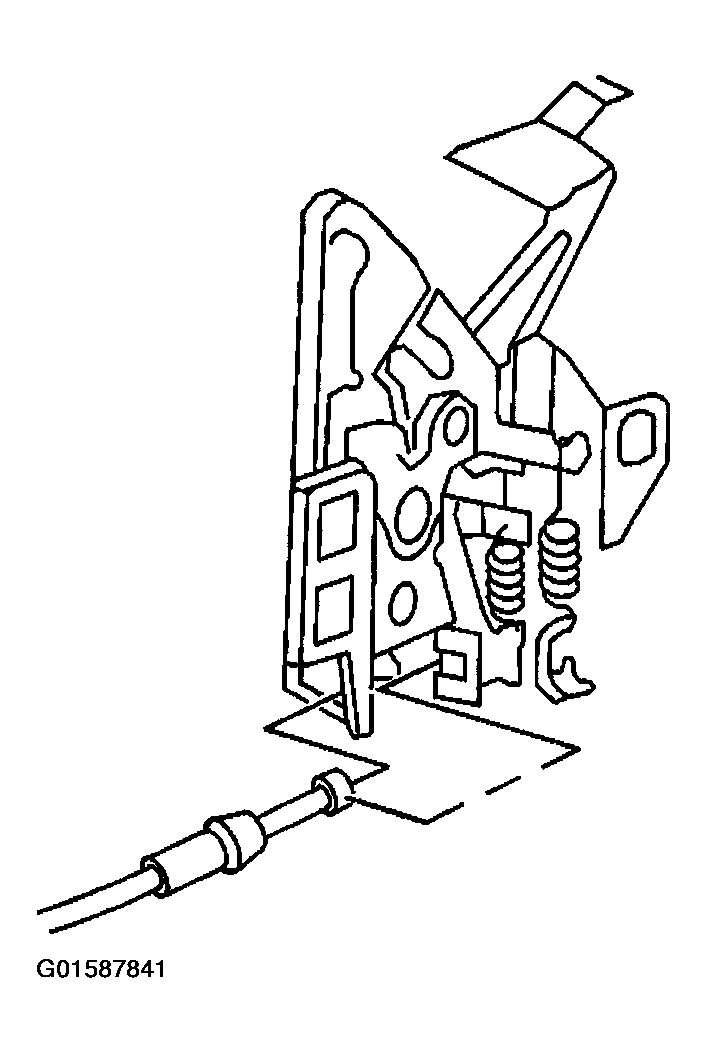

    2. Fig 1: Connecting Hood Latch Release Cable To Hood Latch
    G01587841Courtesy of GENERAL MOTORS CORP.
  2. Position the hood latch to the marks on the hood latch support bracket.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the hood latch to center support bracket bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

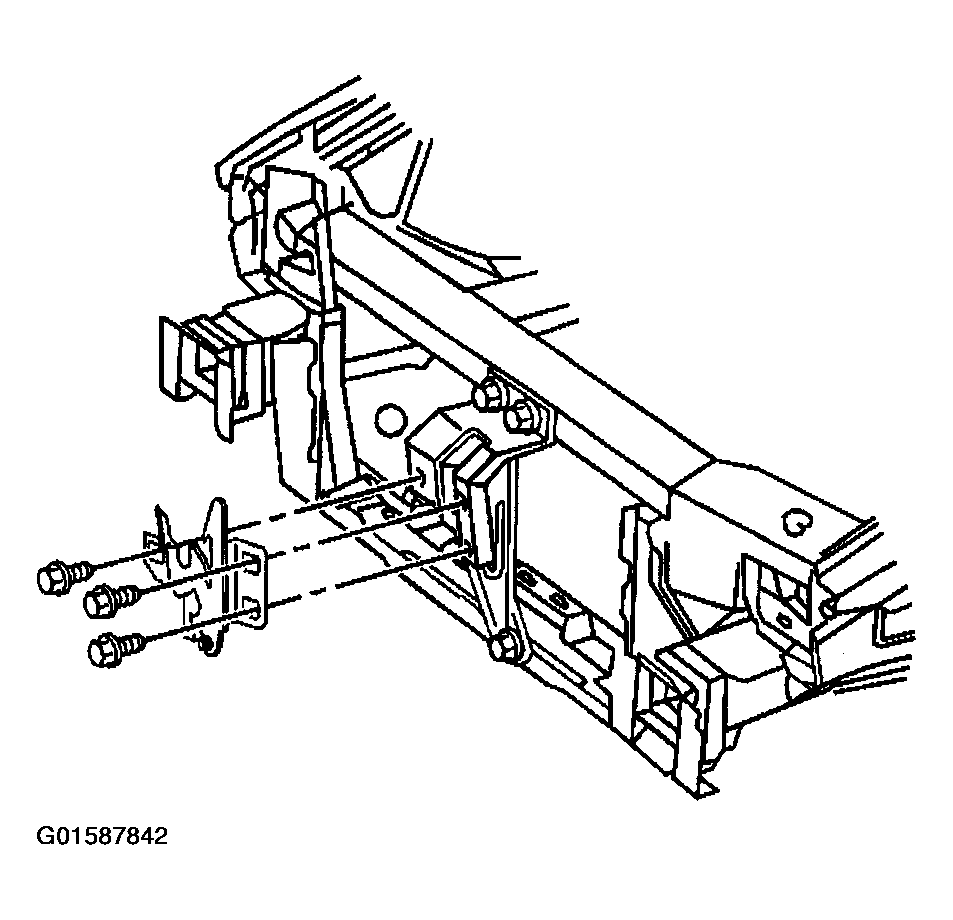

    4. Fig 2: Installing Hood Latch To Hood Latch Support Bracket
    G01587842Courtesy of GENERAL MOTORS CORP.
  4. Adjust the hood, as required. Refer to HOOD ADJUSTMENT  .
  5. Close the hood.
