Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the hood hinge to the fender.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

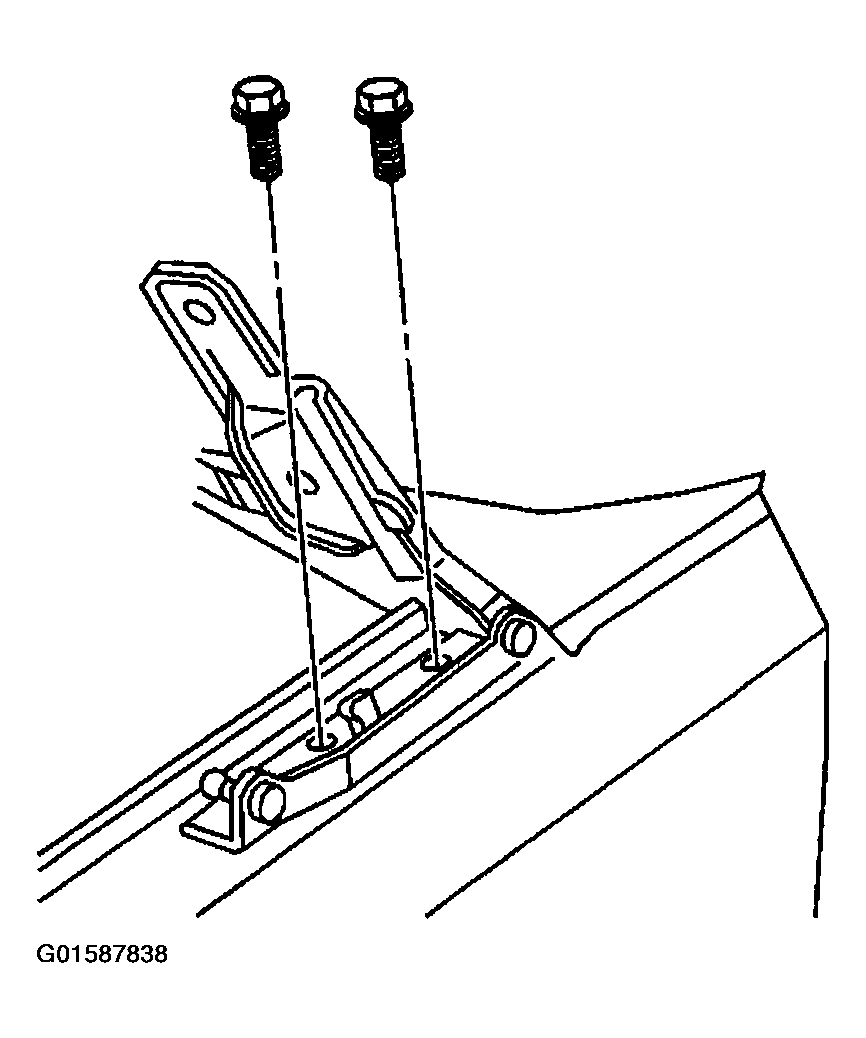

    2. Fig 1: Installing Hood Hinge Fender Bolts
    G01587838Courtesy of GENERAL MOTORS CORP.
  2. Install the hood hinge to fender bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the hood. Refer to HOOD REPLACEMENT  .
  4. Install the hood assist rod. Refer to ASSIST ROD REPLACEMENT - HOOD  .
  5. Install the hood rear side seal to the hood. Refer to SEAL REPLACEMENT - HOOD REAR SIDE  .
  6. Adjust the hood, as required. Refer to HOOD ADJUSTMENT  .
