Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 39822 Wiper Arm Puller. See Special Tools and Equipment .

Turn the ignition ON.
Turn the wiper switch to DELAY.
Turn the ignition OFF when the wiper arms are paused at the bottom of the wipe pattern.
Disconnect the washer hose from the wiper arm.
Remove the wiper arm nut cover.

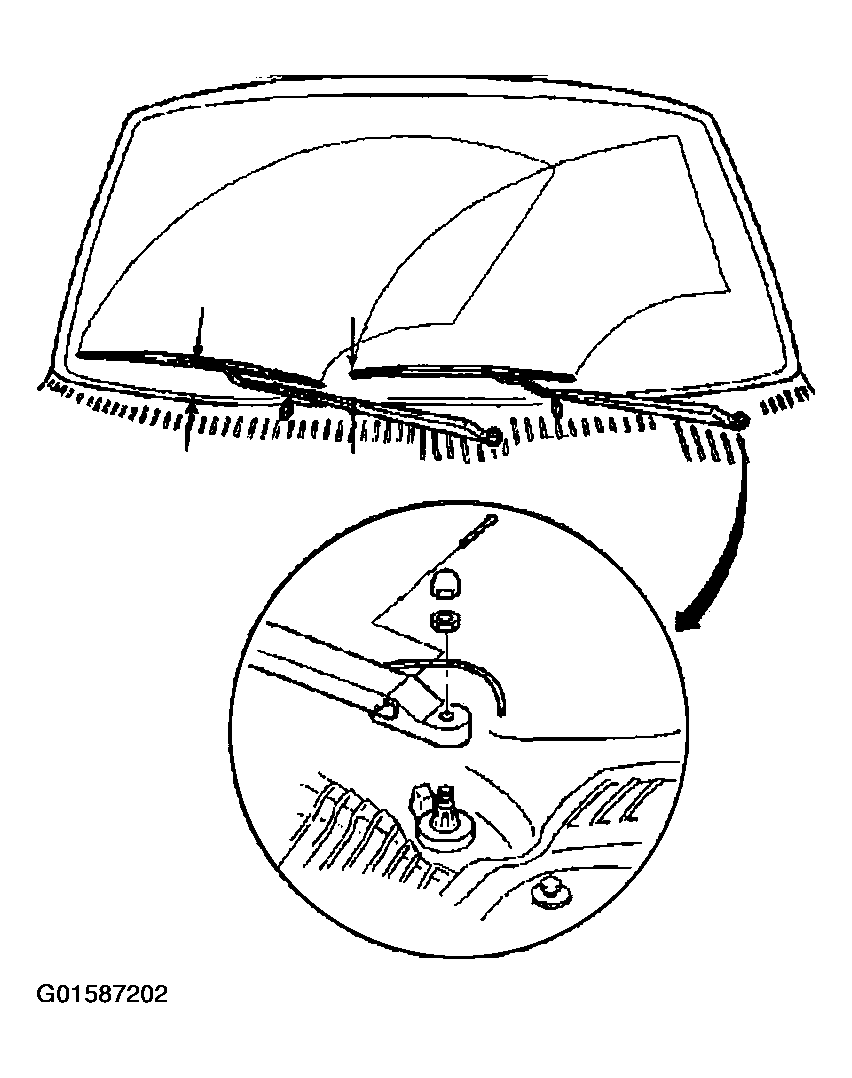

Fig 1: Removing Wiper Arm, Nut, Cover & Washer Hose
Courtesy of GENERAL MOTORS CORP.
Remove the wiper arm nut.
Using the J 39822, remove the wiper arm from the wiper transmission.
