Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb.
Install the side rail lamp socket to the base plate by sliding on.

Fig 1: Installing Side Rail Lamp Bulb
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the side rail lamp.

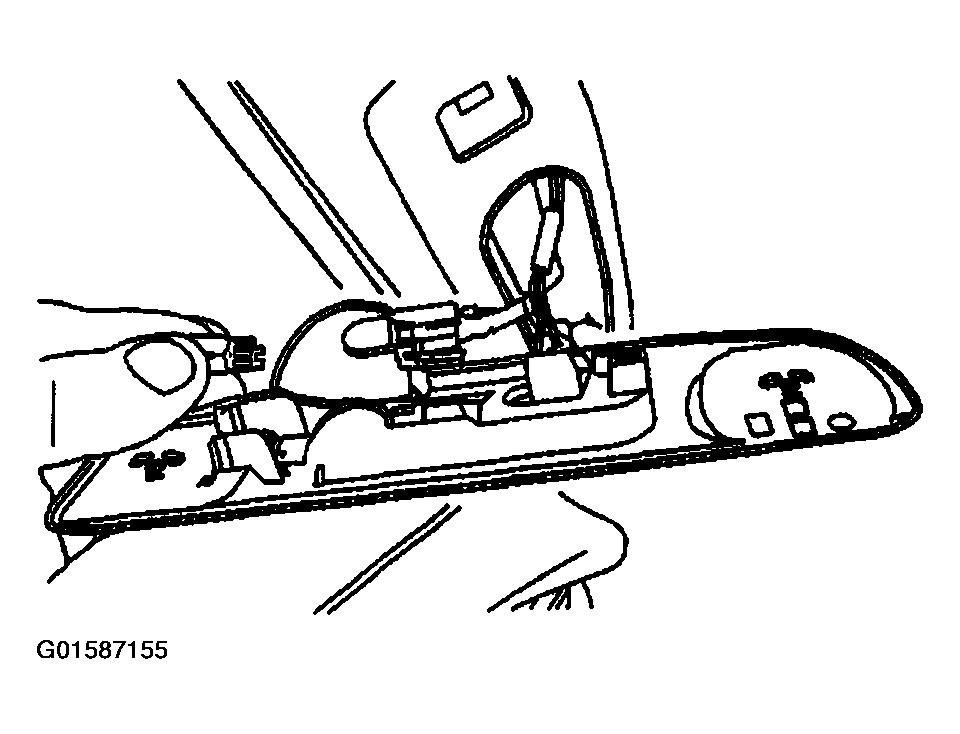

Fig 2: Installing Side Rail Lamp Base Plate
Courtesy of GENERAL MOTORS CORP.
Align the side rail lamp base plate to the plastic retainers.

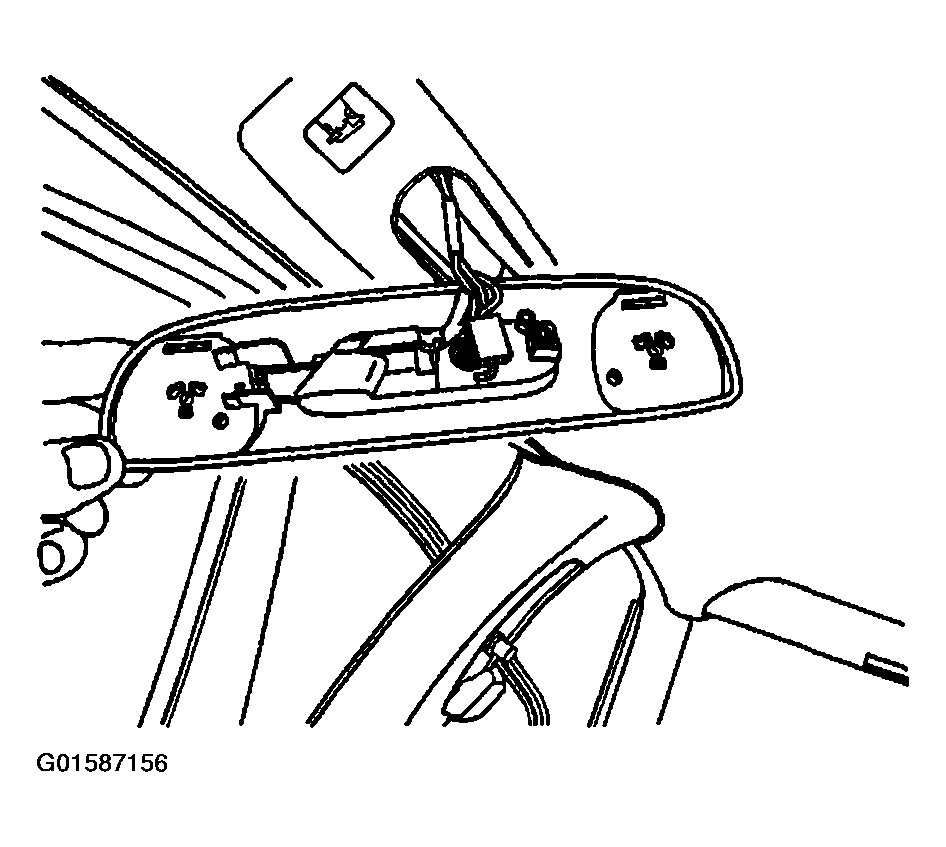

Fig 3: Aligning Side Rail Lamp Base Plate To Plastic Retainers
Courtesy of GENERAL MOTORS CORP.
Position the side rail lamp assist handle to the base plate and the plastic retainers.

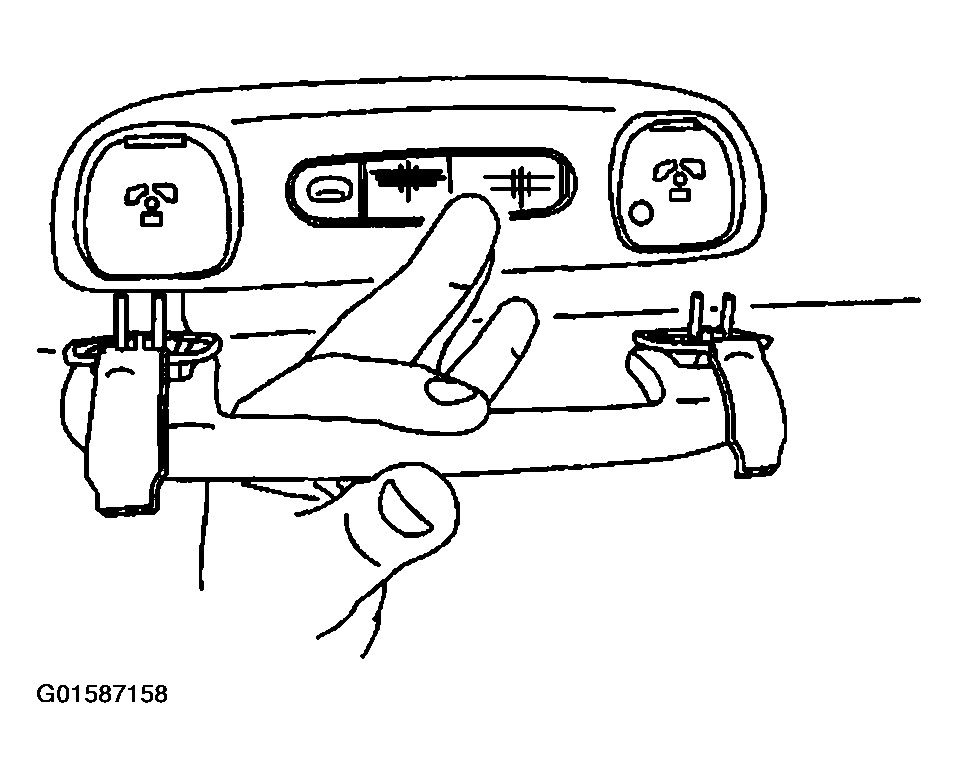

Fig 4: Positioning Side Rail Lamp Assist Handle To Base Plate
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the side rail lamp assist handle screws.
Tighten

Tighten the side rail lamp assist handle screws to 2 N.m (18 lb in).

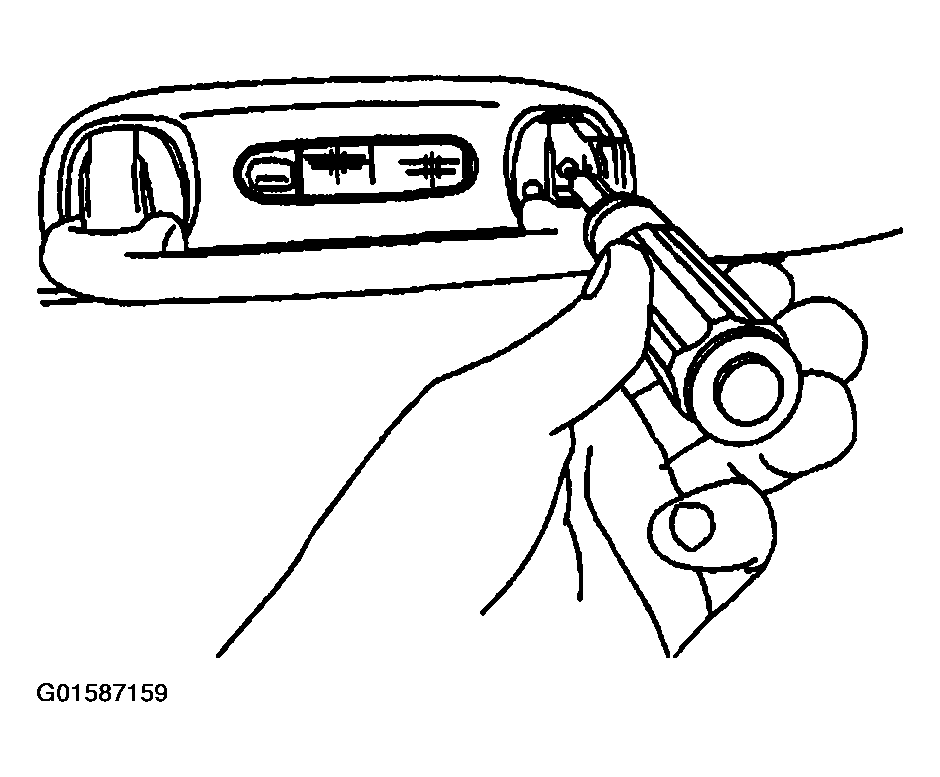

Fig 5: Installing Side Rail Lamp Assist Handle Screws
Courtesy of GENERAL MOTORS CORP.
Close the assist handle covers pressing into place until fully seated.
