Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the socket.
  2. Press the socket into the housing. Rotate the socket counterclockwise.

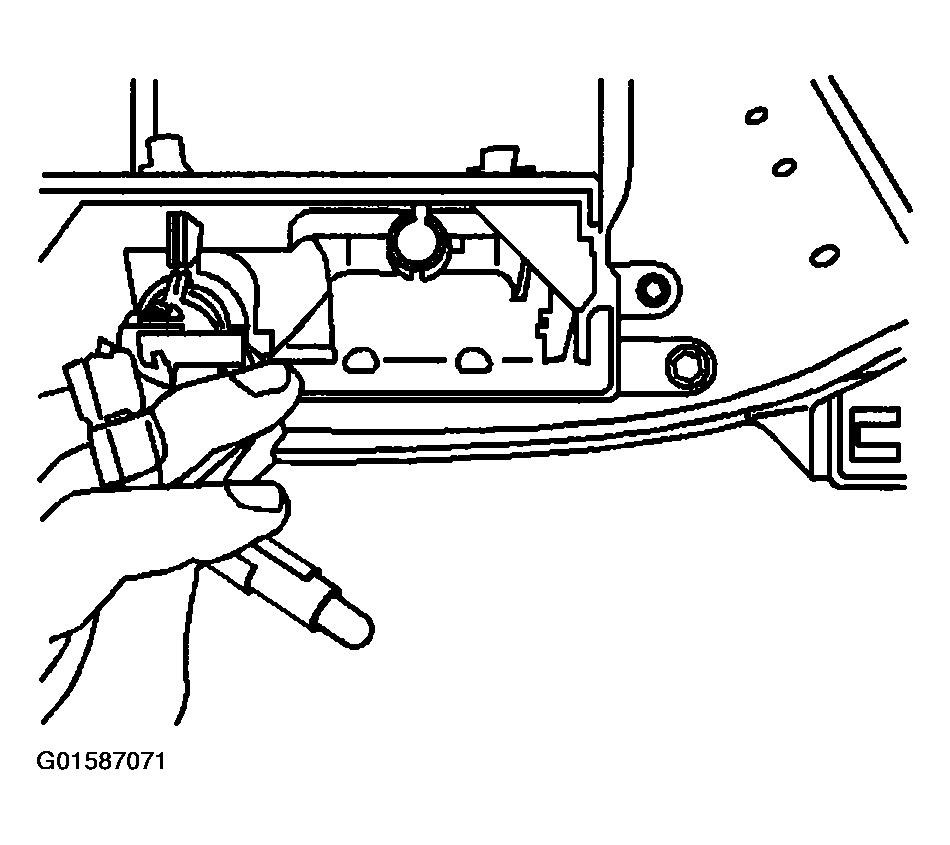

    Fig 1: Installing Bulb Housing Into Ashtray Frame
    G01587071Courtesy of GENERAL MOTORS CORP.
  3. Close the ashtray.
