Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the coat hook, if required. Refer to Coat Hook Replacement   .
  2. Remove the rear window lower molding. Refer to Molding Replacement-Rear Window Lower   .
  3. Remove the quarter panel trim screws.
  4. Remove the lower seat belt anchor bolt in order to guide the seat belt through the trim panel.
  5. Remove the quarter panel.

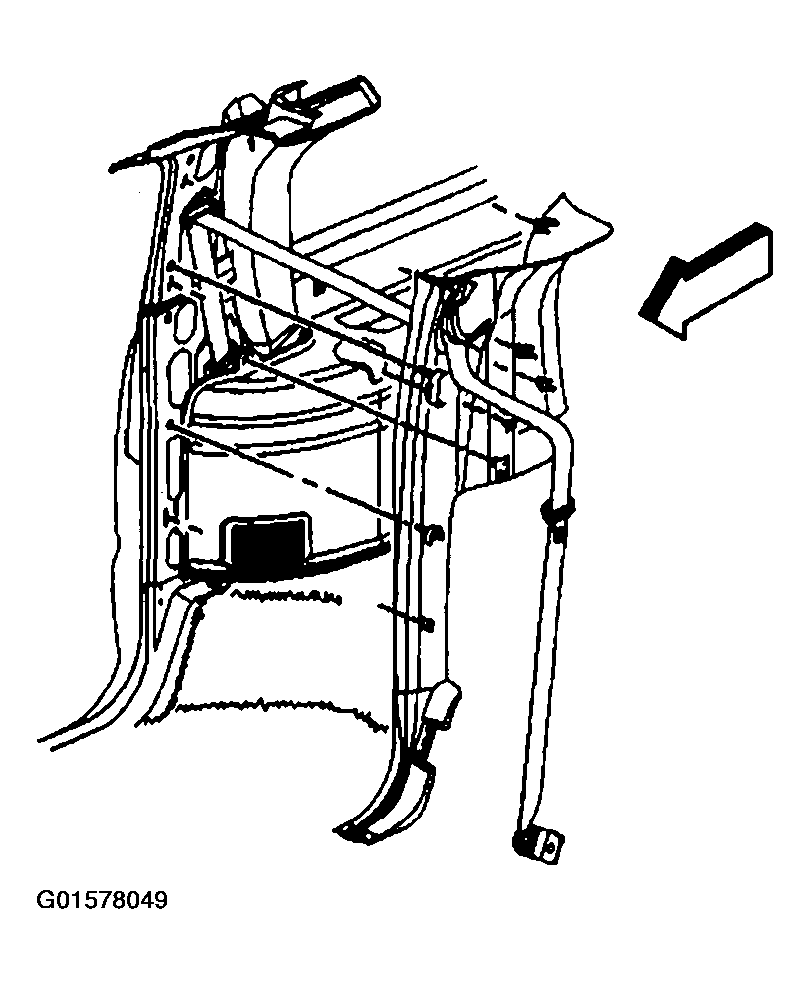

    Fig 1: Rear Quarter Trim Panel (Crew Cab)
    G01578049Courtesy of GENERAL MOTORS CORP.
