Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.

Raise the seat.
Remove the rivets retaining the lock assembly to the tool storage compartment.
Remove the lock assembly from the vehicle.

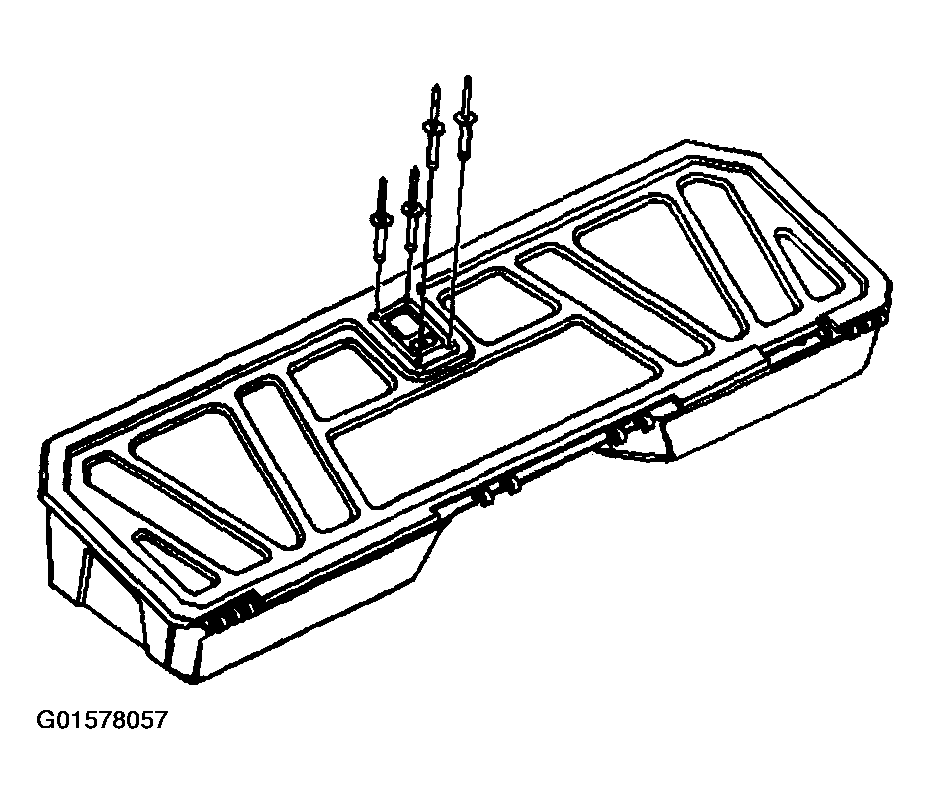

Fig 1: Tool Storage Compartment Lock (PRO)
Courtesy of GENERAL MOTORS CORP.
