Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the brackets to the vehicle and hand tighten the nuts.
  2. Install the tool storage compartment. Refer to Tool Storage Compartment Replacement (PRO)   .
    NOTE: Refer to FASTENER NOTICE .
  3. Tighten the nuts that retain the tool storage compartment brackets (1), (2) to the seat riser studs.

    Tighten

    Tighten the nuts to 50 N.m (36 lb ft).

  4. Install the rear seat hinge filler panel cover and plastic push pins.

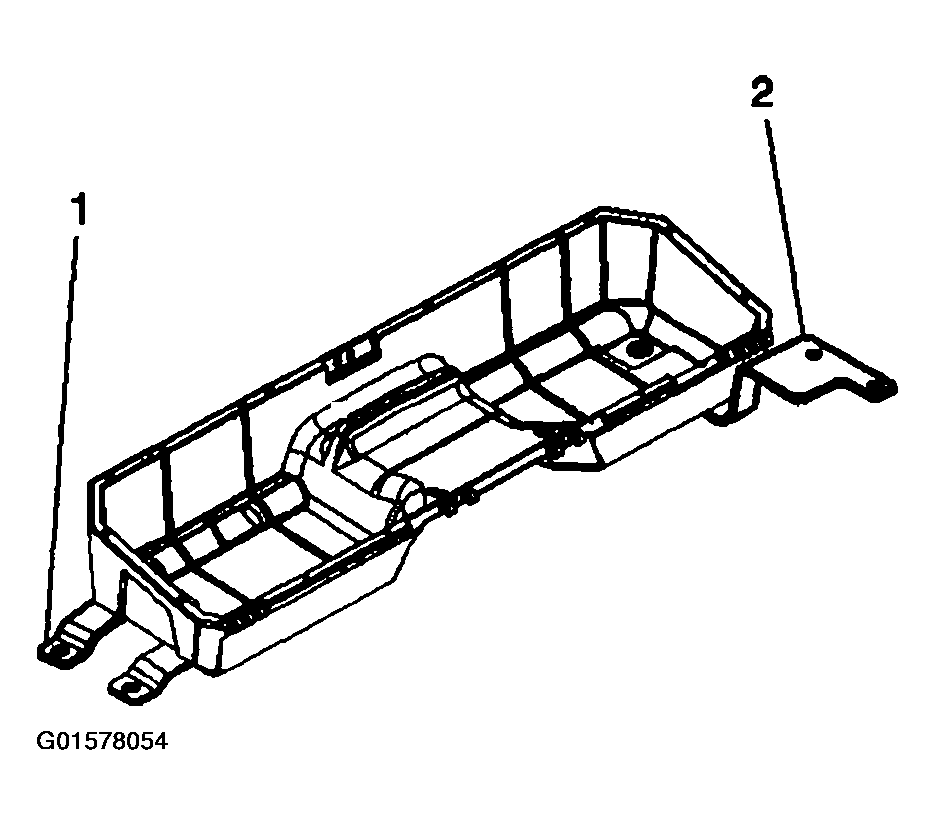

    Fig 1: Tool Storage Compartment Bracket (PRO)
    G01578054Courtesy of GENERAL MOTORS CORP.
