Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the aid of an assistant, install the headliner to the vehicle.
  2. Install the rear window into the vehicle, if removed. Refer to REAR WINDOW REPLACEMENT (PICKUP)
  3. Install the assist handles, if equipped. Refer to Assist Handle Replacement-Front   .
  4. Install the interior dome lamp. Refer to DOME LAMP REPLACEMENT .

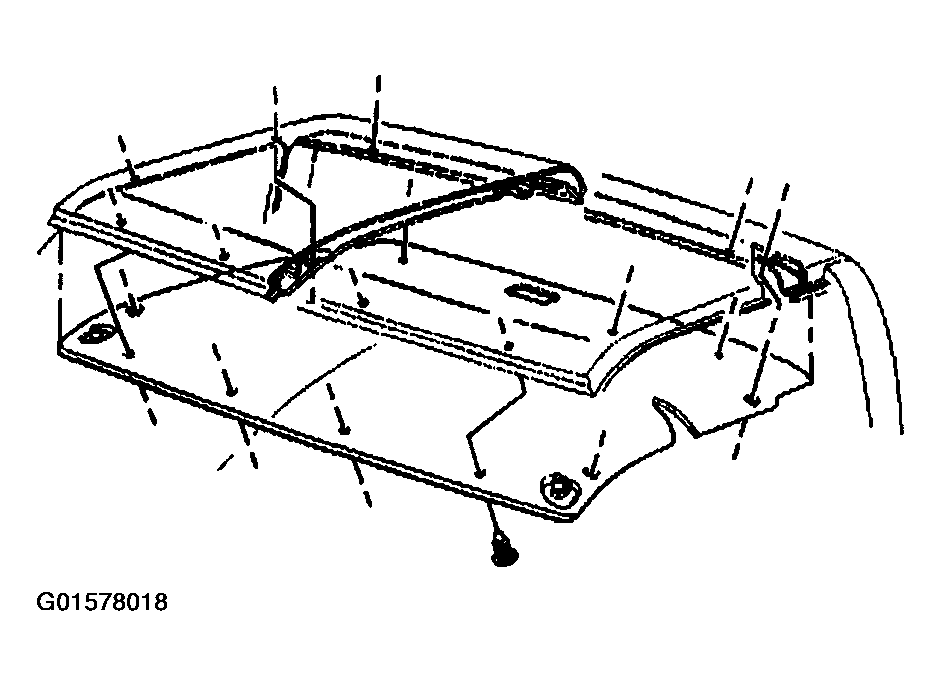

    Fig 1: Installing Headliner
    G01578018Courtesy of GENERAL MOTORS CORP.
  5. Install the rear coat hook, if equipped. Refer to Coat Hook Replacement   .
  6. Install both front sunshades. Refer to Sunshade Replacement  .
  7. Install the DVD player, if equipped. Refer to DVD PLAYER REPLACEMENT .
  8. Install the overhead console, if equipped. Refer to Console Replacement-Overhead   .
  9. Install the rear quarter trim panels, if needed. Refer to Trim Panel Replacement-Rear Quarter (Regular Cab)   or Trim Panel Replacement-Rear Quarter (Extended Cab)   or Trim Panel Replacement-Rear Quarter (Crew Cab)   .
    IMPORTANT: Ensure that all of the wire harness retainers in the I/P and the windshield pillar are all pressed into place in order to prevent ratting during driving.
  10. Connect the headliner electrical connector to the junction block located next to the clutch or brake pedal.
  11. Connect the electrical connectors to the drivers side accessory housing.
  12. Install the hinge pillar trim. Refer to Trim Panel Replacement-Hinge Pillar   .
  13. Install the I/P trim panel. Refer to TRIM PANEL REPLACEMENT-INSTRUMENT PANEL (I/P) UPPER .
    Fig 2: Connecting Electrical Connectors To Drivers Side Accessory Housing
    G01578019Courtesy of GENERAL MOTORS CORP.
