Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood link assembly (6) to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolt (5) holding the hood link assembly to the fender.

    Tighten

    Tighten the link assembly to the fender bolt to 25 N.m (18 lb ft).

  3. Install the fender bolt (7) holding the hood link assembly to the hood hinge.

    Tighten

    Tighten the hinge bolts to 25 N.m (18 lb ft).

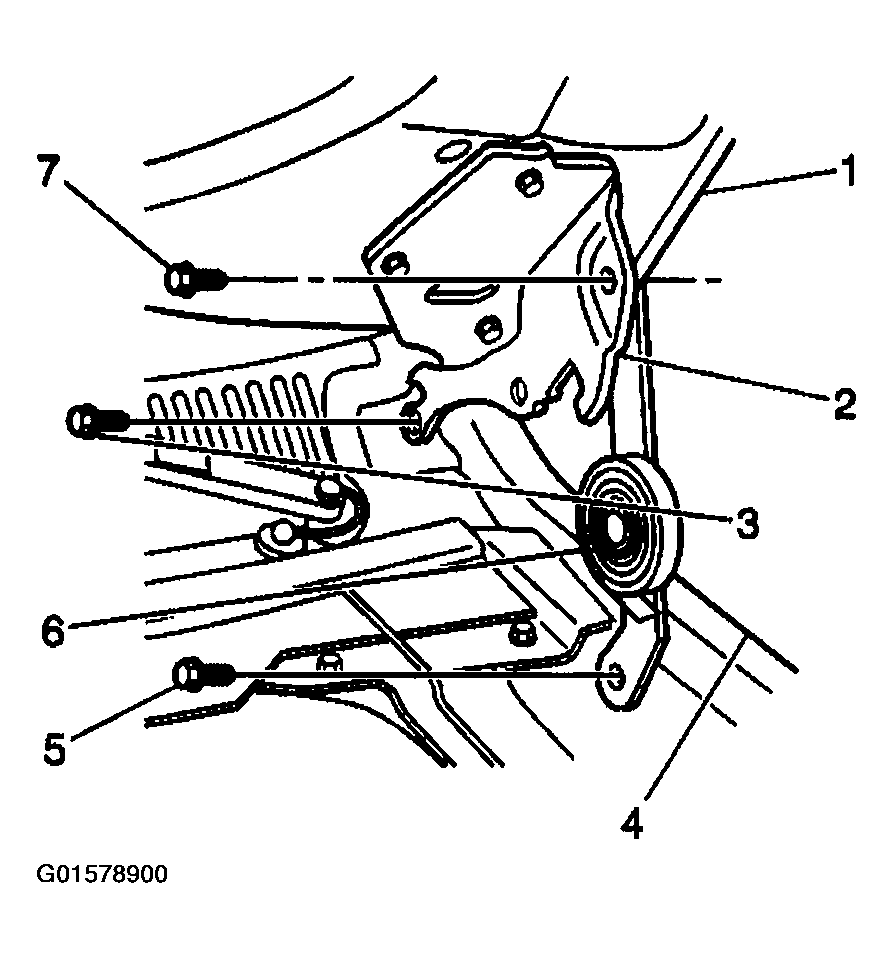

    Fig 1: Installing Hood Link
    G01578900Courtesy of GENERAL MOTORS CORP.
