Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the socket.

Fig 1: Installing Underhood Lamp Bulb To Socket
Courtesy of GENERAL MOTORS CORP.
Install the lens cover.

Fig 2: Installing Underhood Lamp Lens Cover
Courtesy of GENERAL MOTORS CORP.
Install the underhood lamp to the hood.
Connect the in-line electrical connector.

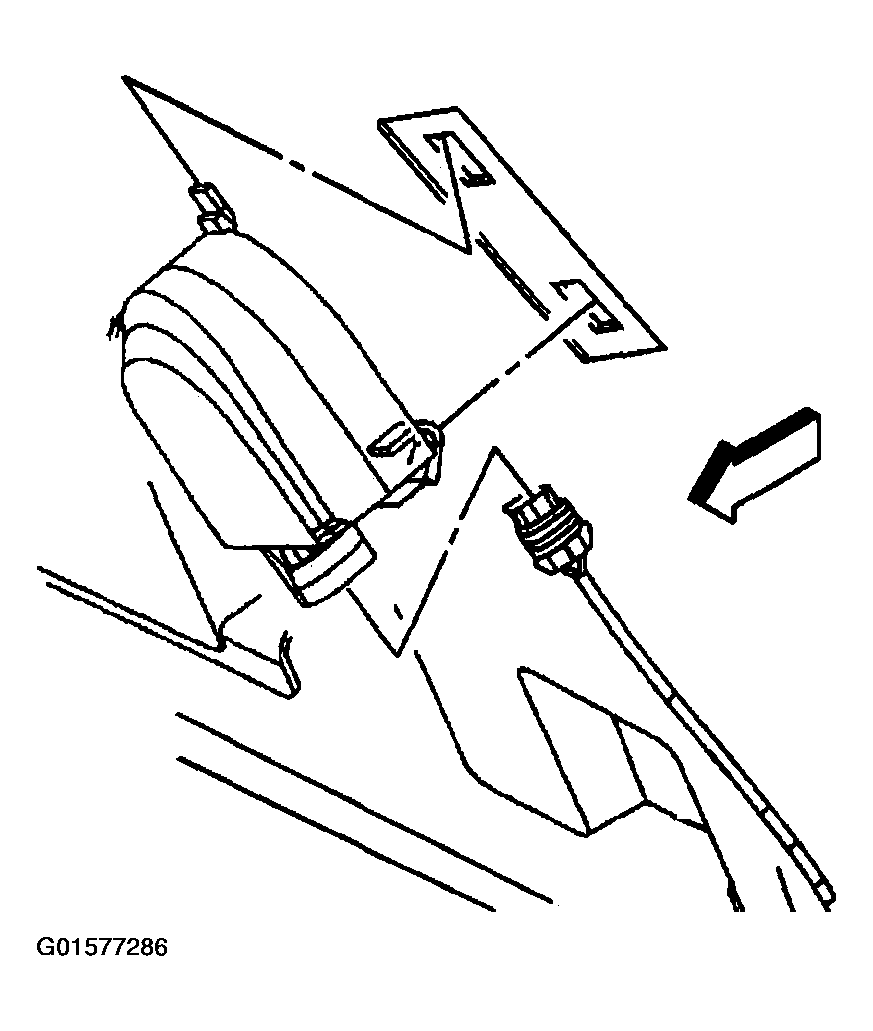

Fig 3: Installing Underhood Lamp To Hood
Courtesy of GENERAL MOTORS CORP.
