Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

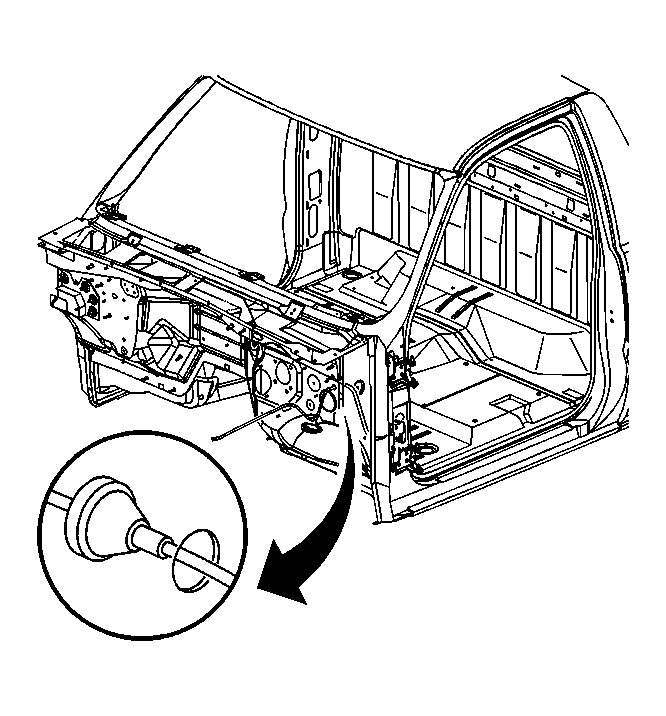

Fig 1: Cowl Hole & Cable

Courtesy of GENERAL MOTORS CORP.

Insert and pull the cable toward the front of the vehicle through the hole in the cowl.
Ensure that the grommet is seated.

Fig 2: Hood Release Cable & Latch

Courtesy of GENERAL MOTORS CORP.

Attach the cable end to the latch assembly.

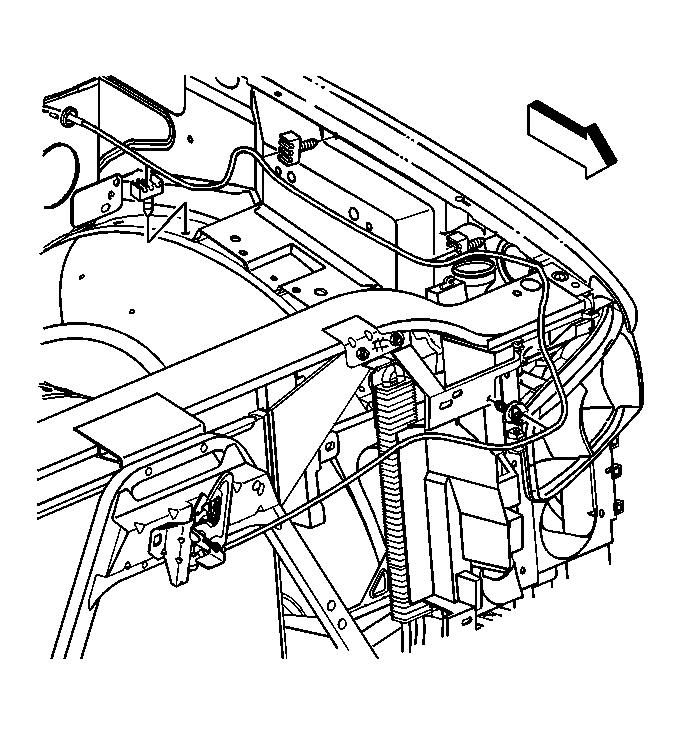

Fig 3: Hood Latch Cable Retainer Clips

Courtesy of GENERAL MOTORS CORP.

Attach the cable to the retainer clips.
Attach the cable end to the cable handle.
Install the radiator air baffle and deflector. Refer to RADIATOR AIR BAFFLE ASSEMBLIES AND DEFLECTORS (SIDE) or RADIATOR AIR BAFFLE ASSEMBLIES AND DEFLECTORS (UPPER) .

Fig 4: Hood Latch Assembly & Cable Under Instrument Panel

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

Attach the cable handle underneath the I/P.
Tighten: Tighten the cable handle nut to 11 N.m (97 lb in).
Install the park brake pedal assembly. Refer to PARK BRAKE PEDAL ASSEMBLY .

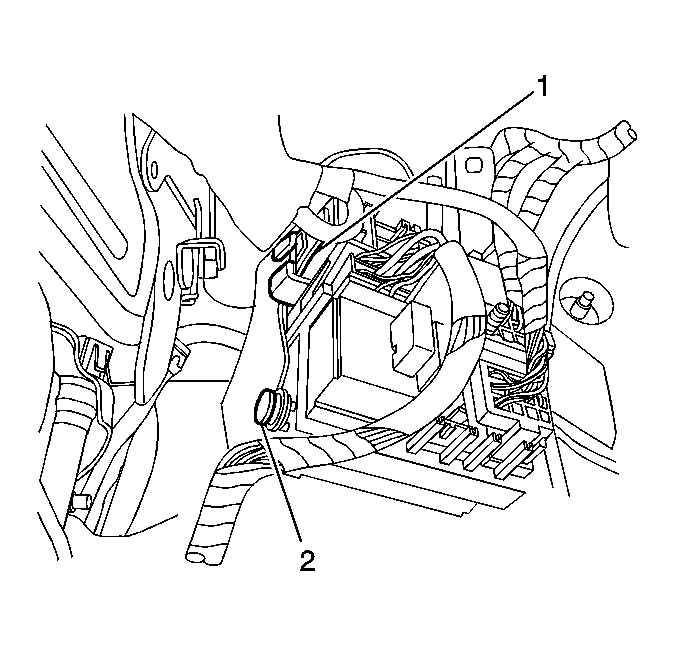

Fig 5: Electrical Center Retaining Clips & Retaining Grooves

Courtesy of GENERAL MOTORS CORP.

Install the electrical center by setting it into the retaining grooves (2), and securing the retaining clips (1) on both sides.

Fig 6: Electrical Center Cover Retaining Nut & Retaining Clips

Courtesy of GENERAL MOTORS CORP.

Install the electrical center cover by securing the retaining clips (1) on both sides.
Install the center retaining nut.
Tighten: Tighten the center retaining nut to 2.5 N.m (22 lb in).
Install the left hinge pillar trim panel. Refer to TRIM PANEL REPLACEMENT - HINGE PILLAR .
Close the hood.
