Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fender to vehicle.
    2. Fig 1: Rear Left Lower Fender Bolt
    GM401886Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the rear lower fender bolt.

    Tighten:  Tighten the rear lower fender bolt to 25 N.m (18 lb ft).

    3. Fig 2: Left Fender To Radiator Support Bolts & Retainer
    GM349817Courtesy of GENERAL MOTORS CORP.
  3. Install the fender to radiator support bolts and retainer.

    Tighten:  Tighten the radiator support bolts to 25 N.m (18 lb ft).

    4. Fig 3: Grille Ends To Fender Fasteners
    GM370264Courtesy of GENERAL MOTORS CORP.
  4. Connect the left front grille clip to the fender.
    5. Fig 4: Left Fender To Door Hinge Bolts
    GM349818Courtesy of GENERAL MOTORS CORP.
  5. Install the fender to door hinge bolts.

    Tighten:  Tighten the door hinge bolts to 25 N.m (18 lb ft).

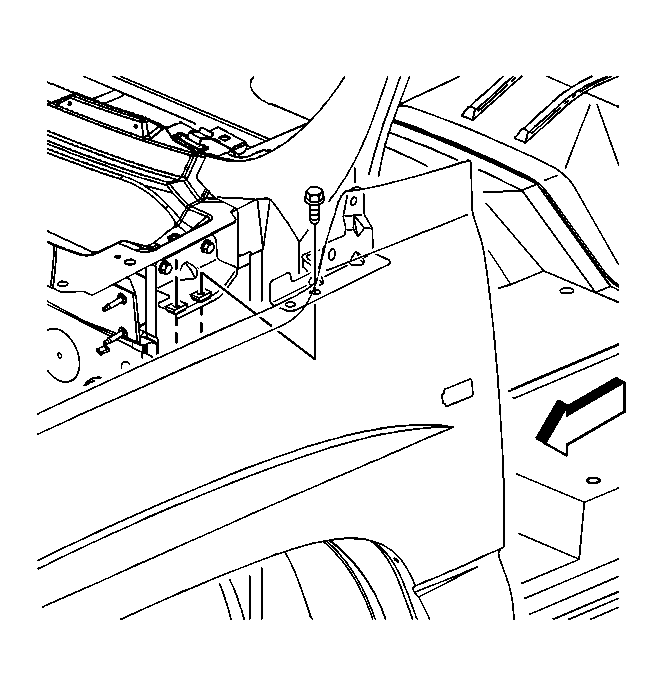

    6. Fig 5: Fender To Upper Cowl Bracket & Bolt
    GM401888Courtesy of GENERAL MOTORS CORP.
  6. Install the fender to upper cowl bracket bolt.

    Tighten:  Tighten the upper cowl bracket bolts to 25 N.m (18 lb ft).

    7. Fig 6: View Of Wheelhouse Panel & Push-In Retainers
    GM401885Courtesy of GENERAL MOTORS CORP.
  7. Install the push-in retainers (2) in order to attach the wheelhouse panel (1) to the fender (3).
  8. Install the underhood electrical center. Refer to UNDERHOOD ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT .
    9. Fig 7: Windshield Washer Hose & Clips
    GM369708Courtesy of GENERAL MOTORS CORP.
  9. Connect the windshield washer hose to the clips on the fender.
    10. Fig 8: Hood Latch Cable Retainer Clips
    GM349786Courtesy of GENERAL MOTORS CORP.
  10. Connect the hood latch release cable to the clips.
  11. Install the battery tray. Refer to BATTERY TRAY REPLACEMENT .

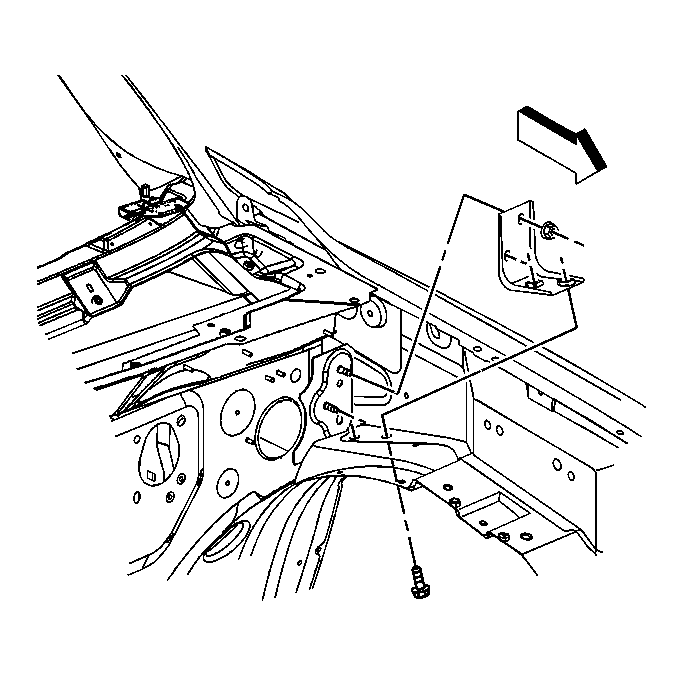

    12. Fig 9: Wheelhouse Panel Bracket
    GM401869Courtesy of GENERAL MOTORS CORP.
  12. Install the wheelhouse panel bracket.

    Tighten:  Tighten the wheelhouse bracket nuts and bolts to 25 N.m (18 lb ft).

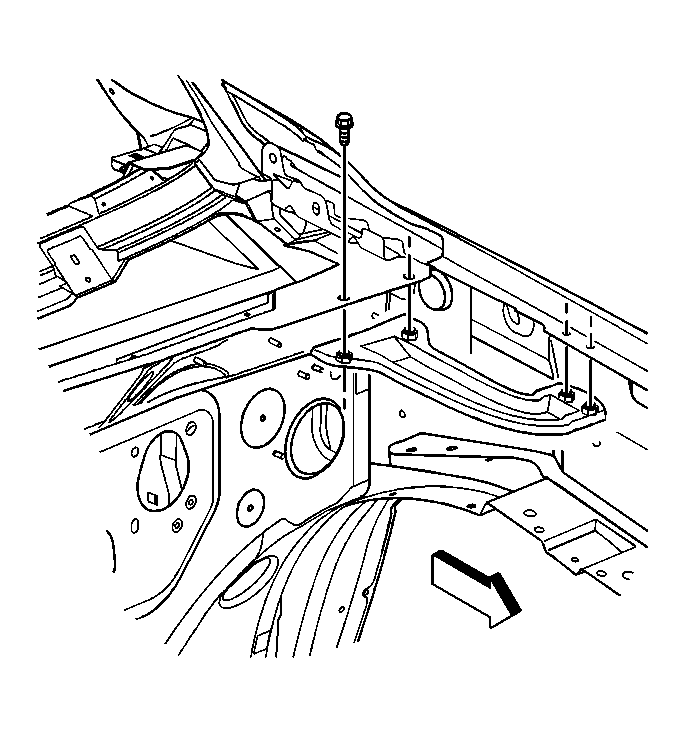

    13. Fig 10: Left Fender To Cowl Support Brace
    GM349812Courtesy of GENERAL MOTORS CORP.
  13. Install the left fender to cowl support brace.

    Tighten:  Tighten the cowl support brace bolts to 9 N.m (80 lb in).

  14. Install the left hood spring assembly.

    Tighten:  Tighten the hood spring bolt to 25 N.m (18 lb ft).

  15. Install the hood. Refer to Hood Replacement .
    16. Fig 11: View Of Cowl Vent Grille Panel Outboard Section
    GM334315Courtesy of GENERAL MOTORS CORP.
  16. Install the left outboard cowl vent grille trim piece.
  17. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE (SINGLE BATTERY) or BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE (AUXILIARY BATTERY) .
